XM-ZH-414
8ch/16ch 5M POE Extension H.265 NVR Board · NVR Board
- Maker:
- Xiongmai
- SoC:
- HI3536DV100
- Listed:
- 2019
Xiongmai
8ch/16ch 5M POE Extension H.265 NVR Board
Features
- Support Xiongmai intelligent front-end devices with human and face detection
- Requires external PoE expansion board, which supplies power and network connection
- Support HDMI, VGA output, 2K HD output
- Support ONVIF, connects third-party devices
- Works with web client, CMS, MYEYE central management platform; SDK available
- Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
- Powerful network services (DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, alarm center, etc.)
- Remote access with built-in domain name service (ARSP), one-click remote monitoring.
| Model | NBD8008RA-UL(EP) / NBD8016RA-UL(EP) |
|---|---|
| System | Main processor / Hi3536D |
| Operating system | Embedded Linux operating system |
| System resources | Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-user network operation, USB backup |
| Interface | User interface / 16-bit true-color graphical menu, mouse operation |
| Display | 1/4/8 split screen / 1/4/8/16 split screen |
| Video | Video input (IP) / 8*5M/4*5M / 16*5M (15fps)/8*5M/16*1080P |
| Incoming bandwidth | 64Mbps |
| Forwarding bandwidth | 36Mbps |
| Video decoding | H.265/H.264 |
| Monitoring quality | Max 2560*1440 |
| Playback quality | 5M / 5M/1080P |
| Decoding capacity | 1*5M / 5M/2*1080P |
| VR | Not supported |
| Human and face detection | Supported (requires Xiongmai front-end cameras) |
| Audio | Standard / G.711A |
| Intercom | Not supported |
| Playback | Recording mode / manual > alarm > motion detection > schedule |
| Local playback | 1*5M / 5M/2*1080P |
| Recording search | Search by time, calendar, event, channel |
| Video storage | HDD, network |
| Backup method | Network backup, USB hard drive, USB burner, SATA burner |
| Interface | Video output / 1ch VGA, 1ch HDMI HD output |
| Audio I/O | 0/1 (3.5mm jack) |
| Alarm I/O | 0/0 |
| Network interface | Network port and 8 PoE ports via PoE expansion board / Network port and 16 PoE ports via PoE expansion board |
| USB port | 2*USB2.0 ports (1 USB expansion port reserved) |
| HDD interface | 1 SATA (up to 8TB per disk) |
| ESATA | None |
| Serial interface | None |
| ONVIF | Supported |
| Power supply | 12V power input from PoE expansion board / Power consumption |
| Operating environment | Temperature: 0℃~+55℃, humidity: 10%~90% RH, atmospheric pressure: 86kPa~106kPa |
| Dimensions | 118mm*69.5mm |
| Weight | Approx. 63g |
Photos
Files

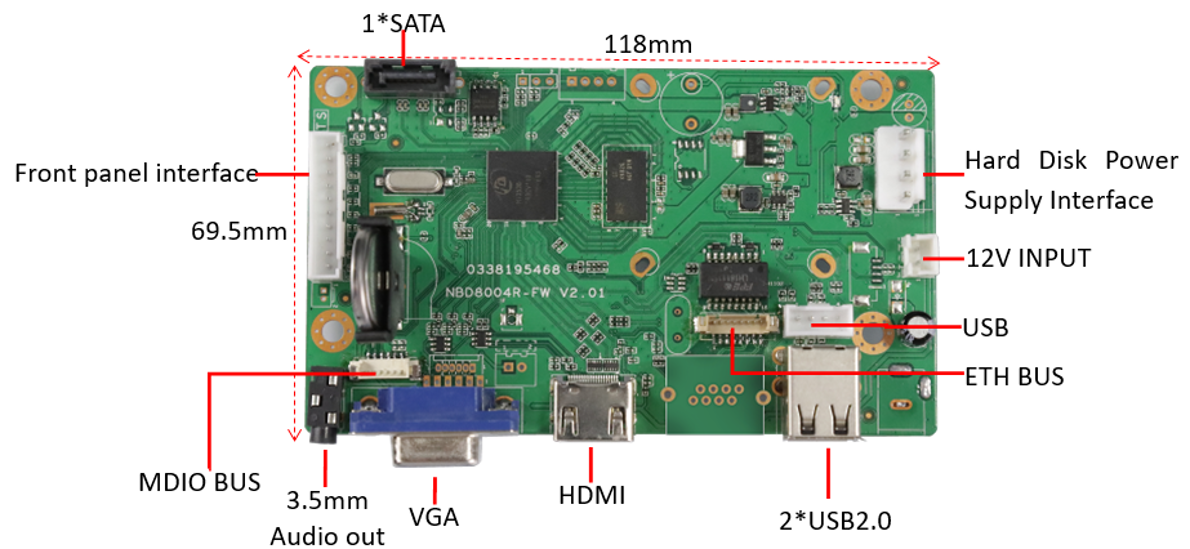

- interface-1.png (pinout, 727 KB)
