XM-ZH-440
16ch 4K H.265 NVR Board · NVR Board
- Maker:
- Xiongmai
- SoC:
- HI3536CV100
- Listed:
- 2020
Xiongmai
16ch 4K H.265 NVR Board
Features
- Support Xiongmai intelligent front-end devices with human and face detection
- Requires external PoE expansion board, which supplies power and network connection
- Support HDMI, VGA output, 4K HD output
- Support ONVIF, connects third-party devices
- Works with web client, CMS, MYEYE central management platform; SDK available
- Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
- Powerful network services (DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, alarm center, etc.)
- Remote access with built-in domain name service (ARSP), one-click remote monitoring
- Support GB28181 for third-party platforms.
| Model | NBD8016RA-K(EP) |
|---|---|
| System | Main processor / Hi3536C |
| Operating system | Embedded Linux operating system |
| System resources | Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-user network operation, USB backup |
| Interface | User interface / 16-bit true-color graphical menu, mouse operation |
| Display | 1/2/4/6/8/9/16 split screen |
| Video | Video input (IP) / 16*4K (incoming bandwidth 240Mbps, requires Gigabit PoE module) |
| Video decoding | H.265AI/H.265+ (compatible with H.265/H.264) |
| Monitoring quality | Max: 4K |
| Playback quality | 4K/5M/4M/3M/1080P |
| VR function | Not supported |
| Human and face detection | Supported (requires Xiongmai front-end cameras) |
| Audio | Audio compression / G.711A |
| Audio compression | Supported |
| Playback | Recording mode / manual > alarm > motion detection > schedule |
| Local playback (real-time + non-real-time) | 4K（1+2）/5M（2+3）/4M（2+5）/3M（3+6）/1080P（5+9） |
| Recording search | Search by time, calendar, event, channel, face |
| Video storage | HDD, network |
| Backup method | Network backup, USB hard drive, USB burner, SATA burner |
| Interface | Video output / 1ch VGA, 1ch HDMI HD output |
| Audio I/O | 1/1 (3.5mm jack) |
| Alarm I/O | 0/0 |
| Network interface | Network port provided by PoE expansion board |
| USB port | 2*USB2.0 ports (1 USB expansion port reserved, expandable with 3G, WIFI) |
| HDD interface | 2 SATA (up to 14TB per disk) |
| Serial interface | None |
| ONVIF | Supported |
| Power supply | 12V power input from PoE expansion board / Power consumption |
| Operating environment | Temperature: 0℃~+55℃, humidity: 10%~90% RH, atmospheric pressure: 86kPa~106kPa |
| Dimensions | 118mm*69.5mm |
| Weight | Approx. 54g |
Photos
Files

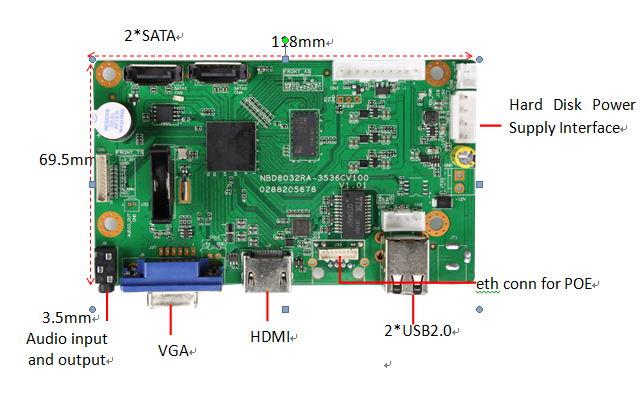

- interface-1.png (pinout, 282 KB)
