XM-ZH-484
10ch 4K POE Extension H.265 NVR Board · NVR Board
- Maker:
- Xiongmai
- Listed:
- 2021
Xiongmai
10ch 4K POE Extension H.265 NVR Board
Features
- Support Xiongmai intelligent front-end devices with human, face and vehicle detection
- Requires external PoE expansion board, which supplies power and network connection
- Support HDMI 4K, VGA 1080P HD output
- Support ONVIF, connects third-party devices
- Works with web client, CMS, MYEYE central management platform; SDK available
- Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
- Powerful network services (DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, alarm center, etc.)
- Remote access with built-in domain name service (ARSP), one-click remote monitoring
- Support GB28181 for third-party platforms.
| Model | NBD80S08S-KL（EP） |
|---|---|
| System | Operating system / Embedded Linux |
| System resources | Simultaneous multi-channel real-time recording, multi-channel real-time playback, multi-user network operation, USB backup |
| Interface | User interface / 16-bit true-color graphical menu, mouse operation |
| Display | 1/2/4/6/9/10 split screen |
| Video | Video input (IP) / 10*4K |
| Video decoding | H.265AI/H.265+ (compatible with H.265/H.264) |
| Monitoring quality | Max:4K |
| Playback quality | 4K/5M/4M/3M/1080P |
| VR | Not supported |
| Human and face detection | Supported (requires Xiongmai front-end cameras) |
| Audio | Standard / G.711A |
| Intercom | Supported |
| Playback | Recording mode / manual > alarm > motion detection > schedule |
| Local playback (real-time + non-real-time) | 4K（1）/5M（1+1）/4M（2）/3M（2+2）/1080P（4+1） |
| Recording search | Search by time, calendar, event, channel, face |
| Video storage | HDD, network, cloud storage |
| Backup method | Network backup, USB hard drive, USB burner, SATA burner |
| Interface | Video output / 1ch HDMI HD output, 1ch VGA output |
| Audio I/O | 1/1 (3.5mm jack) |
| Alarm I/O | 0/0 |
| Network interface | 1*RJ45 10M/100M adaptive Ethernet port |
| USB port | 2*USB2.0 ports (1 USB expansion port reserved) |
| HDD interface | 1 SATA (up to 14TB per disk) |
| ESATA | None |
| Serial interface | None |
| Other | ONVIF / Supported |
| Power supply | 12V power input from PoE expansion board / Power consumption |
| Operating environment | Temperature: 0℃~+55℃, humidity: 10%~90% RH, atmospheric pressure: 86kPa~106kPa |
| Dimensions | 118mm*46mm |
| Weight | Approx. 43g |
Photos
Files

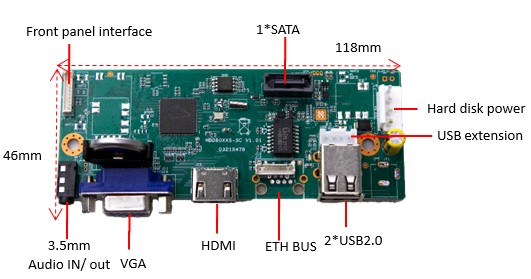

- interface-1.jpg (pinout, 39 KB)
