XPG-53X20PSC-C
2.0M Low illumination CMOS 12V XPOE Camera Module · IP Camera Module
- Maker:
- Xiongmai
- Sensor:
- SC2239
- Listed:
- 2021
Xiongmai
2.0M Low illumination CMOS 12V XPOE Camera Module
Features
- 1080P FHD resolution, the image is more clear and delicate
- Output diagram without delay
- Long transmission distance,up to 50 meters
- Support XPOE , enable OSD by the back-end
- Support XPOE upgrade, version upgrade convenient and efficient
- NTSC&PAL 2 in 1, easy to switch through back-end
- XPOE network port power supply.
| Specifications | XPG-53X20PSC-C |
|---|---|
| ISP | XM330V200 |
| Sensor | 1/2.8 inch SC2239 sensor |
| Signal format | XPOE |
| Video Resolution | PAL/NTSC : 1920*1080 |
| Minimum Illumination | Color：0.01Lux@（F1.2，AGC ON），0Lux with IR / Black & White：0.001Lux@（F1.2，AGC ON），0Lux with IR |
| Photosensitive Resistance | 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
| Shutter | 1/50(1/60) seconds to 1/10,000 seconds |
| Day and Night Function | Support IR-CUT |
| Lens Parameters | C/CS interface, M12 lens optional |
| Video output | 1080P@25fps |
| Power | XPOE（12V） |
| Temperature and Humidity | - 10 ℃ ~ 60 ℃, humidity is less than 90% (no condensation) / Consumption |
| Size | Standard 38*38 positioning hole |
| Remarks | Support XPOE,coaxial upgrade |
Photos
Files

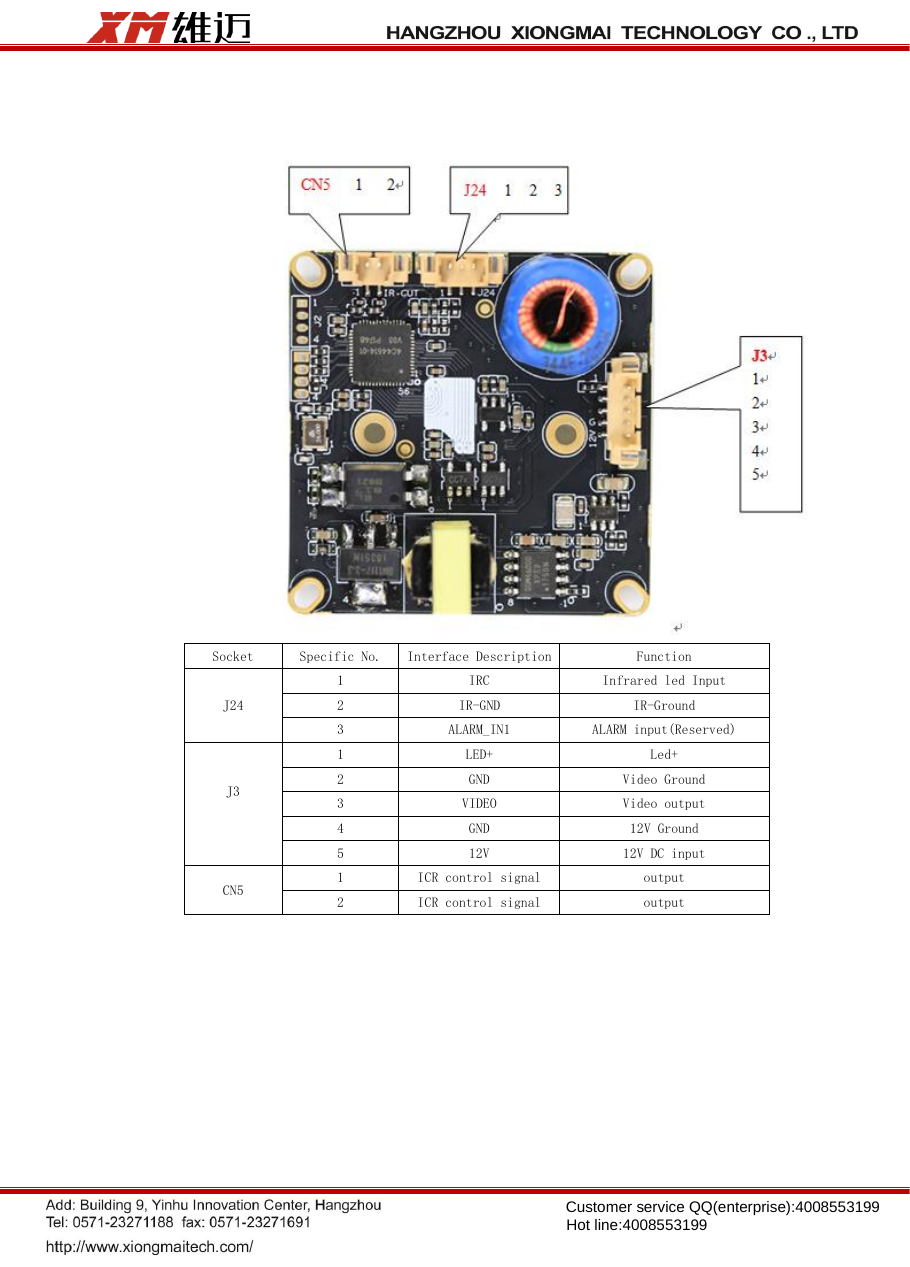

- XPG-53X20PSC-C-pinout-1.png (pinout, 357 KB)
- XPG-53X20PSC-C-interface-en.pdf (document, 1.2 MB)
- XPG-53X20PSC-C-interface-zh.pdf (document, 159 KB)
- XPG-53X20PSC-C-parameters.pdf (document, 1.4 MB)
