MC-J40D

IP camera module

Maker:
Anjoy Vision
SoC:
SSC377D
Also marked:
MC-J40D2
Listed:
2023

Anjoy Vision

5MP true full-colour module

Features

  • 1/1.8-inch 5MP CMOS sensor;
  • H.265+, H.265, H.264 encoding;
  • Supports software light sensing: full-colour mode
  • Supports smart analysis: human detection, vehicle detection, area detection, tripwire detection
  • Supports two-way audio, voice announcements, custom voice
  • Supports image flip, supports digital WDR
  • Onvif supported;
  • SDK (WINDOWS, Android, Linux) provided
Specifications
ModelMC-J40D
SoCSSC377D
Image sensor5MP, 1/1.8" CMOS
Video processingH.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~4Mbps; frame rate adjustable 1~25 fps;
Image outputMain stream: 25FPS@(2880×1620, 2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720); sub stream: D1, VGA, 640×360;
Audio interfaceAudio: 1 ch line input, 1 ch output
Audio processingG.711 encoding; two-way voice intercom; audio-video synchronisation;
IRCUT interfaceIntegrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/manual/scheduled mode
Network interface1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
LED board interfacePWM IR, PWM warm light;
ReliabilityFull lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
FunctionsOSD, real-time audio and video transmission, precise human detection, sound alarm;
Network protocolsHTTP/RTSP/DHCP/NTP/ONVIF and other network protocols
Power supplyDC12V power input, power consumption 100mA
Operating conditions-40~+65℃
Dimensions42 (L) * 42 (W)

Photos

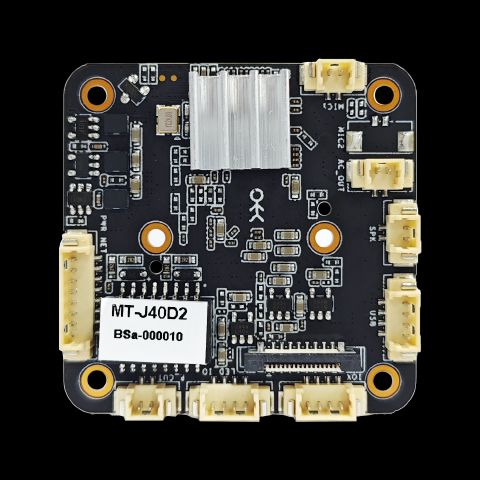

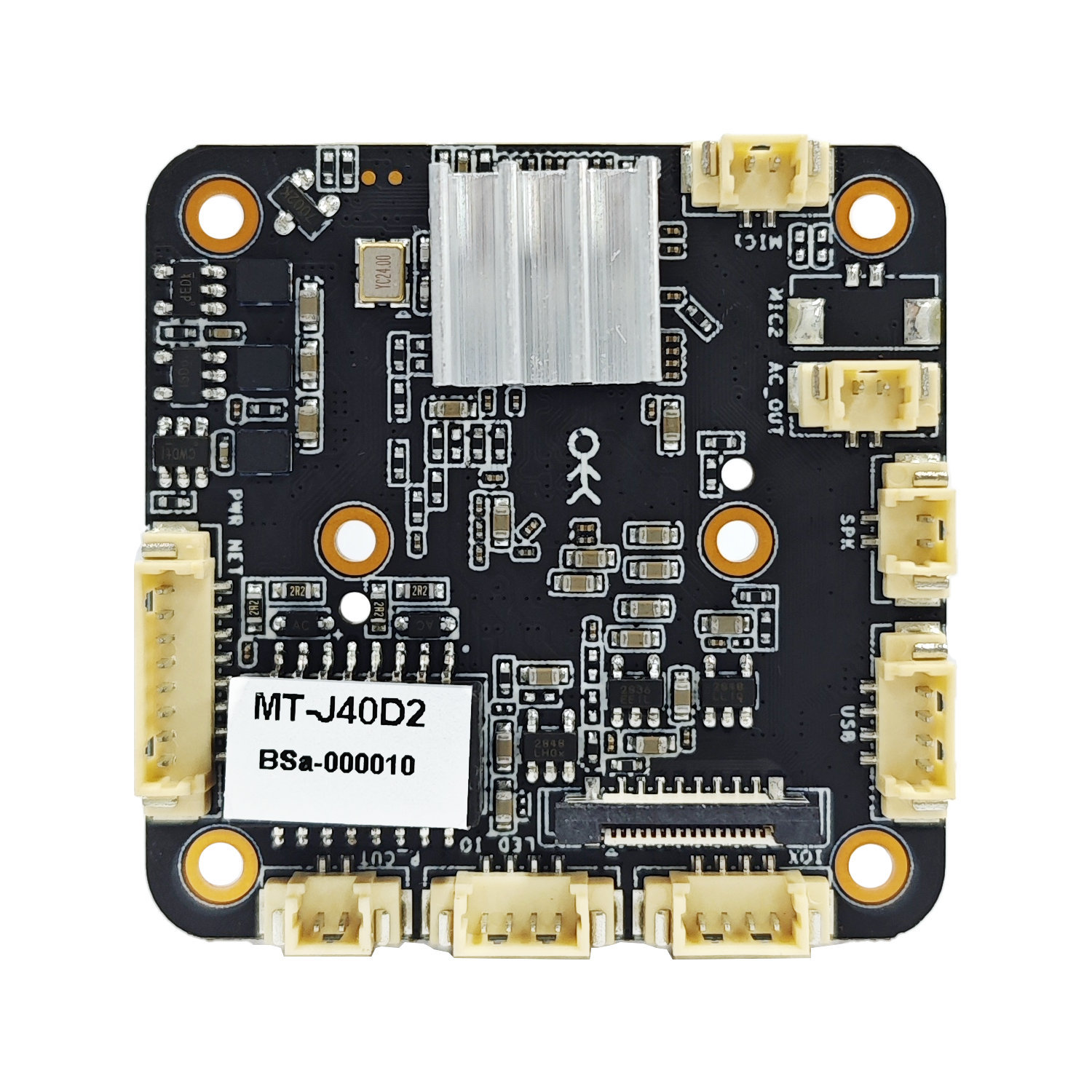

  • front of MC-J40D
