MC-K2D

Intelligent analysis module

Maker:
Anjoy Vision
Listed:
2025

Anjoy Vision

e-bike recognition module

Features

  • 1/2.9-inch ultra-low-light CMOS sensor;
  • H.265+, H.265, H.264 encoding;
  • Supports image flip, supports digital WDR
  • Supports e-bike recognition algorithm;
  • Supports light alarm;
  • Supports elevator control;
  • Supports two-way audio, voice announcements, custom voice
  • Onvif supported;
  • Supports character overlay
  • IP address filtering;
  • POE expansion supported;
  • TF card storage;
Specifications
SoCNew-generation high-compute processor
Image sensor1/2.9-inch ultra-low-light CMOS sensor
Video processingH.265+/H.265/H.264 video encoding; bitrate adjustable 0.1M~6Mpbs; frame rate adjustable 1~25 fps;
Image outputMain stream: 25FPS@(1920×1080, 1280×720); sub stream: 720×480, D1, VGA, 640×360;
Audio interfaceAudio: 1 ch line input, 1 ch output
Audio processingG.711 encoding; two-way voice intercom; audio-video synchronisation;
IRCUT interfaceIntegrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode
Network interface1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
LED board interfacePWM light control, IR, warm light
TF interfaceUp to 512G
ReliabilityFull lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-5
FunctionsOSD, real-time audio and video transmission, e-bike detection, light alarm, sound alarm;
Network protocolsHTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols;
Mobile monitoringMobile monitoring (iOS, Android) AC18Por;
Power supplyDC12V power input
Operating conditions-40~+85℃
Dimensions69 (L) * 38 (W)

Photos

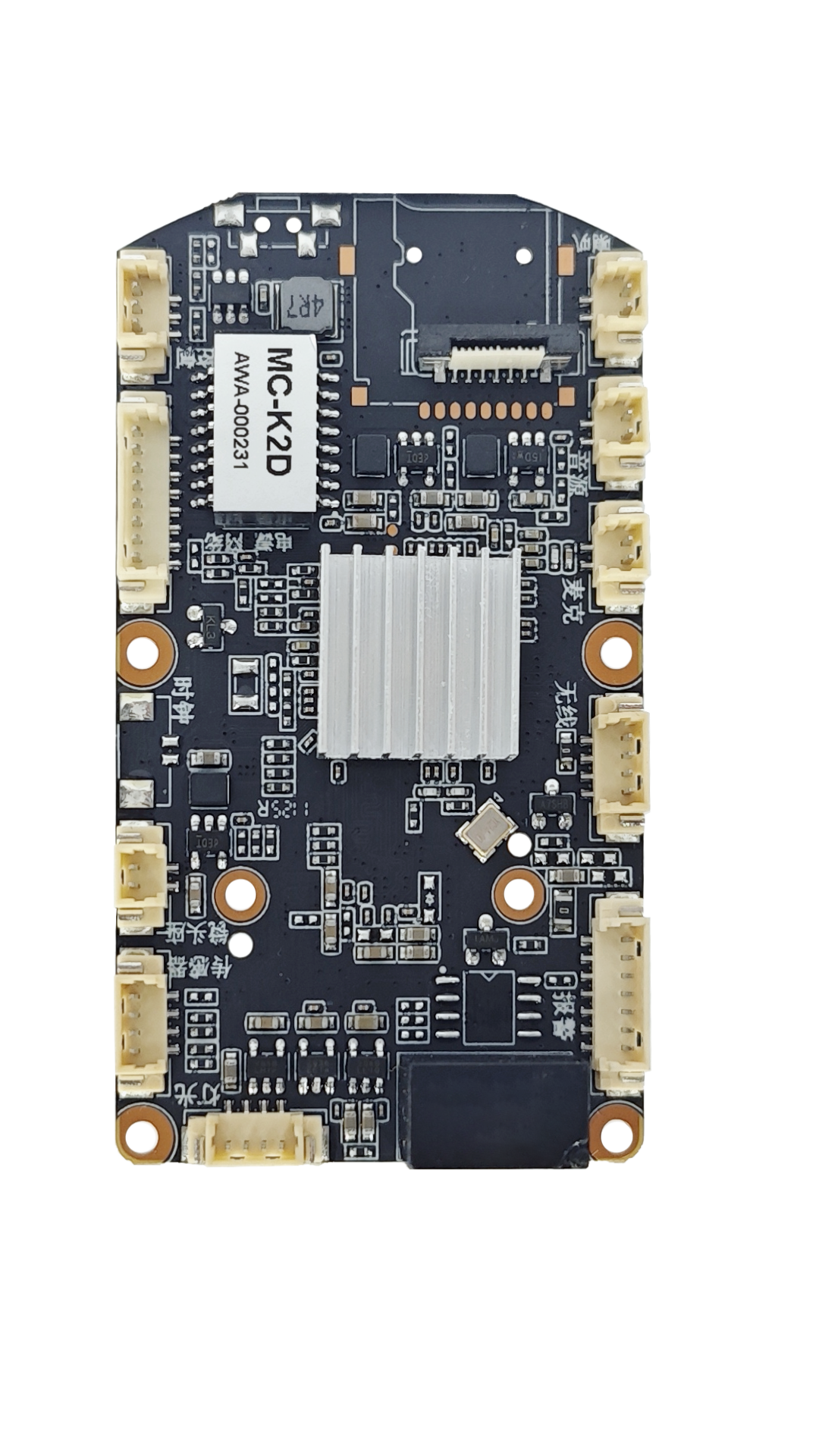

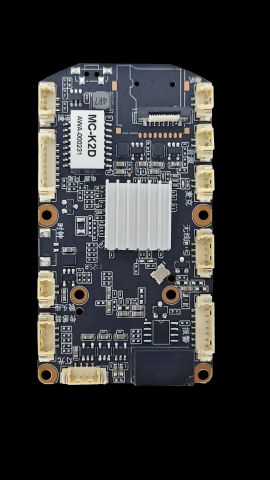

  • front of MC-K2D

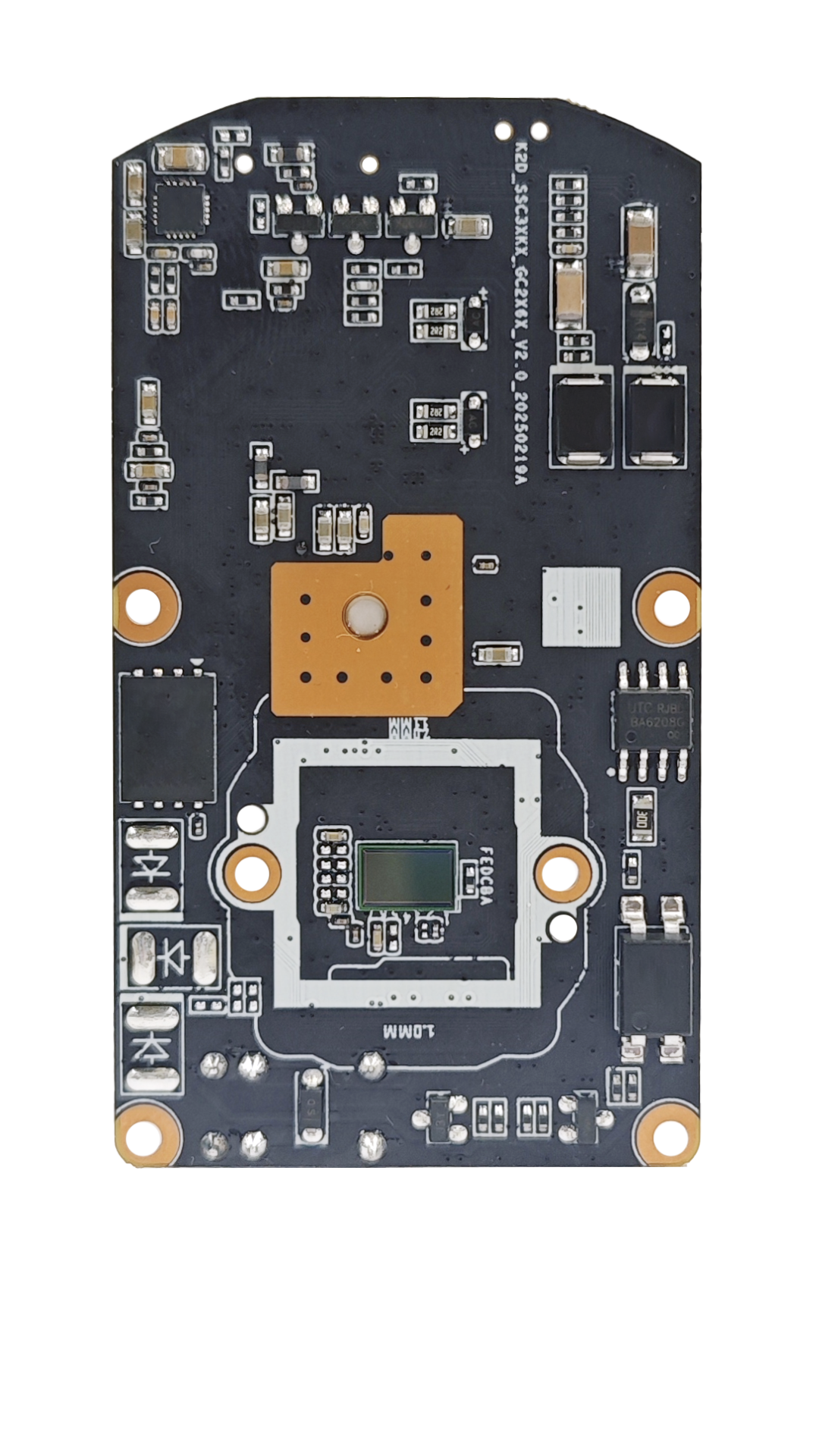

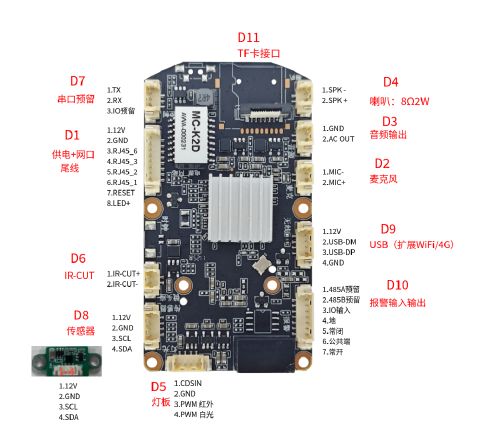

  • photo of MC-K2D

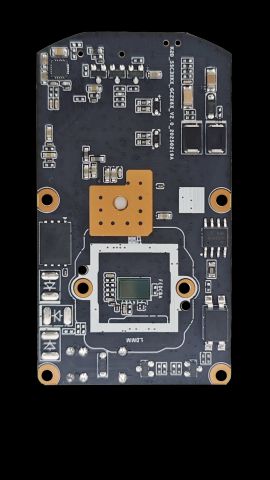

  • photo of MC-K2D
