MS-J10
IP camera module
- Maker:
- Anjoy Vision
- SoC:
- SSC335
- Sensor:
- IMX307
- Flash:
- GD25Q64 (8 MB)
- Also marked:
- MSJ10
- Listed:
- 2021
Anjoy Vision
H265+/H.265/H.264 2MP super starlight 38 single-board module
| Model | MS-J10 |
|---|---|
| SoC | MSTAR SSC335 |
| Image sensor | 1/2.8", 2MP ultra-low-light CMOS in a ceramic package, Sony IMX307 |
| Minimum illumination | Colour 0.01 Lux |
| Signal-to-noise ratio | ≥ 50 dB |
| Video processing | P/N video standard selectable, auto white balance, 3D noise reduction, WDR, face overexposure prevention, defog, selectable H.264/H.265/H.265+ encoding formats, for ultra-low storage use, adjustable bitrate/frame rate, manual shutter value adjustment |
| Image resolution | Main stream: 3MP@25fps, 1080P/720P/D1@30fps; sub stream: D1/VGA/640*360/CIF@30fps; supports CBR/VBR |
| Audio processing | Audio line input/output, G711U/G711A encoding, supports two-way audio |
| Network interface | One RJ45, 10/100M auto-sensing Ethernet port, 2KV lightning protection |
| Protocol support | HTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181, RTMP and various NVR interconnection protocols |
| Storage | Up to 128G storage, requires a tail board with an SD card slot |
| IO interface | Supports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware |
| LED board interface | Supports active mode and passive mode; requires a matching LED board |
| IRCUT interface | Integrated IR-CUT switching circuit; IR-CUT day/night mode controlled in automatic/external control/manual/scheduled mode; browser access with IE6.0 and above (embedded web server); motion detection and custom OSD; JPEG snapshot; P2P cloud service (danale); IP filtering |
| Functions | SDK (WINDOWS, Android, Linux) provided |
| PTZ linkage | Active IR; active warm light; dual light source; licence plate capture; auto zoom |
| General parameters | DC12V/POE, 1.2W Max, 38 (L) × 38 (W) × 15 (H) mm (excluding lens), 0.06 kg |
| Operating temperature | -30~85℃ |

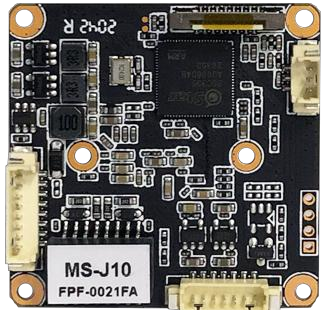

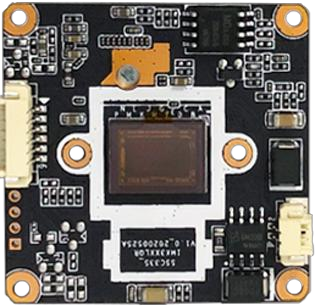

Photos
Files

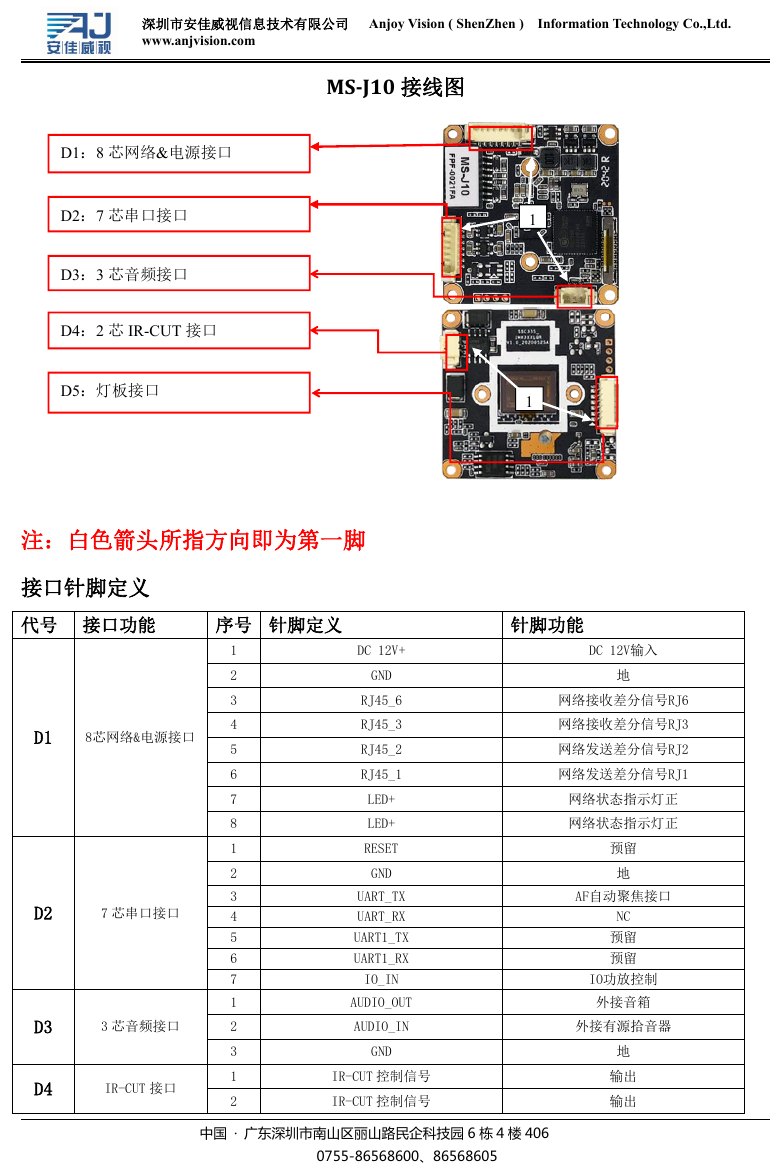

- MS-J10-pinout-1.png (pinout, 258 KB)
- MS-J10-wiring-diagram.pdf (document, 211 KB)
- MS-J10-spec-sheet.pdf (document, 158 KB)
- uboot.txt (U-Boot console, 4 KB)
- boot.log (boot log, 25 KB)
