HX3001S-1080K34-38-B

Haixin Weishi

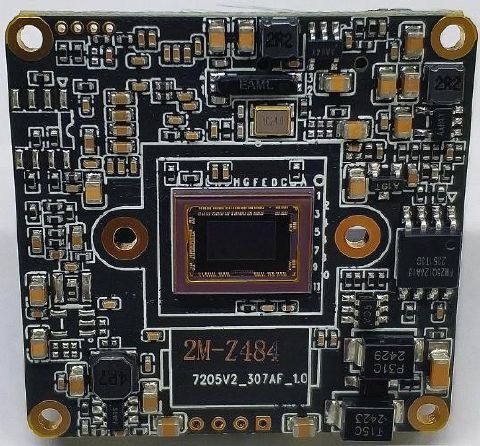

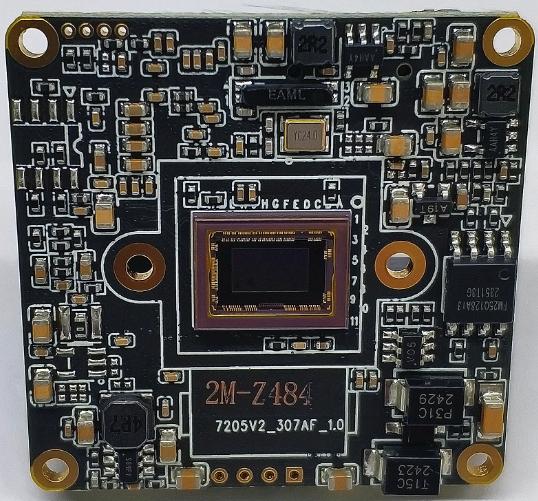

2MP HD module

The 2MP Low Lux HD 38 module adopts a highly integrated SOC processor, with extremely low power consumption and strong stability; support H264 and H.265 compression algorithms, ensuring image quality while effectively reducing network bandwidth usage; Powerful network functionality, support standard ONVIF protocol, support RTSP, support uploading alarm images to FTP servers, sending alarm images to E-Mail, and support mobile phone remote monitoring. Main features  High sensitivity, high signal-to-noise CMOS image sensor  Using GK7205V200  Max 200W pixels and Max (1920x1080) resolution  H265 compression algorithm, effectively reduces network bandwidth, supports dual streams, and supports mobile monitoring  Support multiple network protocols: TCP/IP，HTTP，TCP，ICMP，UDP，ARP， IGMP，SMTP，DHCP，DNS， NTP，UPNP，RTSP etc.  Support ONVIF protocol  Support sending alarm images via E-Mail  Support uploading alarm images and video recordings to FTP server  Support timed capture of images to FTP server  Support both static IP and dynamic IP (DHCP)  Support P2P plug and play  Support IE, Google, and Firefox browsers  Up to 6 users can browse simultaneously (each stream supports 3 users)  Provide motion detection alarm function(area and sensitivity can be set)  Support humanoid detection  Support Micro SD card, Max 128G  Support mobile phone download and playback of SD card recordings

Photos

Files

• catalogue_camhi_20260409.pdf (document, 2.2 MB)
