LMDERL400
Network Camera
- Maker:
- Longse
- Listed:
- 2022
Longse
4MP Fisheye IP Cameras
Features
- High quality imaging with 4MP resolution
- 1/2.8"SONY Starvis Back-illuminated CMOS sensor
- Support H.264/H.264+/H.265/H.265+Compression
- Minimun Illumination: 0.003 Lux@(F1.6, AGC ON)
- External SD Card Slot, Support Max 512TB, Built in 4G Storage
- Support WDR: 120dB
- Housing: Body:Metal, Bracket: Plastic
| Series | Fisheye |
|---|---|
| Image Sensor | 1/2.8" SONY Starvis Back-illuminated CMOS sensor |
| Resolution | 4MP |
| Effective Pixels | 2616 (H)*1964 (V) |
| Compression | H.264/H.264+/H.265/H.265+ |
| Audio Compression | G711A/U,AAC,MP2L2 |
| TV System | PAL/NTSC |
| Electronic Shutter Time | Auto: 1/3-1/100000Sec |
| Minimun Illumination | Color: 0.003 lux@F1.6,AGC ON; B/W :0 lux with IR |
| S/N Ratio | 60dB |
| Scanning System | Progressive |
| Video Output | Network |
| Reset Button | Support |
| Focus Length | 1.1 mm, horizontal FOV 180°, vertical FOV 180°, diagonal FOV 180° |
| Lens Type | Board Lens 1.1mm |
| Focus Control | Fixed |
| Aperture | Fixed |
| Pixels | 4MP |
| Supplement Light | 42µx 3PCS |
| Supplement Light Distance | 15M |
| Supplement Light Status | Auto Control |
| Supplement Light Power On | Smart, Manual & Timed mode |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP, IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTMP, RTCP, PPPoE, NTP, SMTP, UDP, SNMP, Qos, 802.1x |
| ONVIF | Support ONVIF 24.12(Profile S/T/G/M) |
| P2P | YES, Support QR Code |
| POE | Internal POE, Support IEEE 802.3af |
| Video Delay | 300ms (Within the Lan) |
| Main Stream 1 | 1920*1920@30fps |
| Main Stream 2 | 1536*1536@30fps |
| Main Stream 3 | 1024*1024@30fps |
| Sub Stream 1 | 1024*1024@30fps |
| Sub Stream 2 | 720*720@30fps |
| Sub Stream 3 | 512*512@30fps |
| Tri Stream | 1024*1024@30fps; 720*720@30fps; 512*512@30fps |
| IE Brower | Microsoft Edge, IE11, Google Chrome, Firefox, Mac Safari |
| Smart Phone | iPhone, Android |
| Antena | 3dbi |
| Hotspot | Support |
| WIFI Range | No obstacles 100m Max. |
| Intelligent Analysis | N/A |
| Day/Night | Color/ B&W (IR-CUT ) |
| Image Config | Saturation/Brightness/Contrast/Sharpness, Mirror, 3D NR, White Balance,Anti Flicker, Video Tampering, HLC |
| Corridor Pattern | N/A |
| ROI | Support |
| Defog Mode | Support |
| BLC | Support |
| WDR | 120dB |
| Motion Detection | Support |
| Recording Mode | NVR/VMS/Web/SD Card |
| Language | Chinese Simplified, Chinese Traditional, English, Korean, Polish, French, Japanese, Spanish, Portuguese, Italian, Hebrew, Ukrainian, Arabic, Vietnamese, Thai, Hungarian, Czech |
| Audio | Default: Two Way Audio |
| Alarm | Default: Alarm I/O |
| SD Card Slot | External, Support Max 512GB, Built in 4G Storage |
| RS485 | N/A |
| Housing | Body:Metal, Bracket: Plastic |
| Anti-cut Bracket | NO |
| IR Cut Filter | YES |
| Operation Temperature | -20℃ ~ +60℃ RH95% Max |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max |
| Power Source | DC12V±10%, 550mA |
| Dimension | ￠120 x 49(H) mm |
| Weight | 500g |

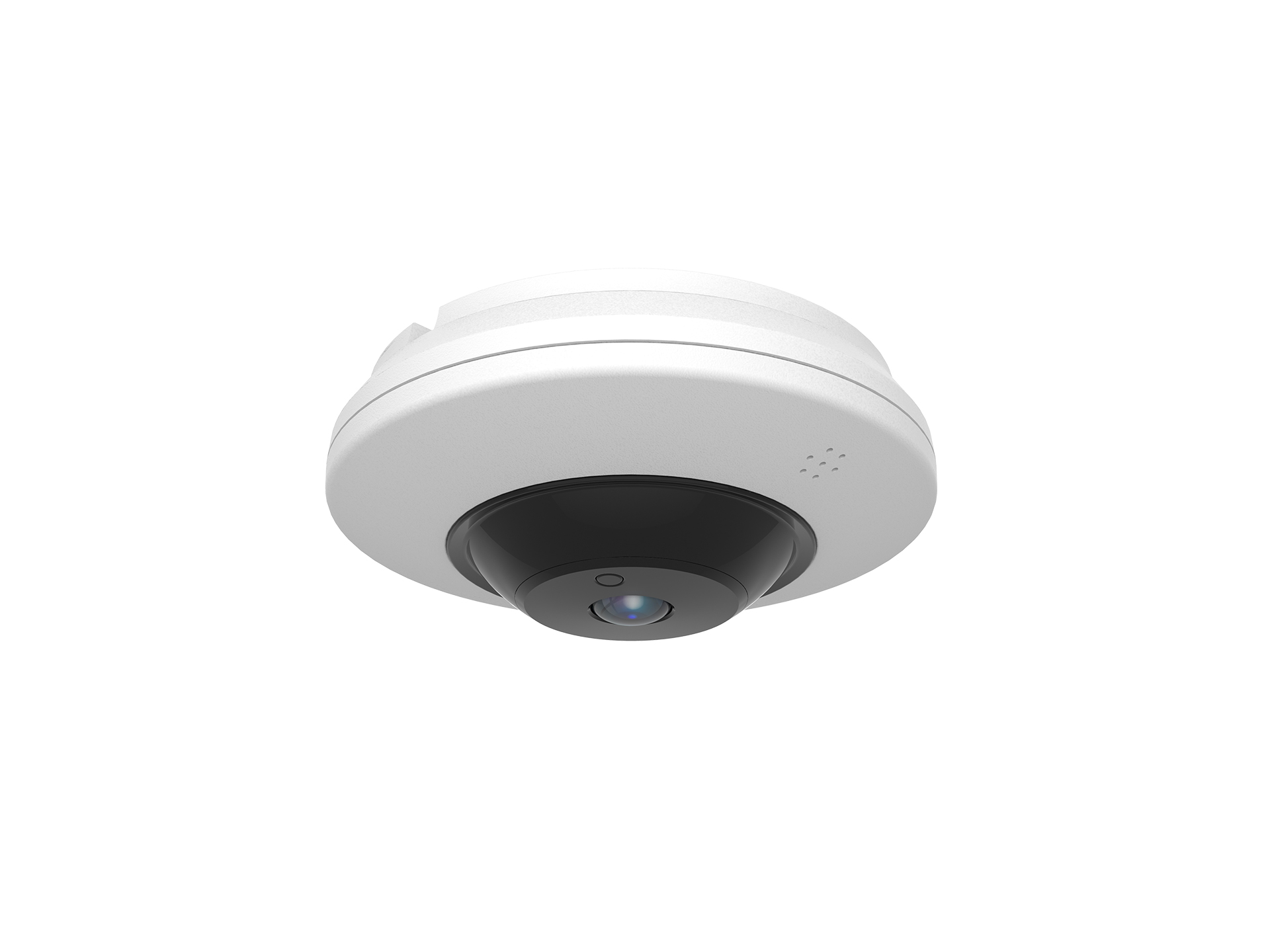

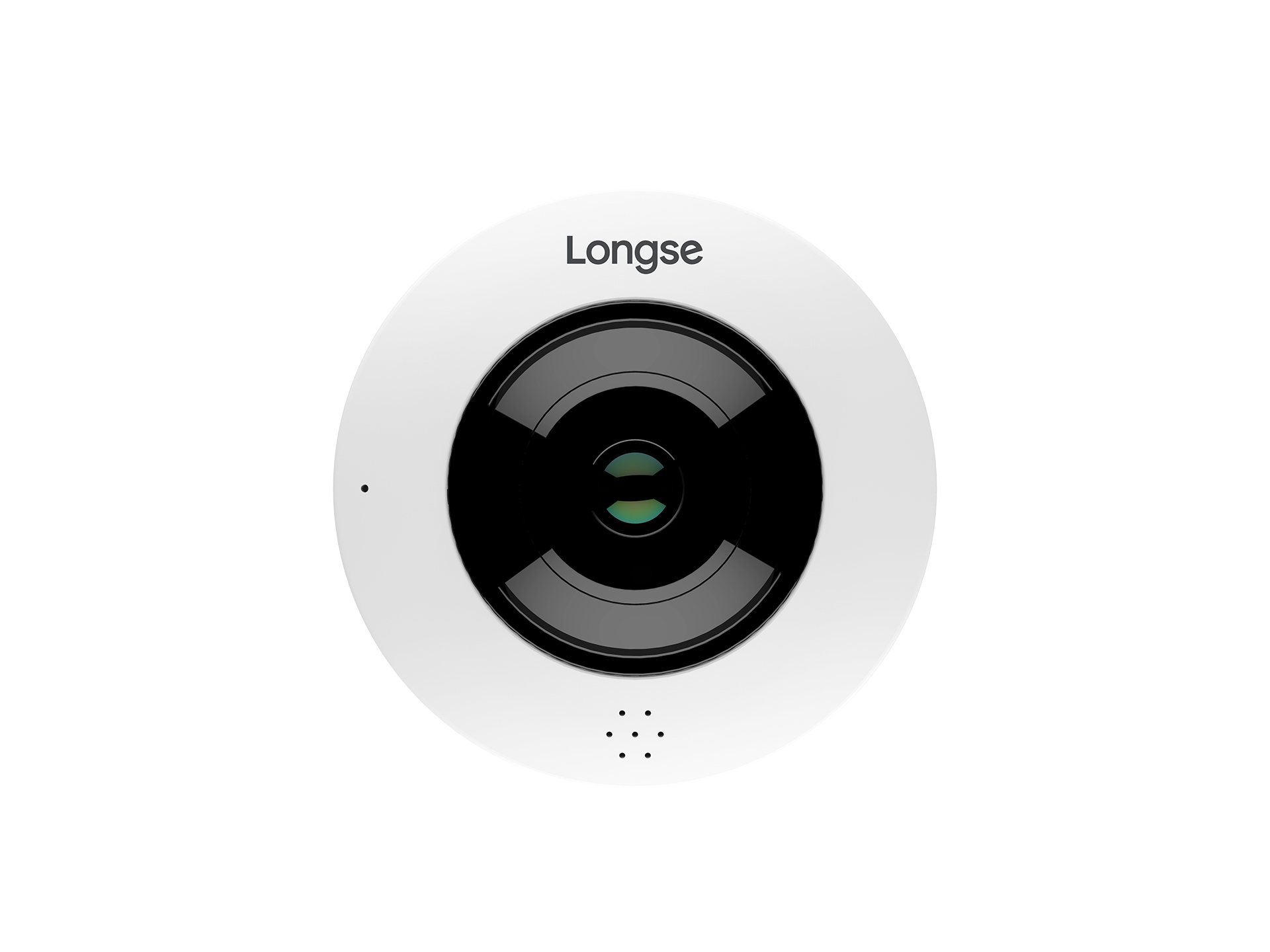

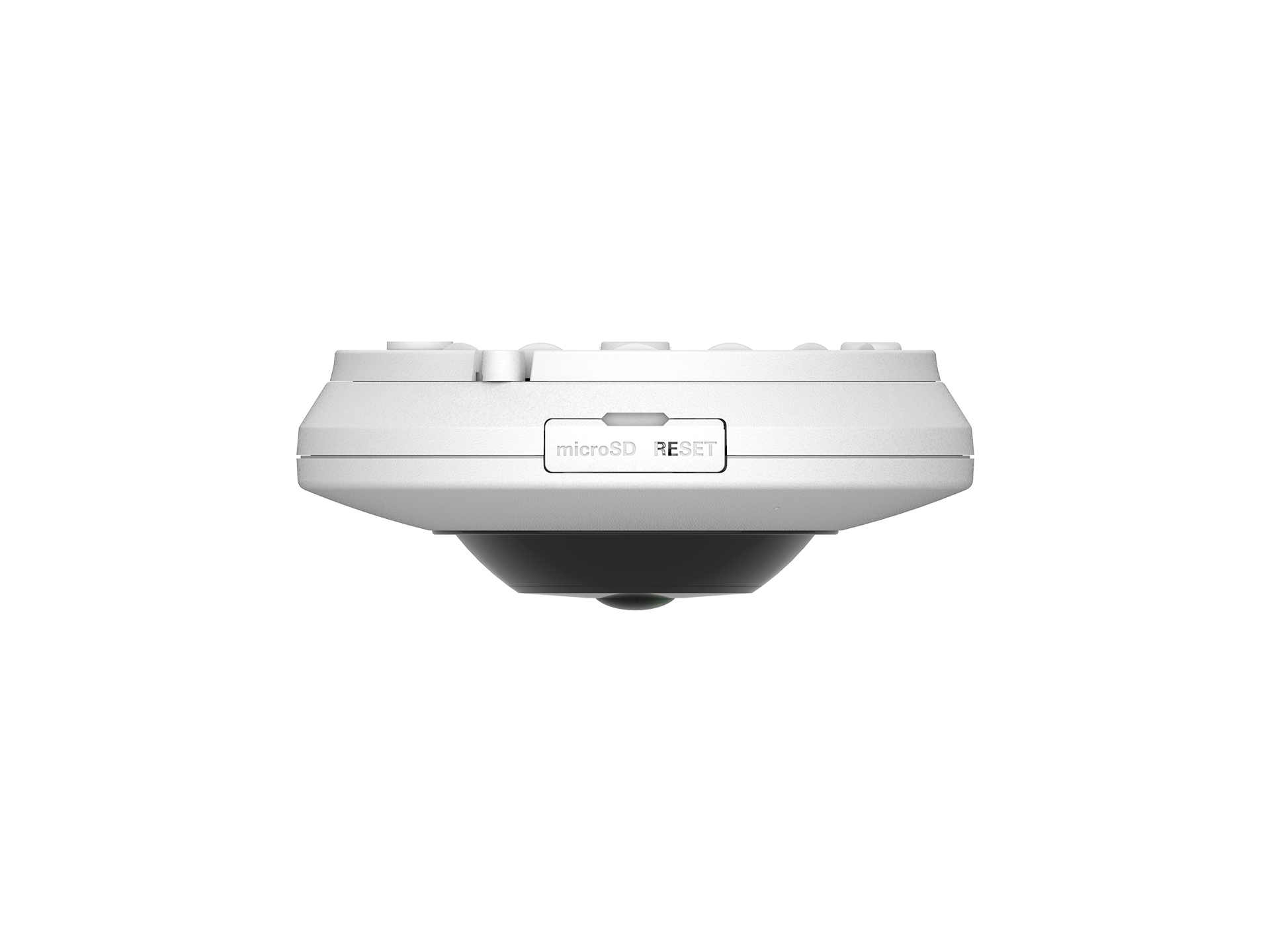

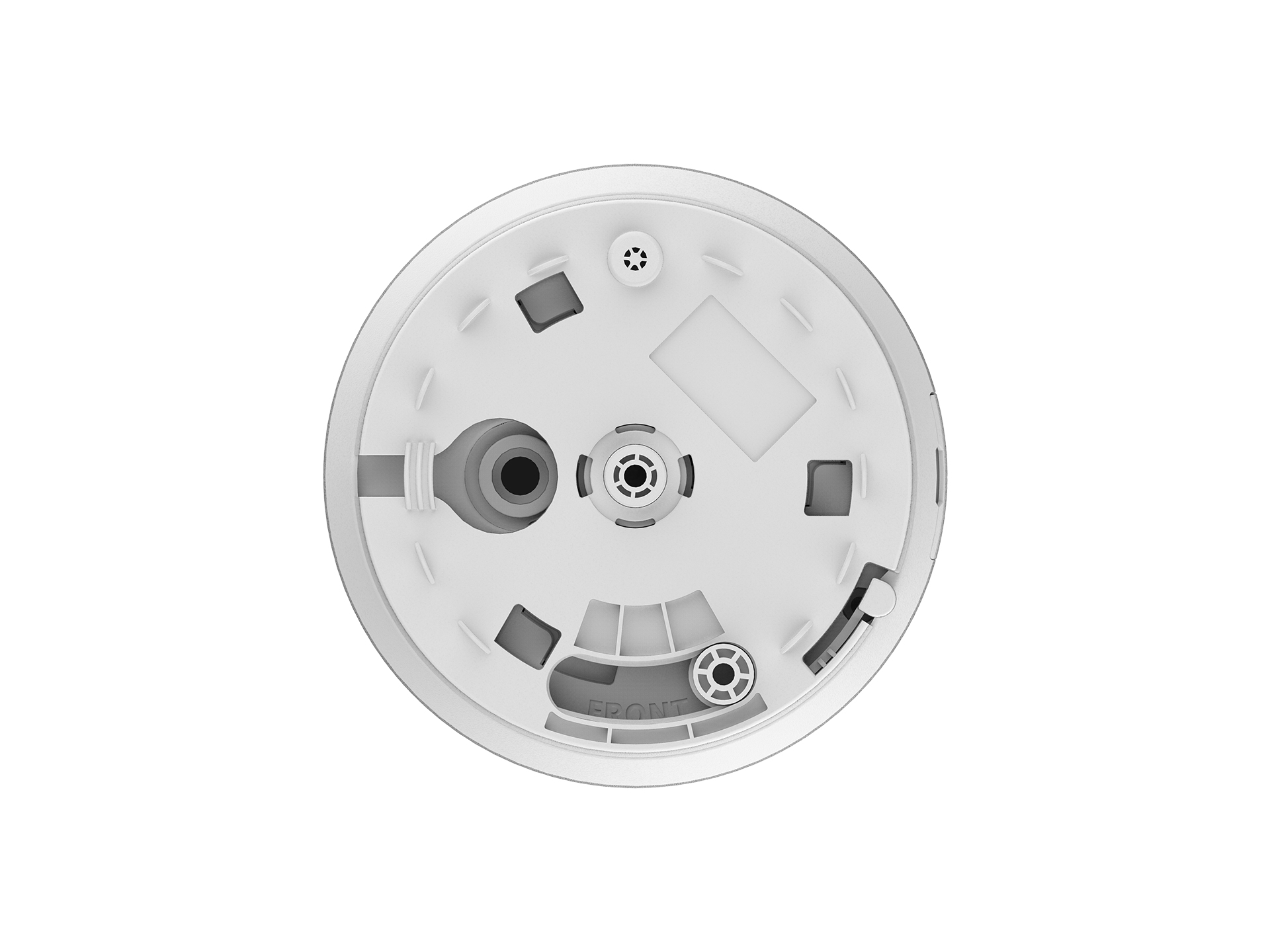

Photos
Files
- LMDERL400-datasheet.pdf (document, 4.5 MB)
