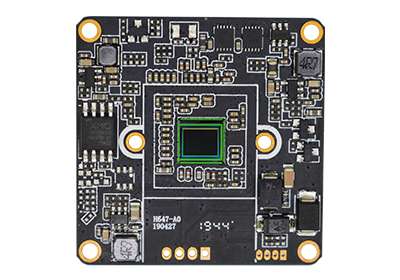

RS-H647JAI-A0
IP Camera Module
- Maker:
- Ruision
- SoC:
- HI3516EV300
- Sensor:
- IMX335
- Listed:
- 2023
Ruision
Technical features of products
1.1 / 2.8 "500W Sony 335 sensor, Hisilicon 3516ev300 chip
2. Support h.265/h.264;
3. Support three code streams: 2560 * 1920 / 2560 * 1440 / 2304 * 1296 / 1920 * 1080 / 1280 * 720; auxiliary code stream 1: 448p (800 * 448) / 704 * 576 / 640 * 360 / 352 * 288; auxiliary code stream 2: 640 * 360 / 352 * 288; secondary code stream 2: 640 * 360 / 352 * 288;
4. Support wide dynamic, 3D noise reduction, backlight compensation, automatic white balance, suitable for different monitoring environments;
5. Support onvif protocol and access to the third party NVR;
6. ICR filter switching function to realize 24-hour monitoring;
7. Support screen occlusion, and set up 4 occlusion area blocks;
8. Support audio input to realize perfect monitoring of video recording;
9. Support mobile detection, mobile detection alarm automatically send email reminder;
10. Support OSD location setting and network timing;
11. Support mobile phone monitoring (IOS, Android), web end and easyvms
12. Support automatic maintenance function;
13. Support Poe power supply (optional);
14. Support FTP function;
15. Support stepless infrared dimming, electrodeless white light dimming and intelligent dual light
16. Support human shape detection + face capture function, intelligent sound and light alarm
RS-H647-A0产品规格书-EN.pdf
普通红外_IPG-8150PXS_V1.1.9_20200819PT.bin
Photos
Files
- 1609835269815077.pdf (document, 284 KB)
