IPC-HX8340PGF-IR2R-PAT
Network Camera
- Maker:
- Xiongmai
- SoC:
- GK7205V200
- Device IDs:
- J91659N7
- Listed:
- 2023
JFTech

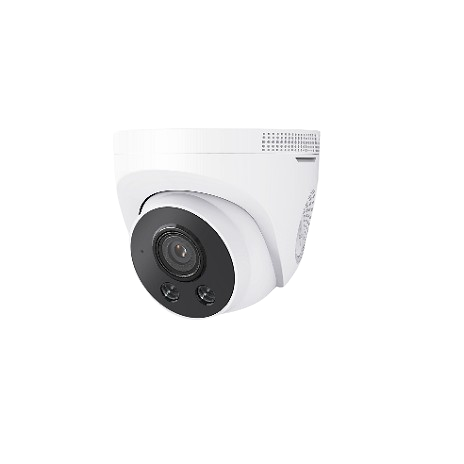

4.0MP PoE Dual-light Dome IP Camera HX Series
IPC-HX8340PGF-IR2R-PAT is a Dome network camera developed by our company, suitable for places with low or no light conditions and high definition image quality, such as roads, warehouses, underground parking lots, bars, pipelines, parks, etc.
| Sensor | 1/2.8" low illumination CMOS sensor |
|---|---|
| Min.illumination | Color:0.01Lux @(F1.2,AGC ON);0 Lux with IR; B/W:0.001 Lux @ (F1.2,AGC ON);0 Lux with IR |
| Shutter Time | 1/50(1/60)s to 1/10,000s |
| Lens | HD lens 3.6mm@F2.0(2.8/6mm optional) |
| Lens Mount | M12 |
| Day&Night | IR cut filter with auto switch |
| Video Compression | H.265AI(compatible H.265/H.264) HighProfile, JPEG snapshot |
| Bite Rate | 0.1Mbps~8Mbps |
| Audio Compression | G.711a |
| Max.image reolution | 2560*1440 |
| Frame Rate | PAL:4M@25fps、3M@25fps、1080P@25fps; NTSC:4M@25fps、3M@25fps、1080P@25fps |
| Setting | Saturation, brightness and contrast are adjustable through IE browser or client software. |
| Storage | Network storage |
| Alarm | Face detection , human detection, Motion detection, video loss, video block, etc. |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP, (HTTPS, SIP, 802.1x, IPv6 option |
| Features | anti-flicker, dual-stream, heartbeat, password protection |
| Ethernet | 1*10/100Mbps Ethernet port, RJ45 port |
| Audio I/O | 1月1日 |
| Temperature | -10℃-＋60℃ |
| Humidity | 10%-90% RH |
| Power Supply | DC12V±10%/POE |
| IR Range | 2 * infrared light, 2 * white light,“IR2”:20-30 meters |
| Consumption | MAX 4W |
| Material | ABS |
| Ingress Protection | N/A |
| Weight | About 216g |
Photos
Files
- Parameters-for-IPC-HX8340PGF-IR2R-PAT.pdf (document, 223 KB)
