IPG-80HE20PS-S
2.0M Hi3516EV100 H.265 IP Camera Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3516EV100
- Sensor:
- SC2235P
- Device IDs:
- 00035520
- Listed:
- 2018
cctvsp.ru
IP camera module IPG-80HE20PS-S (Hi3516Ev100 + SC2235P)

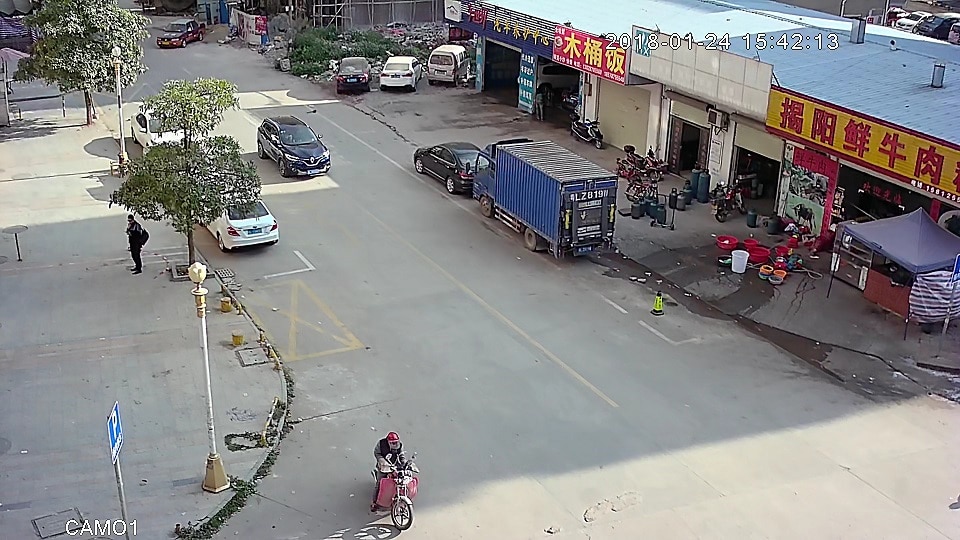

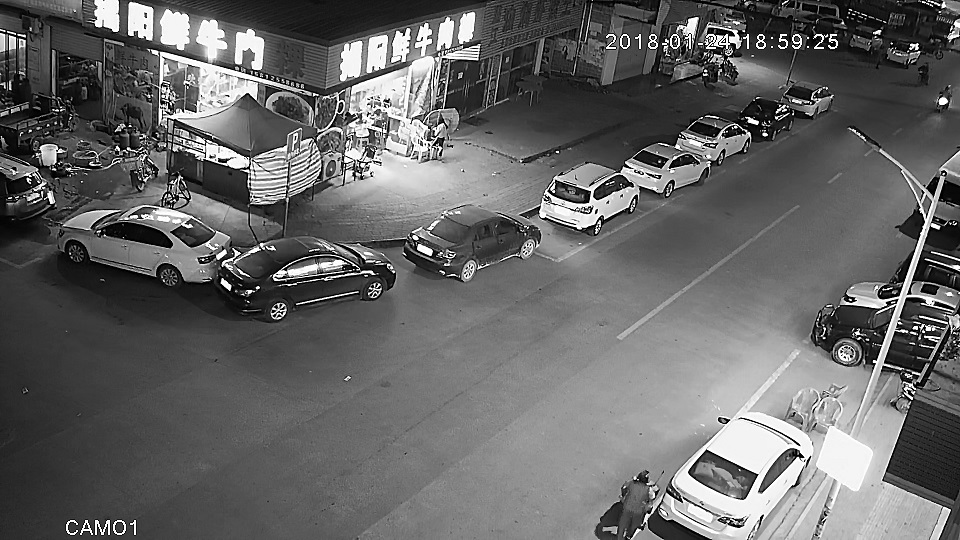

2MP IP camera module. Sensor: 1/2.7'' SmartSens Tech. SC2235P third-generation CMOS sensor; the new HiSilicon Hi3516Ev100 HD IP Camera SoC with h265 support; resolution 1920x1080 at 20 frames per second (24fps with the secondary stream disabled). Used in outdoor and indoor cameras; performs excellently when shooting both daytime and night-time video. The SC2235P sensor is positioned in the StarLight category and has improved characteristics compared with the F22.
Note: this module has been discontinued. In its place, the IVG-85HF30PS-S is now available, with the new 3MP Smartsens SC4239 sensor and the new, more powerful Hi3516Ev200 SoC, which delivers 25fps.

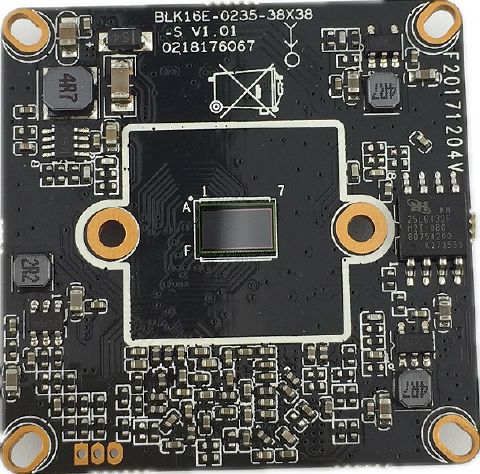

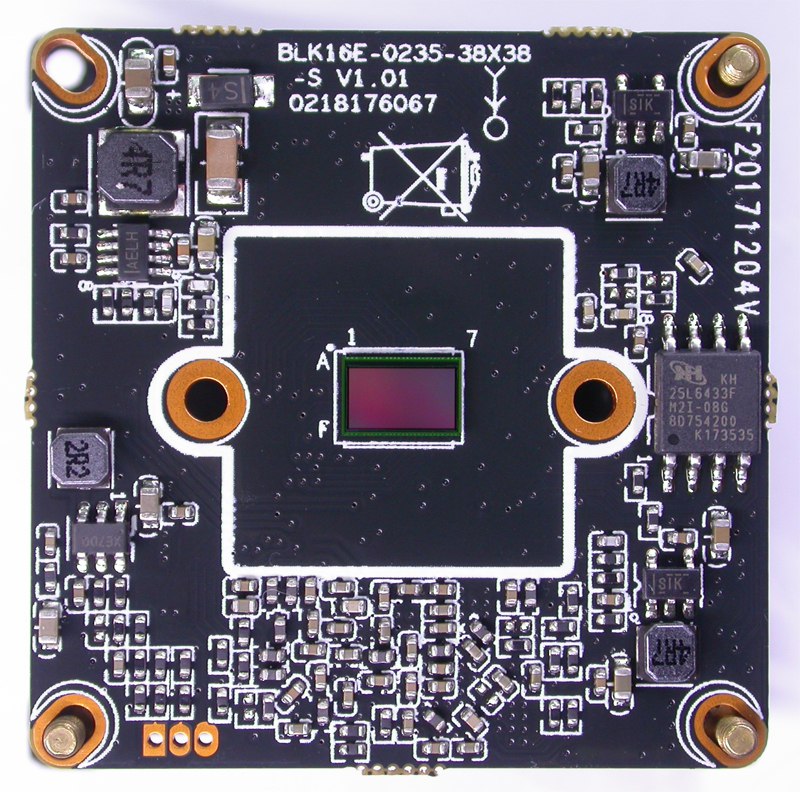

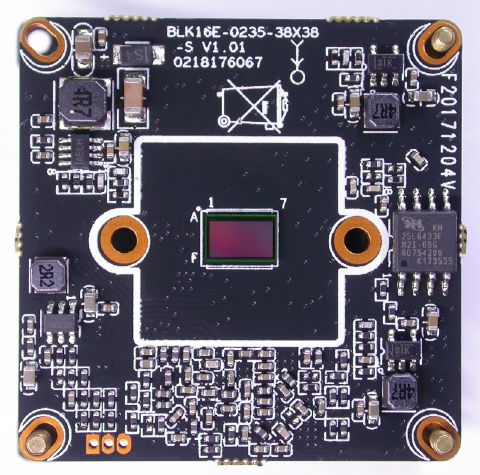

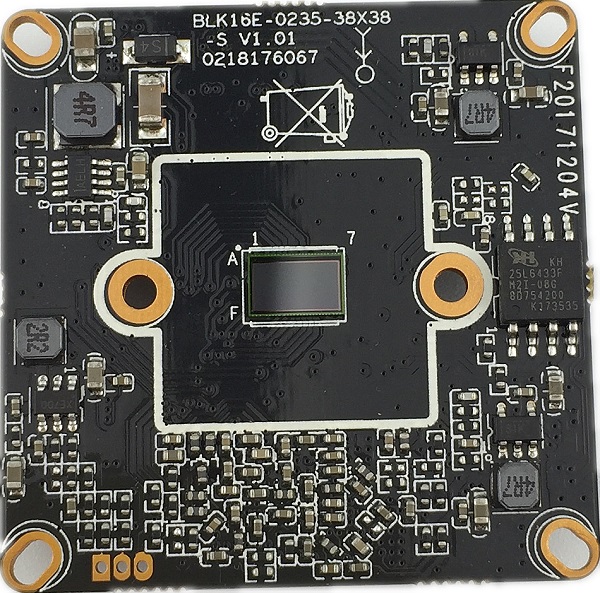

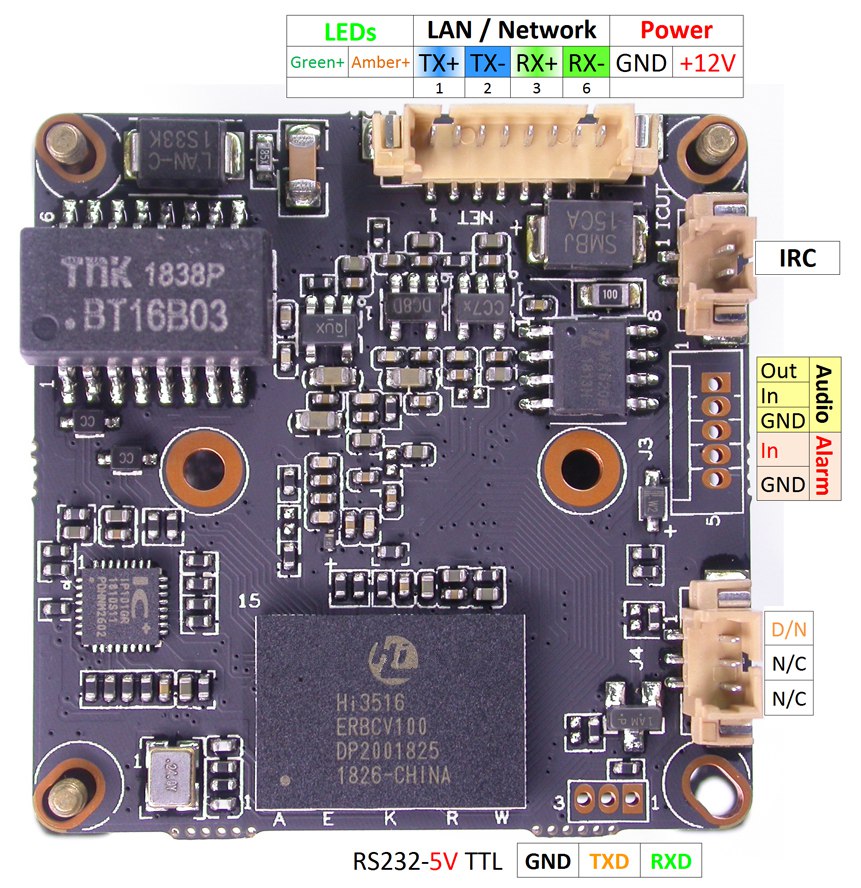

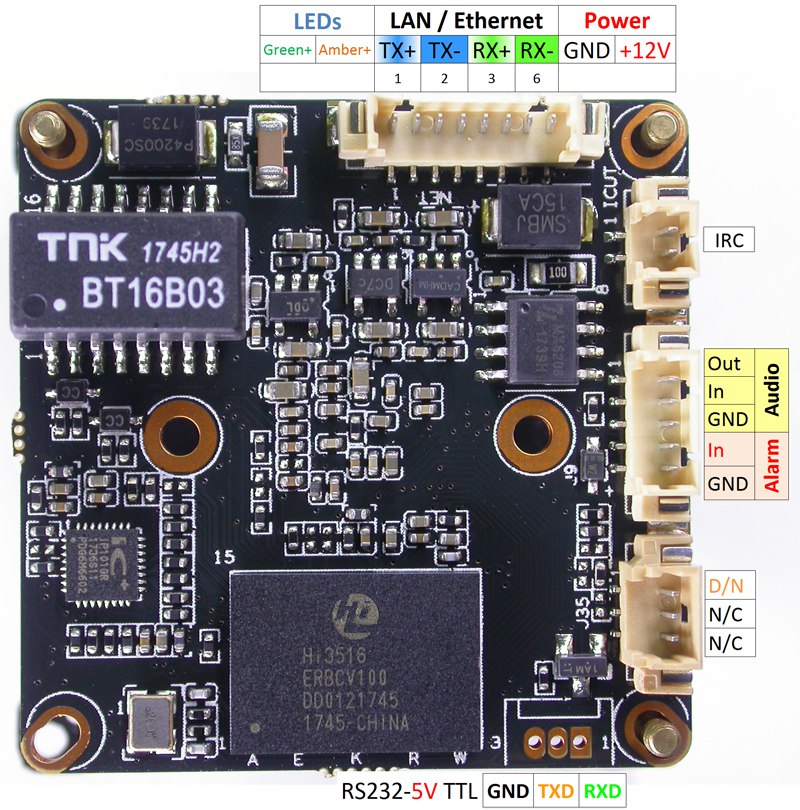

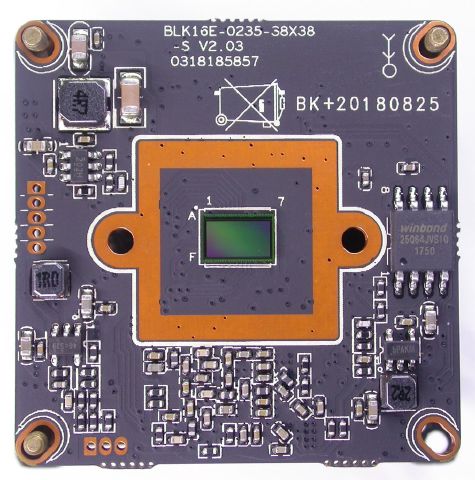

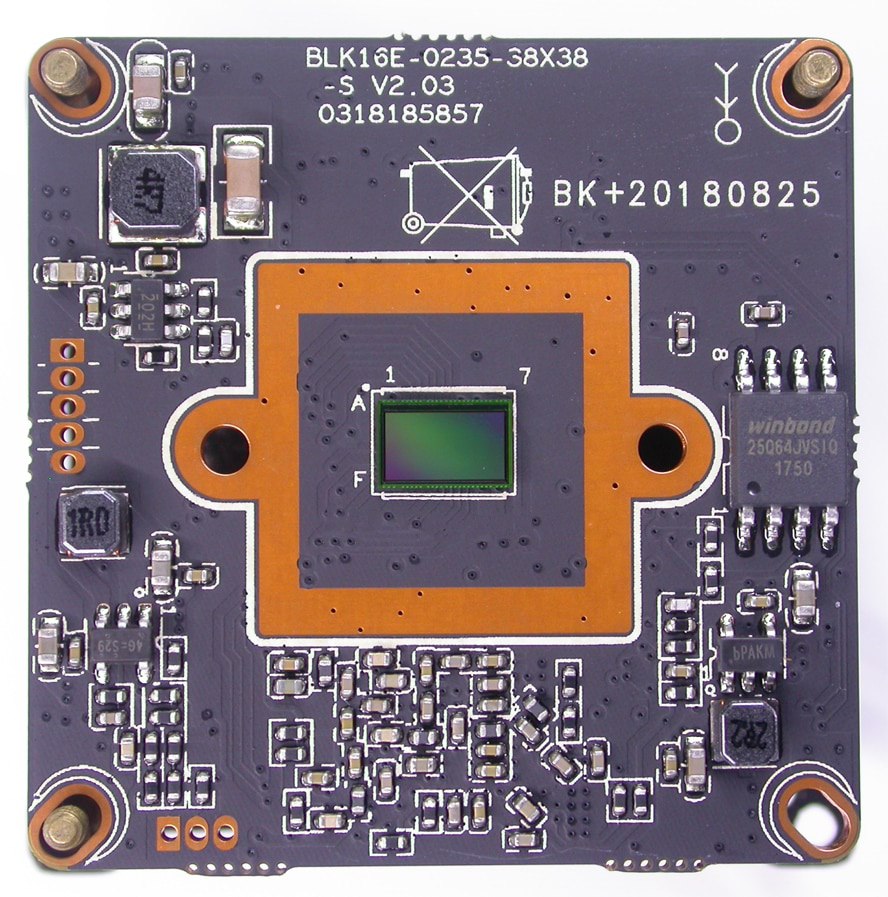

There are modules with PCB version 1.xx (black solder mask) and 2.xx (light solder mask and an orange rectangle of metallisation under the IR-cut filter). Both revisions deliver video of identical quality; the only difference is the board layout.

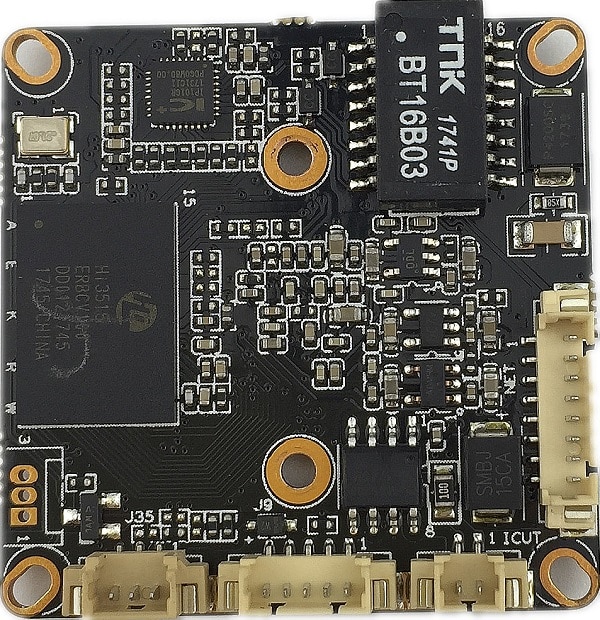

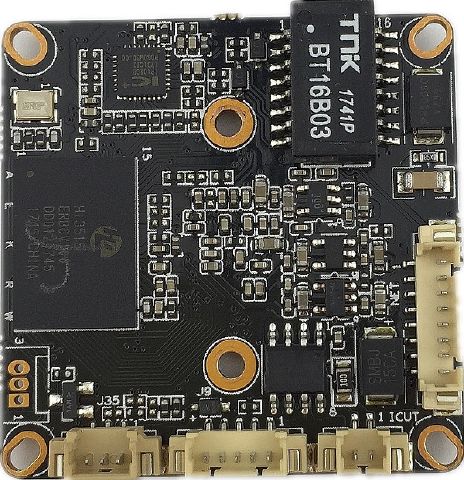

Please note that this module has a not-quite-standard combined connector; take this into account when ordering the cable (pigtail).
| Sensor | 1/2.9'' SmartSens SC2235P CMOS sensor |
|---|---|
| Resolution | 2Mp (1920x1080) |
| Sensitivity | Day 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR |
| SoC | HiSilicon Hi3516Ev100 V100 Professional HD IP Camera SoC |
Xiongmai
2.0M Hi3516EV100 H.265 IP Camera Module
Features
- 1080P HD resolution,clear and fine images
- Support 2D/3D noise reduction,digital wide dynamic
- Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate,high definition quality of image
- Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
- Support ONVIF;access third party
- Support various mobile monitoring(iPhone,Android)
- Provide web、CMS、center platform management software MYEYE,provide SDK development
- Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
| Model | IPG-80HE20PS-S / IPG-80HE20PS-A |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516EV100),pure hard compression ,watch dog |
| Sensor | 2.0M 1/2.9" CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2 |
| Video compression | H.265++/H.265+/H.265/H.264 ,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
| Image output | Main stream: 1920*1080@20fps,1280*720@25fps; sub-stream: 704*576@25fps; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | No |
| Day and night | Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Auto iris | N/A |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Extension interface | N/A / SD card，Alarm1/1，Reset，RTC，USB |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | N/A |
| Motor interface | N/A |
| Alarm I/O | 1/0 (support alarm input and video link to background) |
| WIFI interface | N/A |
| Reset interface | N/A |
| SD Card | N/A |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Intelligence analysis | No |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC12V/2A input, power consumption:≤3W, |
| Dimension | 38mm*38mm |
| Other | Support POE power supply (optional), not support any custom，The drive voltage of the light board is at 3.3V |
Photos
Files

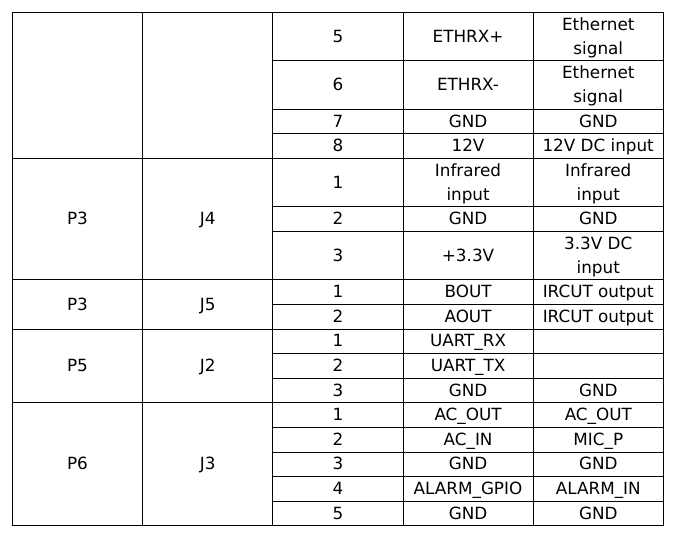

- pinout-2.jpg (pinout, 211 KB)
