IPG-80X20PSD-WPNE

2.0M Wireline-WiFi IP camera Module · WiFi Kit

Maker:
Xiongmai
SoC:
XM530
Sensor:
SC2235E
Device IDs:
00030680
Listed:
2019

Xiongmai

2.0M Wireline-WiFi IP camera Module

Features

  • Supporting human detection and supports intelligent functions
  • 2.0M resolution,clear and fine images
  • Support for wired and wireless connections
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265+ video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support matching WIFI NVR board, recommend to cooperate with NBD8004RA-UWSE NVR board to achieve 500m
Specifications
ModelIPG-80X20PSD-WPNE
System structureEmbedded RTOS, dual-core 32-bit DSP (XM530AI),pure hard compression ,watch dog
Sensor2.0M 1/3" SC2235E CMOS sensor,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2
Video compressionH.265+ coding,support dual stream,AVI;0.1M~6Mpbs variable
Image outputMain stream: 1920*1080@15fps; sub-stream: 640*360@15fps
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711 standard compression,support two-way Bidrectional Talk,support for audio and video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone;
Network interface1*RJ45 10/100M adaptive Ethernet port
Extension interfaceN/A
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/O1/1
WIFI interfaceSupports Wi-Fi，Supports 600 meters wireless connections
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisSupporting human detection and customizing other intelligent functions
Other functionSupport IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture； perfect SDK
ONVIFNo
Mobile monitoringN/A
PowerDC5V-12V
Dimension38mm*38mm+38mm*38mm
OtherThe drive voltage of the light board is at 3.3V

Photos

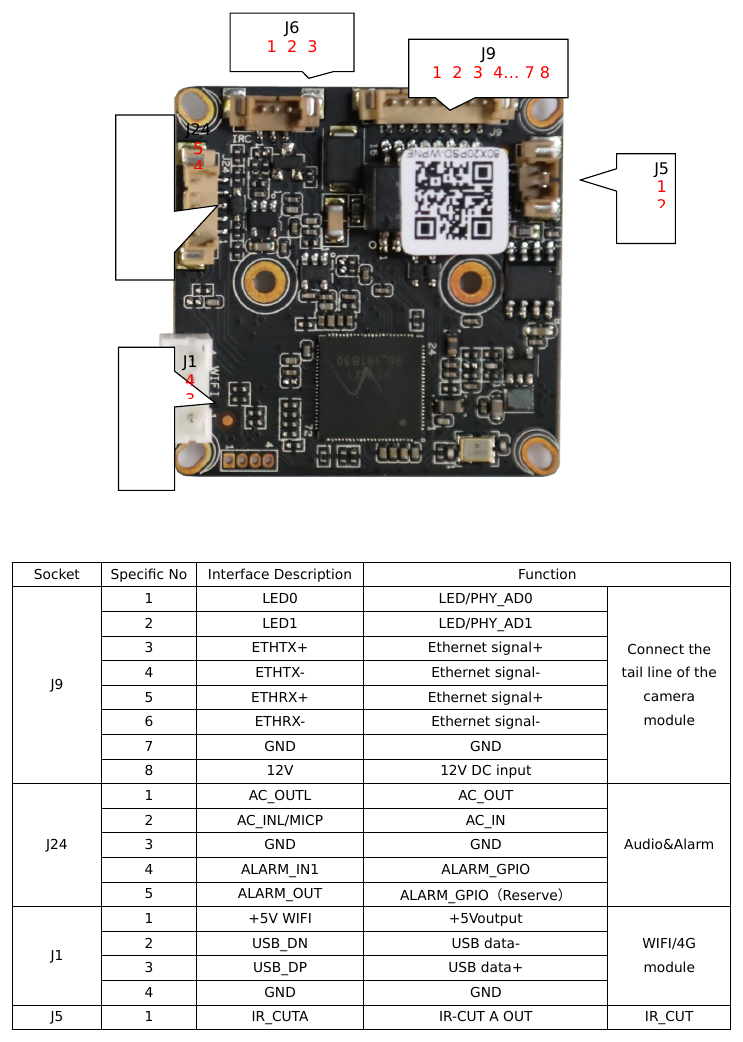

  • front of IPG-80X20PSD-WPNE
