IPG-83H50P-B
5.0M Low illumination CMOS Network Camera Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3516AV100
- Sensor:
- IMX178
- Device IDs:
- 00010850
- Listed:
- 2016
cctvsp.ru
IP camera module IPG-83H50P-B (Hi3516A + IMX178)
Top-of-the-range module for a 5MP IP camera. The 1/1.8'' Sony IMX178 back-illuminated CMOS sensor and the HiSilicon Hi3516A Professional HD IP Camera SoC with h265 support give the camera a resolution of 2590x1944 at 25 frames per second (full real time at maximum resolution).
Note: this module was discontinued long ago. The manufacturer's recommended replacement is the IVG-85HG50PYA-S, with the more sensitive 5MP Sony IMX335 sensor and the more power-efficient Hi3516Ev300 SoC with video analytics and H265 codec support.
Used in premium outdoor and indoor cameras; performs excellently when shooting both daytime and night-time video.
Thanks to Starvis technology (Starvis is Sony's registered trademark for its back-illumination technology), Sony's IMX178 sensor has proven itself excellent at detailed capture of difficult scenes, including in low light.
The module's specification states support for two-way audio, alarm inputs/outputs, and an expansion board with a MicroSD card and WiFi module.
| Sensor | 1/1.8'' Sony Starvis IMX178 Back-Illuminated CMOS image Sensor |
|---|---|
| Resolution | 5Mp (2592x1944) |
| Sensitivity | Day 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR |
| SoC | HiSilicon Hi3516A Professsional HD IP Camera SoC |
Xiongmai
5.0M Low illumination CMOS Network Camera Module
Features
- 1/1.8" SONY IMX178 low illumination CMOS sensor
- Main stream:5MP 2592*1944 @25fps;sub-stream: 1280*720,704*576 @25fps
- Support 3D DNR
- Support ONVIF
- Support for mobile video surveillance(iOS,android)
- Support Web, CMS, platform management software MYEYE,Provide SDK
- Support cloud service, network penetration, alarm information pushed to phone ,etc.
| Model | IPG-83H50P-B / IPG-83H50P-P |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516A),pure hard compression ,watch dog |
| Sensor | 5.0M 1/1.8" SONY IMX178 darklight illumination CMOS ； color 0.0001Lux@F1.2,black/white 0.0001Lux@F1.2 |
| Video compression | H.265++/H.265+/H.265/H.264 support dual stream,AVI;0.1M~10Mpbs variable;1~30f/s variable |
| Image output | Main stream:5MP 2592*1944 @25fps;3MP 2048*1536@25fps sub-stream: 704*576 @25fps |
| Day and night | Support IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone; |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization; |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| USB interface | 1*USB,support WIFI/3G |
| Auto iris | No / one auto iris interface,support DC drive |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| PTZ | 1*RS485,support kinds of PZT protocols |
| Alarm I/O | 2/0 (support alarm input and video link to background) / 2/1 (support alarm input and video link to background) |
| SD Card | Unsupport / Max.32G |
| Anti-lightning | Power anti-lightning ， conform to GB/T17626.5 and IEC61000-4-5 |
| Other function | Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture ； united remote client monitoring sofaware 、 MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring （ iOS ， Android ） |
| Other | DC12V/2A input, power consumption:≤3W,dimension 38mm*38mm |

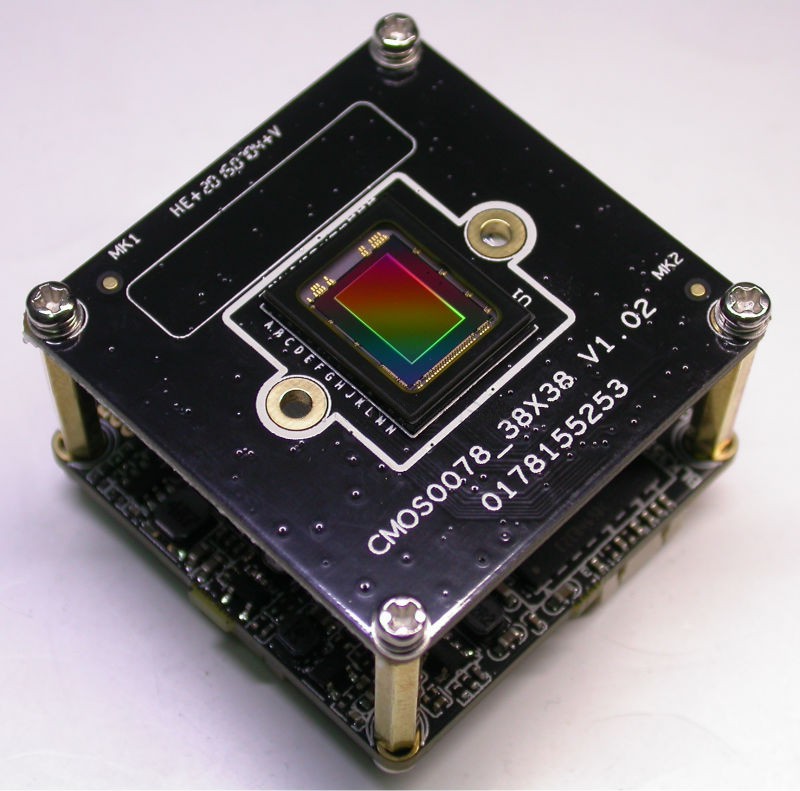

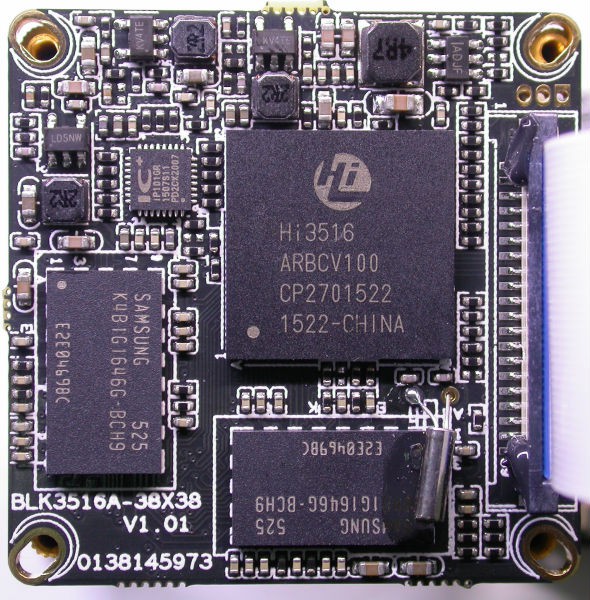

Photos
Files

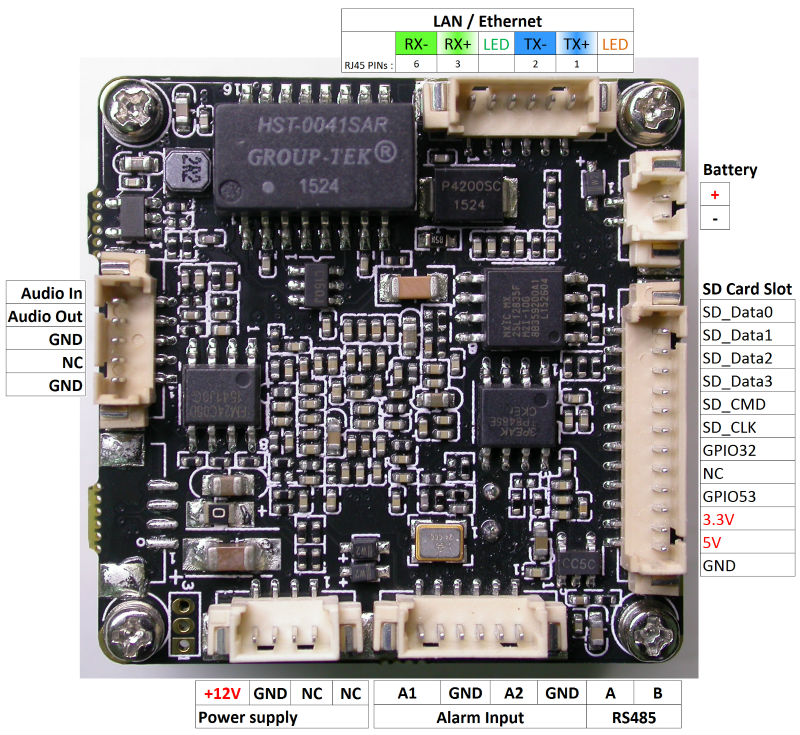

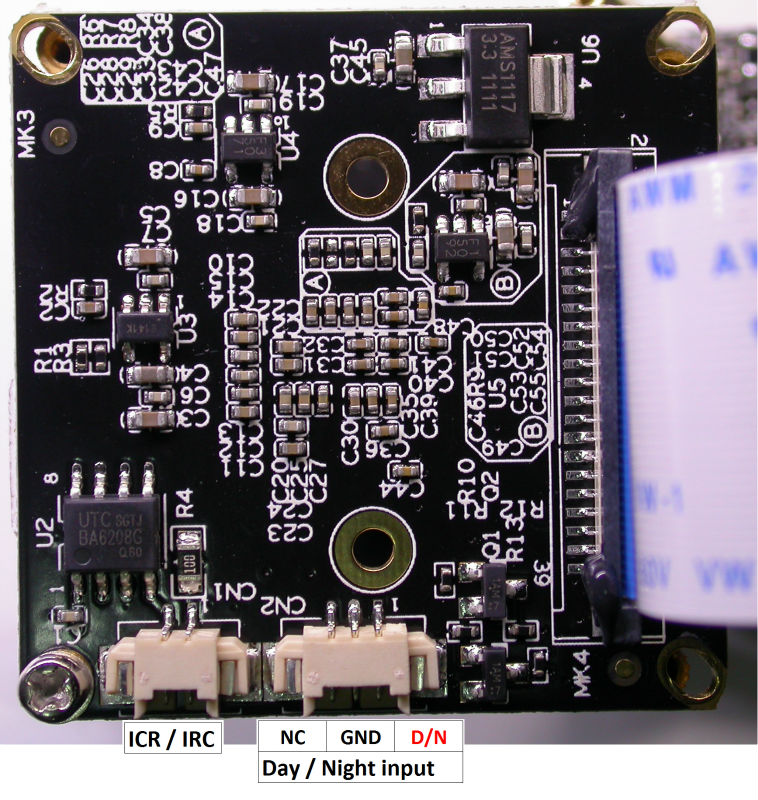

- pinout-2.jpg (pinout, 167 KB)
- pinout-4.jpg (pinout, 169 KB)
- firmware.bin (firmware, 7.5 MB)
- IPG-83H50P-B-manual.pdf (document, 327 KB)
