IVG-85HG50PYA-S

5.0M Black light illumination H.265 AI IP Camera Module · IP Camera Module

Maker:
Xiongmai
Sensor:
IMX335
Device IDs:
000529B2
Listed:
2019

cctvsp.ru

IP camera module IVG-85HG50PYA-S (Hi3516Ev300 + IMX335)

A 5MP IP camera module based on the new Sony IMX335 sensor and a new SoC from Hisilicon, the Hi3516Ev300, with h265 support, at 2592x1944 15 frames per second. It is used in outdoor and indoor cameras for detailed surveillance and performs excellently for both day and night video. The IMX335 is a new sensor from Sony with sensitivity comparable to the IMX178, but thanks to more modern technology and the absence of precious metals it costs considerably less. The Hi3516Ev300 SoC replaced the Hi3516Cv300 and delivers video at 5MP 2592*1944@15fps, 4MP 2560*1440@20fps, 2MP 1920*1080@25fps.

Note: this module has been discontinued. It is now replaced by IVG-G5s, built on the Goke gk7205v300 SoC (the Hi3516Ev300 is now produced under this name at a different fab) with the same Sony IMX335 sensor.

Specifications
Sensor1/2.8'' Sony Starvis IMX335 Back-Illuminated CMOS image Sensor
Resolution5Mp (2592x1944)
SensitivityDay 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR
SoCHiSilicon Hi3516E V300 Professional HD IP Camera SoC

Xiongmai

5.0M Black light illumination H.265 AI IP Camera Module

Features

  • 5.0MP HD Black light illumination resolution,clear and fine images
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support ONVIF;access third party
  • Support various mobile monitoring(iPhone,Android)
  • Provide web、CMS、center platform management software MYEYE,provide SDK development
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelIVG-85HG50PYA-S
System structureEmbedded RTOS,dual-core 32bit DSP(Hi3516EV300),pure hard compression ,watch dog
Sensor5.0M 1/2.8"S IMX335 Black light illumination CMOS sensor,color 0.0001Lux@F1.2,black/white 0.0001Lux@F1.2
Video compressionH.265AI/H.265+ (Compatible with H.265/H.264),support dual stream,AVI;0.1M~10Mpbs variable;1~30f/s variable
Image outputMain stream: 5MP 2592*1944@20fps；4MP 2560*1440@20fps；2MP 1920*1080@25fps; sub-stream: 704*576@25fps;
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/DHCP/NTP/UPnP etc
Extension interfaceN/A
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/O1/0 (support alarm input and video link to background)
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours-10℃～65℃ high temperature stable and reliable testing
Intelligence analysisSupporting human detection, face detection, and supports intelligent functions such as customized number statistics, etc.
Other functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W,
Dimension38mm*38mm
OtherSupport POE power supply (optional)，The drive voltage of the light board is at 3.3V

Photos

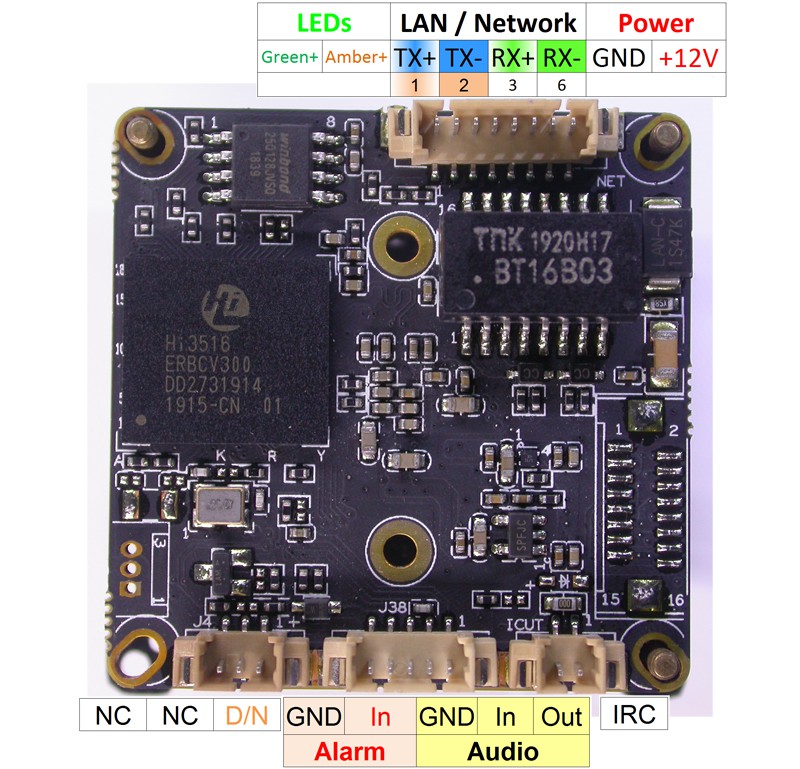

  • photo of IVG-85HG50PYA-S

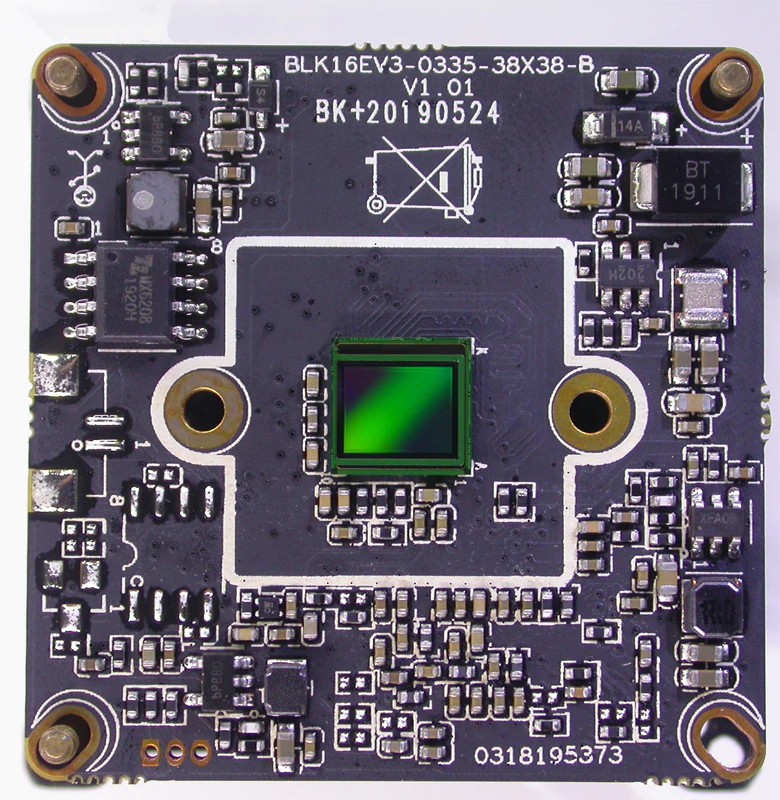

  • front of IVG-85HG50PYA-S
