IPG-HP201A-S-F36
2.0M Hi3516D+AR0237 H.265 IP All-in-One Module(3.6mm) · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- HI3516DV100
- Sensor:
- AR0237
- Listed:
- 2016
cctvsp.ru
IP camera module IPG-HP201A-S-F36 (Hi3516D + AR0237)
2MP IP camera module. Sensor: 1/2.7'' ON Semiconductor AR0237; SoC: HiSilicon Hi3516D Professional HD IP Camera SOC; resolution 1920x1080 at 25 frames per second (real time). Used in advanced-series outdoor and indoor cameras; performs excellently when shooting both daytime and night-time video. Lately it has been used instead of IMX322-based modules, matching the latter in quality. This is a single-board module with standard 38x38mm dimensions, used in cameras with standard mounting positions. Distinctive features include support for the new h265 compression protocol, which saves disk space, and a high-quality sensor with a good night-time picture.
Note: this module is being discontinued. Recommended replacements are the two-board IVG-HP200S-AE with the 2MP SC2235 sensor or the single-board IPG-80H20PT-S with the F22 sensor. Both are built on the Hi3516Cv300 SoC with support for h265 and video analytics.
An IR-cut filter and an M12 3.6mm lens are also included.
| Sensor | 1/2.7'' Aptina AR0237 Full HD Digital Image Sensor |
|---|---|
| Resolution | 2Mp (1920x1080) |
| Sensitivity | Day 0.1 lux / night 0.01 lux (F1.2) / 0 lux with IR |
| SoC | HiSilicon Hi3516D Professional HD IP Camera SoC |
| Lens | Fixed M12 3.6 mm |
Xiongmai
2.0M Hi3516D+AR0237 H.265 IP All-in-One Module(3.6mm)
Features
- 2.0M 1/2.7" AR0237 low illumination CMOS sensor
- Support 3D DNR, DWDR
- Support ONVIF;Support Third-party NVR
- Support for mobile video surveillance(iOS,android)
- Support Web, CMS, platform management software MYEYE,Provide SDK
- Support cloud service, network penetration, alarm information pushed to phone ,etc.
| Model | IPG-HP201A-S-F36 |
|---|---|
| System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516D),pure hard compression ,watch dog |
| Sensor | 2.0M 1/2.7" AR0237 low illumination CMOS sensor ,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 |
| Video compression | H.265,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable |
| Image output | Main stream: 1920*1080,1280*720;sub-stream: 704*576; |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Lens | Frequent 3.6mm M12 Lens |
| Day and night | Support IR-CUT |
| Noise reduction | Support 2D/3D |
| Wide dynamic | Support digital |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| Auto iris | No |
| SD Card | Unsupport |
| Reliability | Comprehensive lightning protection, in line with national and international standards; 7 * 24 hours 65 ℃ high temperature stable and reliable testing (including mounted machine testing) |
| Other function | Support OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK; |
| ONVIF | Support |
| Mobile monitoring | Support multiple mobile monitoring（iOS，Android） |
| Power | DC12V/2A input, power consumption:≤3W |
| Dimension | 38mm*38mm |
| Explain | Support POE power supply (optional), not support any custom |

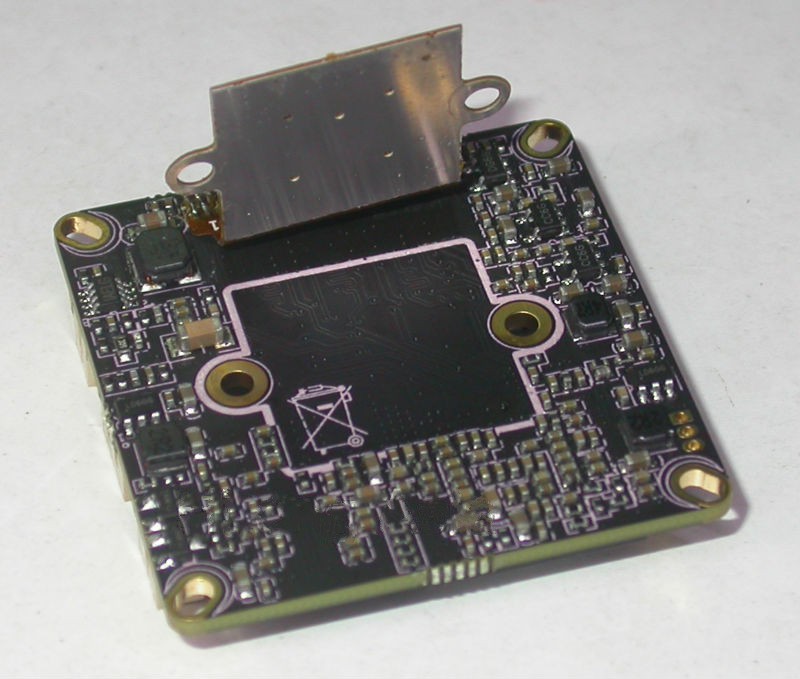

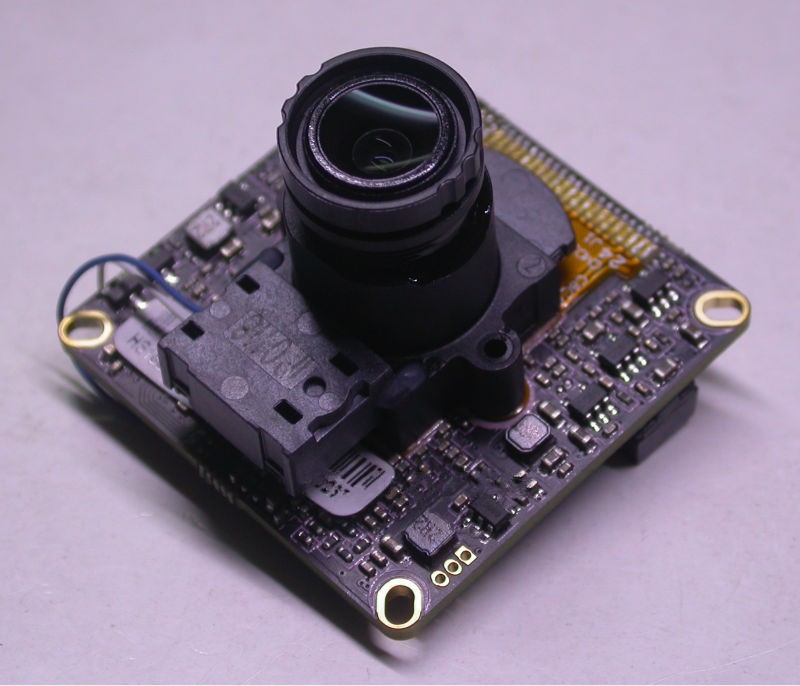

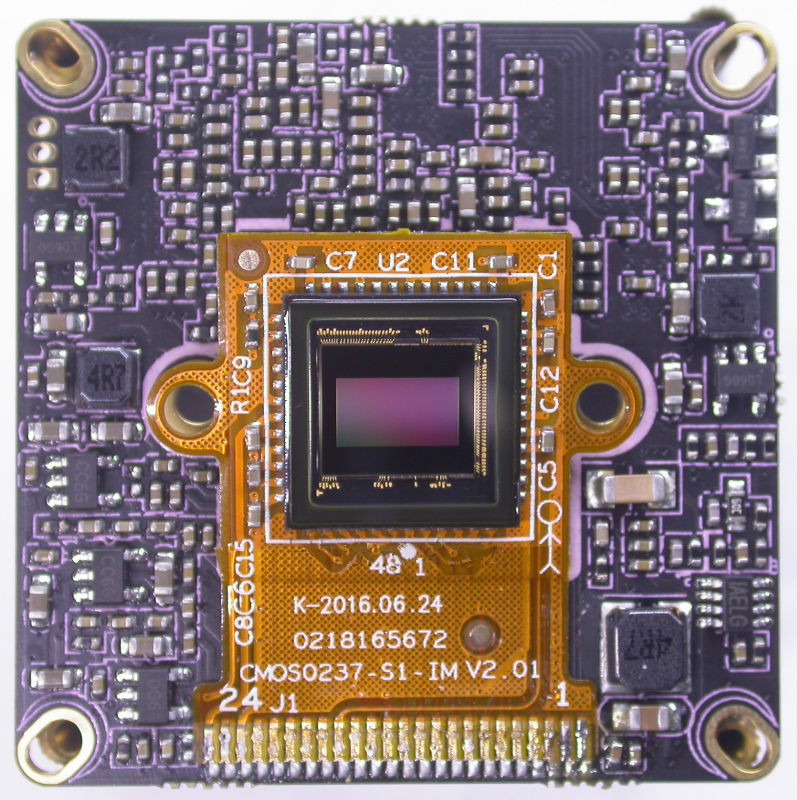

Photos
Files

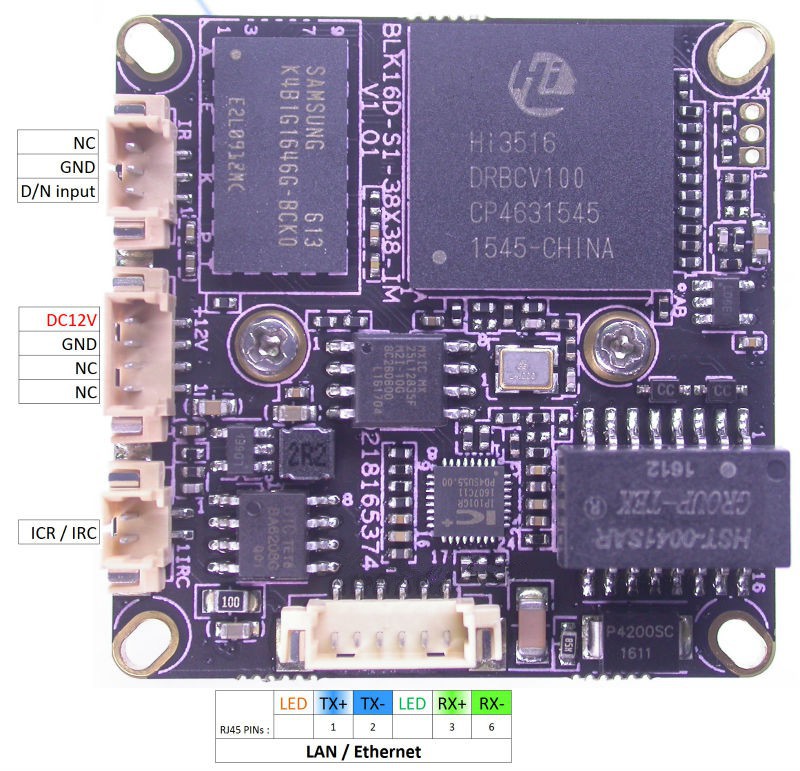

- pinout-2.jpg (pinout, 176 KB)
