IVG-85X30PSA-ST
3.0M Black-light H.265 Smart IP Camera Module · IP Camera Module
- Maker:
- Xiongmai
- SoC:
- XM535AI
- Sensor:
- SC3335, SC3338
- Listed:
- 2021
cctvsp.ru

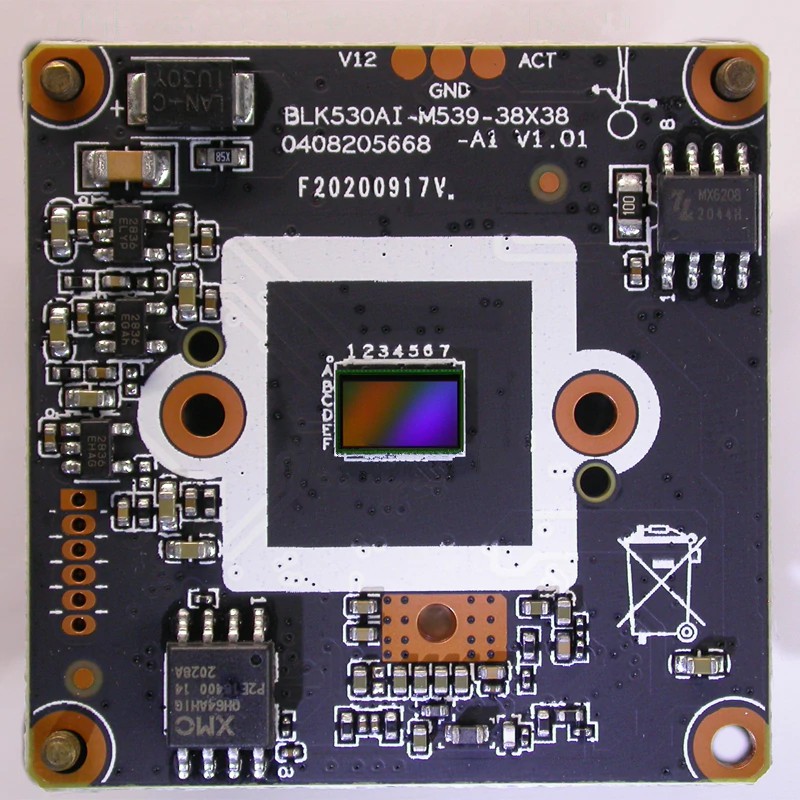

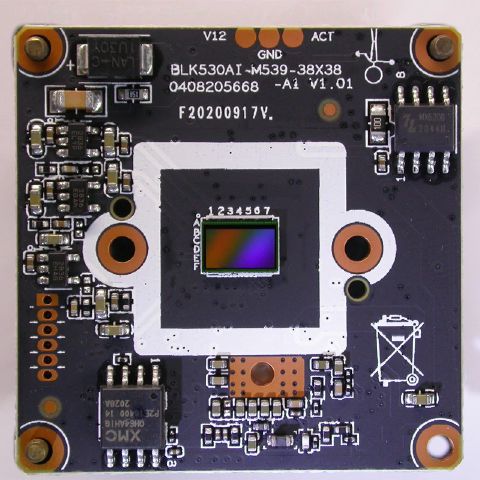

IP camera module IVG-85X30PSA-ST (XM535AI + SC3335)
A 3MP IP camera module based on the custom Smartsens SC3335 sensor and a new SoC from Xiongmai, the XM535AI, with h265 support, at 1920x1080 25 frames per second (real-time FullHD). It is used in budget outdoor and indoor cameras and performs well for both day and night video. The Smartsens SC2235P sensor was ordered by Xiongmai from Smartsens specifically for its own products, and the in-house XM530AI SoC not only lowered the final cost of the product but also improved its performance by reaching 25fps (as opposed to 20fps with the Hi3516E SoC). The SC2235P is made with an improved process compared with the SC2235, while having the same characteristics and a lower cost.
The module replaced the IVG-85X20PS-S; the SoC is the same, while the sensor has become more sensitive and higher in resolution.
The module can be used to repair or upgrade a camera or to build a new one. On request, the module can be flashed with firmware supporting autofocus and PTZ functions (giving the IVG-85X30PSA-AF-2812) or with firmware supporting the IPeye cloud (this service allows recording directly to the cloud. This means that only the camera needs to be installed on site; a recorder is no longer required! Cloud recordings are viewed in a browser or in a convenient mobile app).
| Sensor | 1/2.9'' SmartSens SC2235P CMOS sensor |
|---|---|
| Resolution | 2Mp (1920x1080) |
| Sensitivity | Day 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR |
| SoC | Xiong Mai XM530AI |
Xiongmai
3.0M Black-light H.265 Smart IP Camera Module
Features
- Support line-crossing and human detection; other intelligent functions available on request
- 3.0MP resolution, black-light low-light performance, clear and fine images
- Support 2D/3D noise reduction, digital WDR
- Advanced H.265AI/H.265+ (compatible with H.265/H.264) video compression, ultra-low bitrate, HD image quality
- Lightning protection, compliant with GB/T17626.5 and IEC61000-4-5
- Support ONVIF, connects to third-party NVRs/platforms; mobile monitoring (iOS, Android)
- Support web client, CMS, MYEYE central management platform; SDK available
- Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
| Specifications | IVG-85X30PSA-ST |
|---|---|
| System architecture | Embedded RTOS, dual-core 32-bit DSP (XM535AI), pure hardware compression, watchdog |
| Sensor | 3.0M 1/2.8" SC3338 black-light CMOS sensor; color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 |
| Video processing | H.265AI/H.265+ (compatible with H.265/H.264) encoding, dual stream, AVI format; bitrate 0.1M~8Mbps adjustable; frame rate 1~30 fps adjustable |
| Video output | Main stream: 2304*1296@20fps, 1920*1080@25fps; sub-stream: 800*448@25fps |
| Shutter | 1/50 (1/60) s to 1/10000 s |
| Lens | None |
| Day/night mode | Support IR-CUT; IR-CUT coil resistance 20Ω, drive current under 200mA, voltage 3.5V-6V |
| Noise reduction | Support 2D/3D noise reduction |
| WDR | Support digital WDR |
| Auto iris | None |
| Audio processing | G.711A codec, supports two-way audio intercom and audio/video synchronization |
| Audio interface | 1ch input, level 2Vp-p, impedance 1kΩ, supports pickup input |
| Network interface | 1*RJ45 Ethernet port, 10/100M adaptive; supports RTSP/FTP/DHCP/NTP/UPnP and other network protocols (combined with power connector) |
| Expansion interface | None |
| Signal interface | 1 photoresistor interface, 1 IR-CUT driver interface; photoresistor input linked with IR-CUT and IR LEDs |
| PTZ interface | None |
| Motor interface | None |
| Alarm I/O | None |
| WIFI antenna connector | None |
| Reset button interface | None |
| SD card | None |
| Reliability | Full lightning protection, meets national and international standards; stable and reliable in 7*24h -10℃~65℃ high-temperature testing (including complete-unit testing) |
| Intelligent analysis | Support face detection (at 1080P), human detection; other intelligent functions available on request |
| Service functions | Support web configuration, OSD, motion detection; alarm-center notification and screen pop-up on motion alarm; MJPEG snapshots; client remote monitoring software, MYEYE platform and other applications; complete SDK |
| ONVIF protocol | Supported |
| Mobile monitoring | Support mobile monitoring (iOS, Android) |
| Power supply | Power: DC12V/2A, consumption: ≤3W |
| Board dimensions | 38mm*38mm |
| Other | Support PoE power (optional); one-key reset not supported; LED board drive voltage 3.3V |
Photos
Files

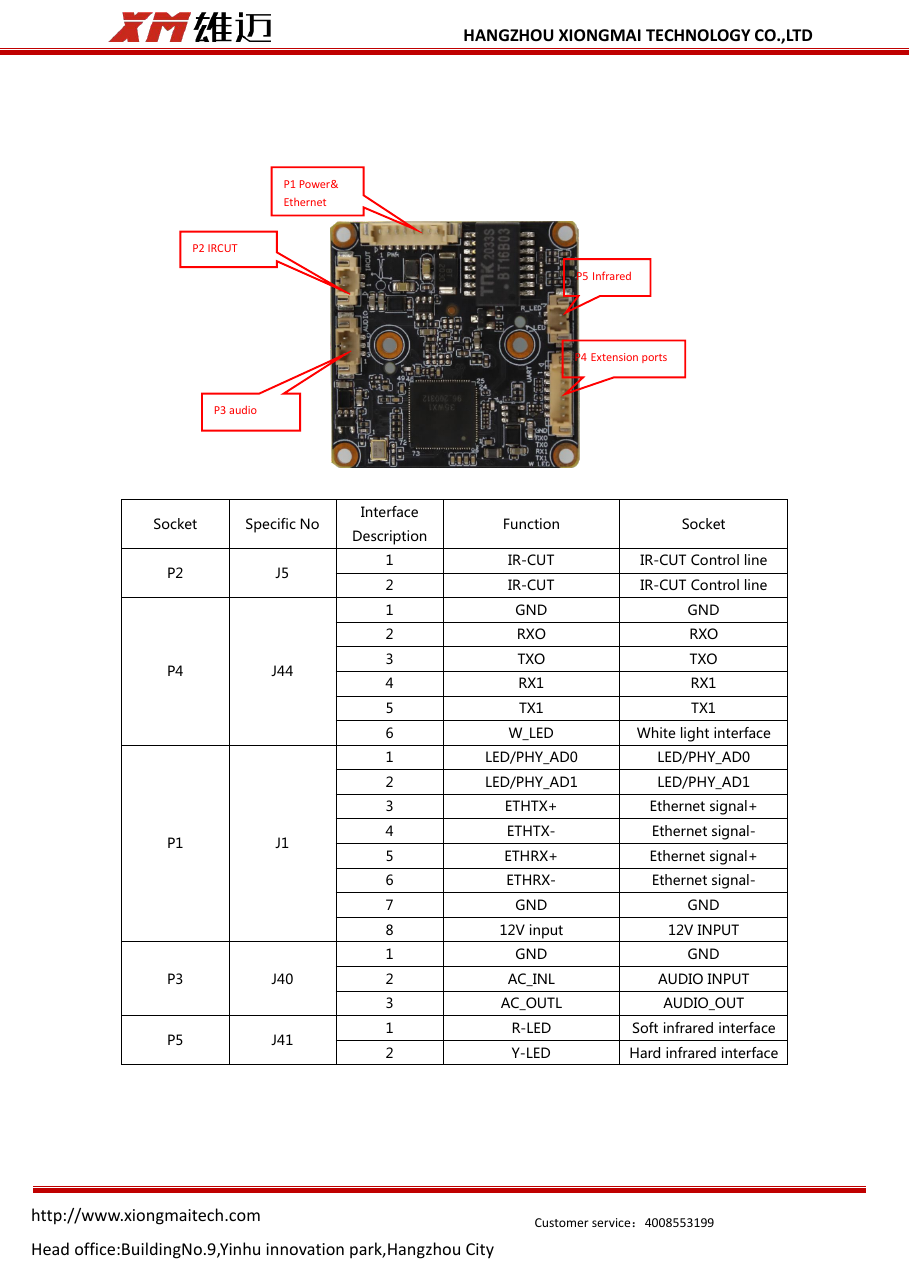

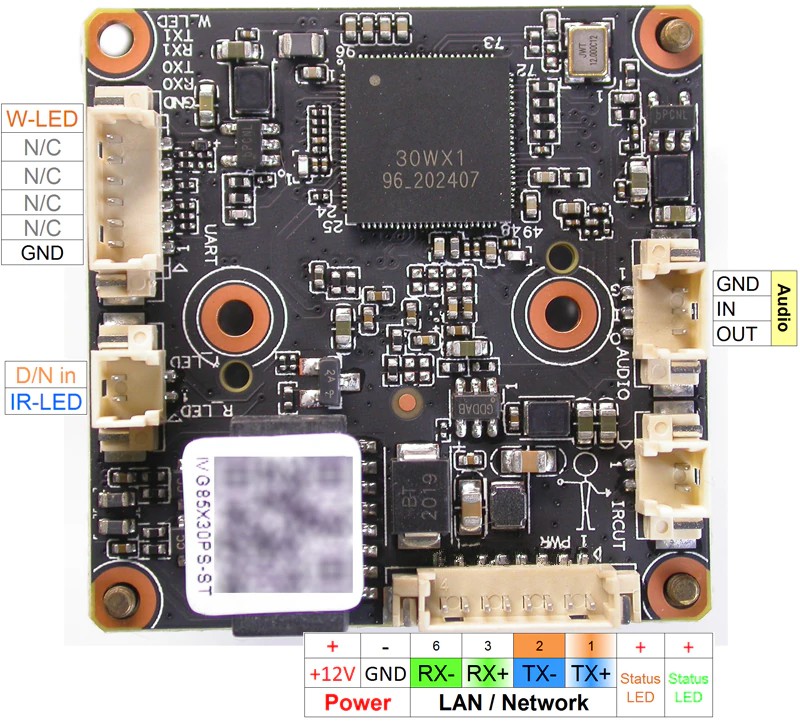

- pinout-2.jpg (pinout, 183 KB)
