IVG-G3S

IP Camera Module

Maker:
Xiongmai
Device IDs:
000659AG
Listed:
2024

JFTech

3.0M Black Light H.265 AI IP Camera Module

Supporting human detection, face detection, and support to customize other intelligent functions

3.0MP HD Black light illumination resolution,clear and fine images;

Support 2D/3D noise reduction,digital wide dynamic;

Advanced H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image;

Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。

Support ONVIF;access third party;

Support various mobile monitoring(iPhone,Android);

Provide web、CMS、center platform management software MYEYE,provide SDK development

Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed

Specifications
System structureEmbedded RTOS,dual-core 32bit DSP(GK7205V210),pure hard compression ,watch dog
Sensor3.0M 1/2.8" Black light illumination CMOS sensor,color 0.0001Lux@F1.2,black/white 0.0001Lux@F1.2
Video compressionH.265 +(Compatible with H.265/H.264) support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image outputMain stream: 2304*1296@20fps，1920*1080@25fps; sub-stream: 800*448@25fps
Shutter1/50(1/60)s to 1/10,000s
LensN/A
Day and nightSupport IR-CUT,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reductionSupport 2D/3D
Wide dynamicSupport digital Wide dynamic
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc
Extension interfaceSupport external SD、WIFI to expand other functions
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/ON/A
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
Other functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK;
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
Intelligence analysisSupporting human detection, face detection, and supports intelligent functions such as customized number statistics, etc.
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
PowerDC12V/2A input, power consumption:≤3W,
Dimension38mm*38mm
OtherThe drive voltage of the light board is at 3.3V

Photos

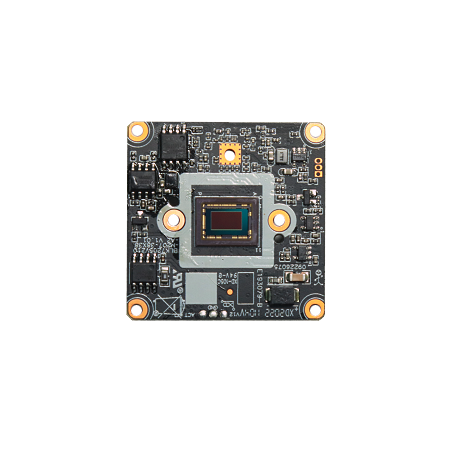

  • front of IVG-G3S
