IVG-HP500NR-SY
5.0M Face Capture IP Camera Module · Intelligent analysis module
- Maker:
- Xiongmai
- SoC:
- HI3516DV100
- Sensor:
- PS5510
- Listed:
- 2018
Xiongmai
5.0M Face Capture IP Camera Module
Features
- Support face detection and tracking in a defined area, capturing clear face images
- Support real-time matching of captured faces against a face database (requires PC client)
- 5.0MP resolution, clear and fine images, 2D/3D noise reduction, WDR
- Advanced H.265++/H.265+/H.265/H.264 video compression, ultra-low bitrate, ultra HD image quality
- Lightning protection, compliant with GB/T17626.5 and IEC61000-4-5
- Support ONVIF, connects to third-party NVRs/platforms; mobile viewing (iOS, Android)
- Support cloud technologies: NAT traversal, NVR-camera pairing, alarm push notifications to phones
| Specifications | IVG-HP500NR-SY |
|---|---|
| System architecture | Embedded RTOS, dual-core 32-bit DSP (Hi3516DV100), pure hardware compression, watchdog |
| Sensor | 5.0M 1/2.5" PS5510 CMOS sensor; color 0.1Lux@F1.2, black/white 0.01Lux@F1.2 |
| Video processing | H.265++/H.265+/H.265/H.264 video encoding, dual stream, AVI format; bitrate 0.1M~10Mbps adjustable; frame rate 1~30 fps adjustable |
| Video output | Main stream: 5MP 2592*1944@15fps; 4MP 2560*1440@25fps; 3MP 2048*1536@25fps; sub-stream: 704*576@25fps |
| Shutter | 1/50 (1/60) s to 1/10000 s |
| Lens | None |
| Snapshot size | Captures faces as small as 70*70 pixels |
| Snapshot | Support capture of profile faces, partially covered faces and faces of all skin tones |
| Snapshot performance | Face capture speed >5 faces/s |
| Day/night mode | Support IR-CUT; IR-CUT coil resistance 20Ω, drive current under 200mA, voltage 3.5V-6V |
| Noise reduction | Support 2D/3D noise reduction |
| WDR | Support digital WDR |
| Auto iris | None |
| Audio processing | G.711A codec, supports two-way audio intercom and audio/video synchronization |
| Audio interface | 1ch input, level 2Vp-p, impedance 1kΩ, pickup input; 1ch output, impedance 16Ω, 30mW output power, for headphones or amplifier |
| Network interface | 1*RJ45 Ethernet port, 10/100M adaptive; supports RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols |
| Expansion interface | None |
| Signal interface | 1 photoresistor interface, 1 IR-CUT driver interface; photoresistor input linked with IR-CUT and IR LEDs |
| PTZ interface | None |
| Motor interface | None |
| Alarm I/O | 1/0 (alarm input linked with recording and back end) |
| WIFI antenna connector | None |
| Reset button interface | None |
| SD card | Not supported |
| Reliability | Full lightning protection, meets national and international standards; stable and reliable in 7*24h 65℃ high-temperature testing (including complete-unit testing) |
| Intelligent analysis | Support face detection; with PC client or NVR: black/white lists and face recognition; basic analytics: blur detection, scene change, video tampering |
| Service functions | Support web configuration, OSD, motion detection; alarm-center notification and screen pop-up on motion alarm; MJPEG snapshots; client remote monitoring software, MYEYE platform and other applications; complete face recognition SDK |
| ONVIF protocol | Supported |
| Mobile monitoring | Support mobile monitoring (iOS, Android) |
| Power supply | Power: DC12V/2A, consumption: ≤3W |
| Board dimensions | Dimensions: 38mm*38mm |
| Description | Support PoE power (optional); one-key reset not supported; LED board drive voltage 3.3V |
Photos
Files

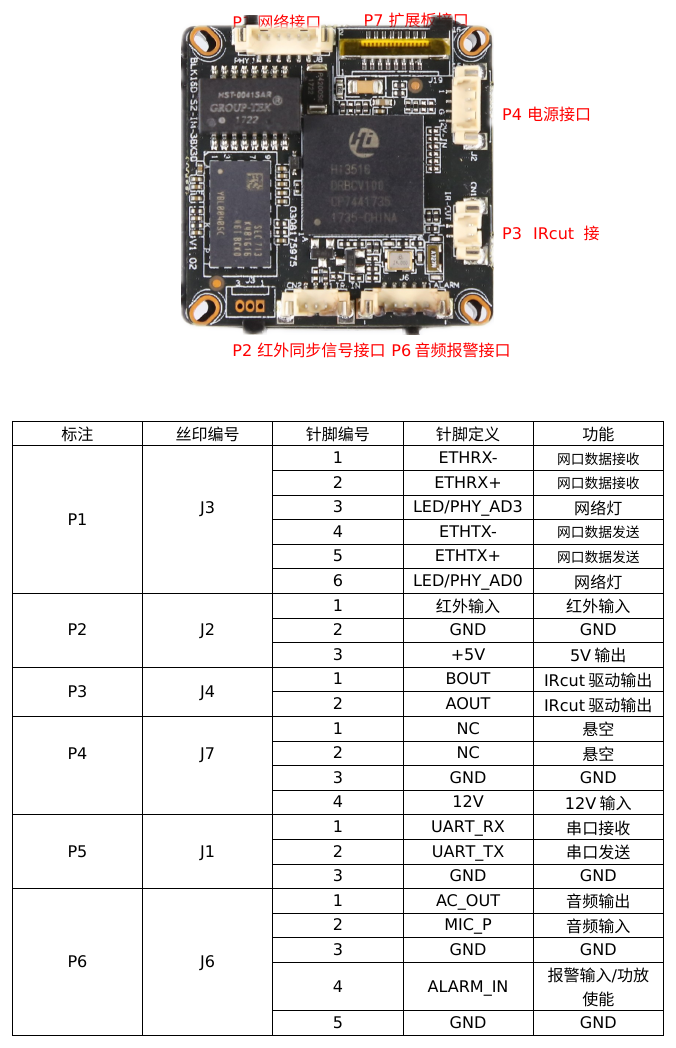

- IVG-HP500NR-SY-pinout-1.png (pinout, 271 KB)

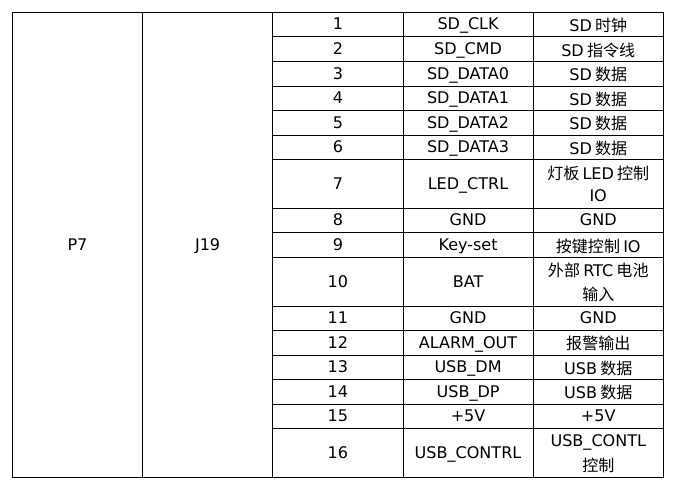

- IVG-HP500NR-SY-pinout-2.png (pinout, 52 KB)
- IVG-HP500NR-SY-datasheet.docx (document, 3.0 MB)
- IVG-HP500NR-SY-datasheet.pdf (document, 272 KB)
- IVG-HP500NR-SY-interface-zh.docx (document, 3.0 MB)
- IVG-HP500NR-SY-interface-zh.pdf (document, 317 KB)
- IVG-HP500NR-SY-parameters.pdf (document, 473 KB)
