IVG-N83020S-T
H.265 2.0M Starlight 30x Optical Zoom Camera Module · AF module
- Maker:
- Xiongmai
- Listed:
- 2018
Xiongmai
H.265 2.0M Starlight 30x Optical Zoom Camera Module
Features
- 2M HD image quality
- Support intelligent auto-tracking
- High-performance starlight CMOS sensor
- In-house dedicated autofocus chip for fast, accurate focusing
- Powerful zoom, excellent autofocus performance
- Support auto iris and electronic shutter for different surveillance conditions
- Built-in network encoding, supports ONVIF and GB28181 protocols
- Support multi-language OSD
- Support two-way audio
- Support local SD card storage
| Specifications | IVG-N83020S-T |
|---|---|
| Image sensor | 1/2.8" SONY CMOS |
| Signal format | PAL/NTSC |
| Encoding standard | H.265++/H.265+/H.265/H.264 |
| Frame rate | 50Hz:25fps(1920×1080),25fps(1280×720) 60Hz:30fps(1920×1080),30fps(1280×720) |
| Min. illumination | Color: 0.0005Lux@F1.6, B/W: 0.0005Lux@F1.6 |
| Electronic shutter | 1/1 ~ 1/30000 s |
| Day/night mode | Support IR-CUT |
| Scanning system | Progressive |
| Sync | Internal sync |
| WDR | Supported |
| Sharpness adjustment | Supported |
| Focus | Auto/Manual/One-push AF |
| Noise reduction level | 0/1/2/3/4/5 |
| Zoom speed | 4S |
| Focus control | Manual/Auto |
| Lens initialization | Built-in |
| Optical zoom | 30x, 4.3 to 129mm (F1.6 to F5.0) |
| Minimum focus distance | 100mm ~ 1000mm (wide ~ tele) |
| Maximum viewing range | Horizontal 55.4~2.90 |
| Network interface | 1 combined network/power interface, 10/100M adaptive; supports RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols |
| Micro SD card | Supported |
| Service functions | Support web configuration, OSD, real-time video transmission; front-end recording linked to motion detection and I/O alarms; front-end playback/download; alarm-center notification and screen pop-up on motion and I/O alarms; JPEG snapshots; unified client remote monitoring software, MYEYE platform and other applications; complete SDK |
| Storage environment | （-20°C ~+70°C/20﹪to 95﹪RH） |
| Operating temperature | （-10°C ~ +60°C/20﹪ to 80﹪RH） |
| Power supply | DC 9V-12V (recommended: 12V) |
| Power | MAX:6W |
| Dimensions (mm) | 87.5mm x 50mm x 60mm |
| Weight | 286g |
Photos
Files

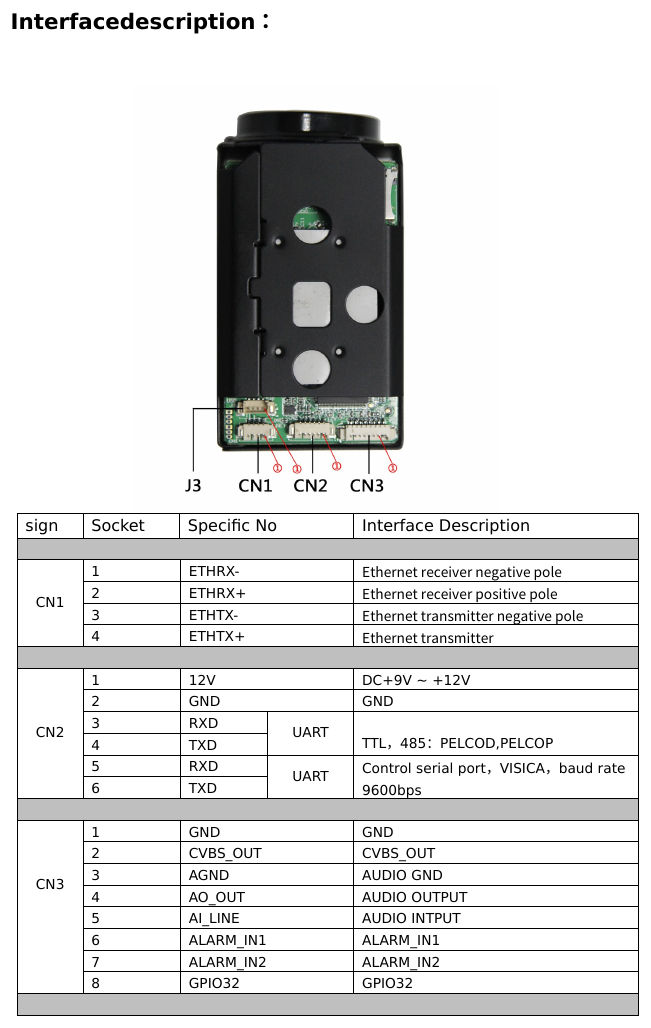

- IVG-N83020S-T-pinout-1.png (pinout, 162 KB)
- IVG-N83020S-T-datasheet.docx (document, 1019 KB)
- IVG-N83020S-T-datasheet.pdf (document, 240 KB)
- IVG-N83020S-T-datasheet-2.pdf (document, 1.4 MB)
