JF-IPC-EO8340PG-IR4R-A
Network Camera
- Maker:
- Xiongmai
- SoC:
- GK7205V200
- Device IDs:
- J91659SQ
- Listed:
- 2024
JFTech

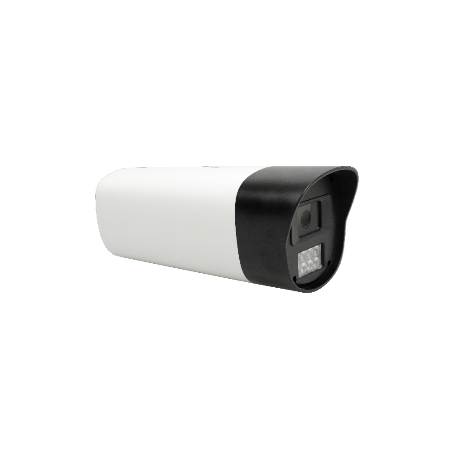

4.0MP Dual-light Bullet IP Camera EO Series
JF-IPC-EO8340PG-IR4R-A is a waterproof bullet network camera, suitable for places with low or no light conditions and high definition image quality, such as roads, warehouses, underground parking lots, bars, pipelines, parks, etc.
| Sensor | 1/2.8" low illumination CMOS sensor |
|---|---|
| Min.illumination | Color:0.01Lux @(F1.2,AGC ON);0 Lux with IR; B/W:0.001 Lux @ (F1.2,AGC ON);0 Lux with IR |
| Shutter Time | 1/50(1/60)s to 1/10,000s |
| Lens | HD lens 2.8/3.6/6mm(optional) |
| Lens Mount | M12 |
| Day&Night | IR cut filter with auto switch |
| Video Compression | H.265AI(compatible H.265/H.264) HighProfile, JPEG snapshot |
| Bite Rate | 0.1Mbps~10Mbps |
| Audio Compression | G.711a |
| Max.image reolution | 2560*1440 |
| Frame Rate | 2560*1440@18fps,2304*1296@20fps,1920*1080@25fps |
| Setting | Saturation, brightness and contrast are adjustable through IE browser or client software. |
| Storage | Network storage |
| Alarm | Face detection , human detection, Motion detection, video loss, video block, etc. |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP, (HTTPS, SIP, 802.1x, IPv6 option |
| Features | anti-flicker, dual-stream, heartbeat, |
| Ethernet | 1*10/100Mbps Ethernet port, RJ45 port |
| Audio I/O | 1/0 |
| Temperature | -10℃-＋60℃ |
| Humidity | 10%-90% RH |
| Power | DC12V±10% |
| IR Range | 8*White Light 40-50 meters |
| Consumption | MAX 5W |
| Material | ABS |
| waterproof | IP67 |
| Weight | Around 300g |
| Dimension | 206.7mm*98.9mm*95.3mm |
Photos
Files
- Parameters-for-JF-IPC-EO8340PG-IR4R-A.pdf (document, 271 KB)
