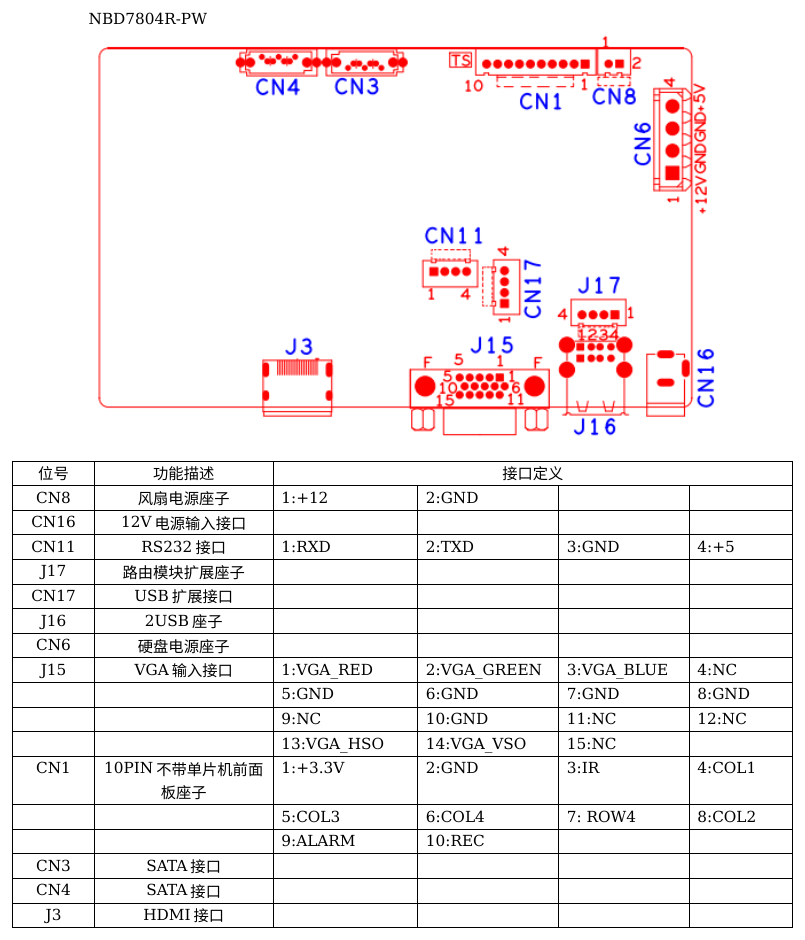

NBD7804R-PW

R Series NVR WiFi Board · WiFi Kit

Xiongmai

R Series NVR WiFi Board

Support VGA HD output
Support ONVIF;access third party
Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
Support web, CMS, center platform management software MYEYE, provide SDK development
Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.)

Specifications
Model	NBD7804R-FW / NBD7804R-PW
System	Main processor / Hi3520D
Operating System	Embedded Linux
System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup
Interface	Operator interface / 16-bit true color graphic menu operation interface, support mouse operation
Preview	1/4
Video	Video input (IP) / 4960P / 41080P
Video standards	PAL(625TVL,50f/s)；NTSC(525TVL,60f/s)
Video compression	H.264
Display quality	Max 1920*1080
Playback quality	4960P / 41080P
Decode	4960P / 41080P
Motion detection	Support(depend on camera)
Audio	Audio compression / G.711A
Intercom	Unsupport
Record & playback	Recording mode / Manual>Alarm>Dynamic Detection>Timing
Local payback	4960P / 41080P
Search mode	Search by Time/Calendar/Event/Channel
Storage & Backup	Space occupation / Video：CIF 4~5G/daychannel， D1 8~10G/daychannel；960H 12G~20G/daychannel 720P 20~30G/daychannel； 1080P ~40G/daychannel；Audio：691.2M/daychannel
Record storage	HDD、Network
Backup mode	Network backup, USB hard disk, USB burner, SATA burner
External interface	Video output / 1ch VGA，1ch HDMI HD output
Audio I/O	0/0
Alarm I/O	0/0
Network interface	4*RJ45 10M/100M Adaptive Ethernet port+4ch WIFI
USB interface	2*USB2.0 ports
HDD	2*SATA(Up to 8TB for each disk)
General	PTZ control / Control PTZ device by network
ONVIF	Support
Power supply	12V/4A / Power Consumption
Work environment	Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp
Dimension	135mm(L)81mm(W),77mm(L)80mm(W)
Weight	A total of about 146g
