ZX-Z60

IP camera module

Maker:
Anjoy Vision
Listed:
2026

Anjoy Vision

SVAC/H.265 network camera module

Features

  • 6MP CMOS sensor
  • SVAC2.0, H.265 encoding supported;
  • Two lighting control signals supported: PWM IR, PWM white light;
  • Supports software light sensing: full-colour mode, IR mode;
  • Supports two-way audio, voice announcements, custom voice
  • GB/T 28181, ONVIF, RTSP, GA/T 1400, China Unicom, China Telecom and other platform protocols supported
  • Supports character overlay, image flip;
  • IP address filtering, POE expansion supported;
  • Onboard GM (Guomi) security chip; supports GM cryptographic algorithms
  • Built-in NPU (Neural Network Processor), 2Tops compute (INT8)
Specifications
ItemDetailed parameters
SoCVC0728BUNA (BGA package)
Image sensor1/2.45” 6MP CMOS sensor
NPU compute2Tops （INT8）
Video processingSVAC2.0, H.265 video encoding; bitrate adjustable 0.1M~7Mpbs;
Image outputMain stream: 30FPS@(3200×1800, 2560×1440, 1080P);
Audio interfaceAudio: 1 ch line input, 2 ch output (1 ch active, 1 ch SPK 8Ω2W);
Audio processingG.711 encoding; two-way voice intercom; audio-video synchronisation;
IR-CUT interfaceIntegrated IR-CUT switching circuit; automatic/manual/scheduled control of IRCUT day/night mode
Network interface1 × RJ45 Ethernet interface, 10/100M auto-negotiating;
TF card interfaceExternal TF card expansion, up to 512G
LED board interfacePWM IR, PWM warm light;
IO interfaceSupports motorised zoom and autofocus interface; requires a zoom lens, a zoom control board and zoom firmware
ReliabilityFull lightning protection for power and network, compliant with national standard GB/T17626.5 and international standard IEC61000-4-
FunctionsSupports OSD, occlusion alarm, video loss, privacy masking; supports real-time audio and video transmission;
Network protocolsHTTP/RTSP/DHCP/NTP/ONVIF/P2P and other network protocols; optional GB28181,
Power supplyDC12V power input interface, 150mA
Operating conditions-40~+85℃
Dimensions38*38 mounting holes (sensor board 38*38 + mainboard 50*50)

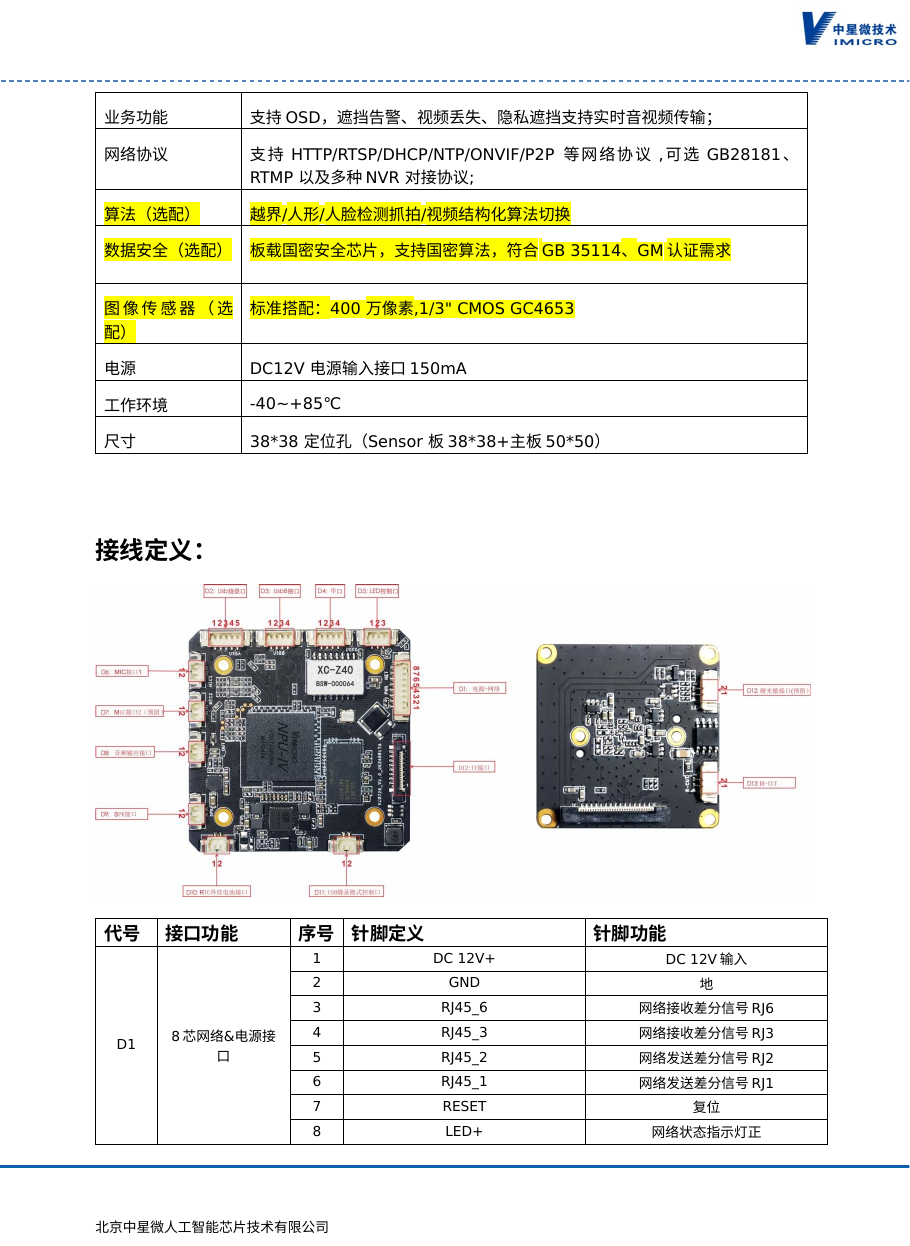

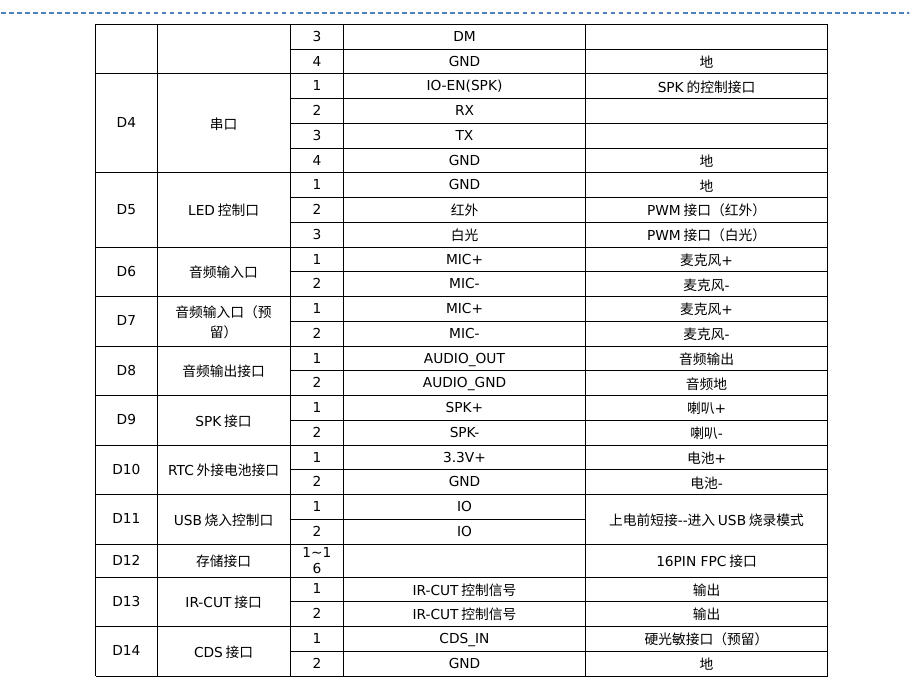

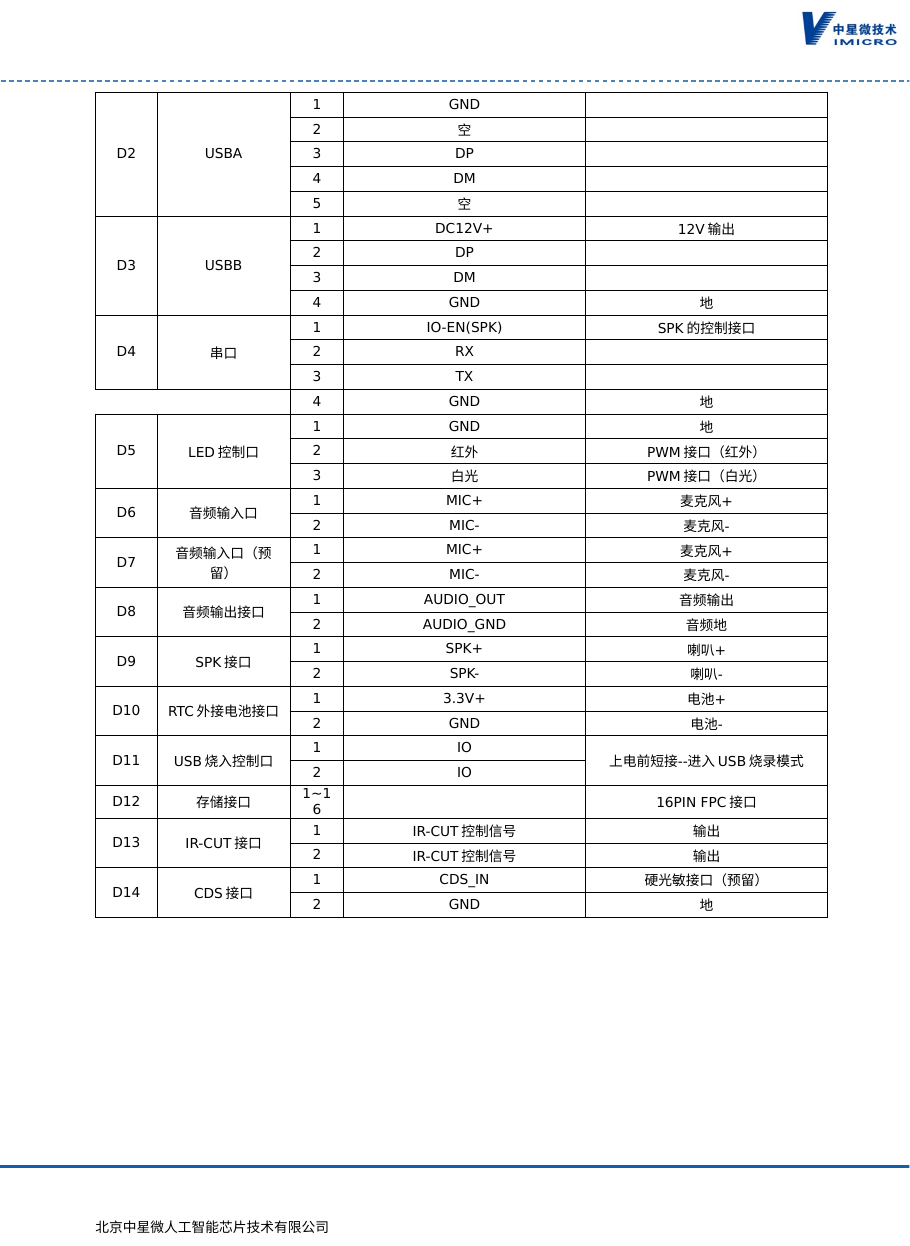

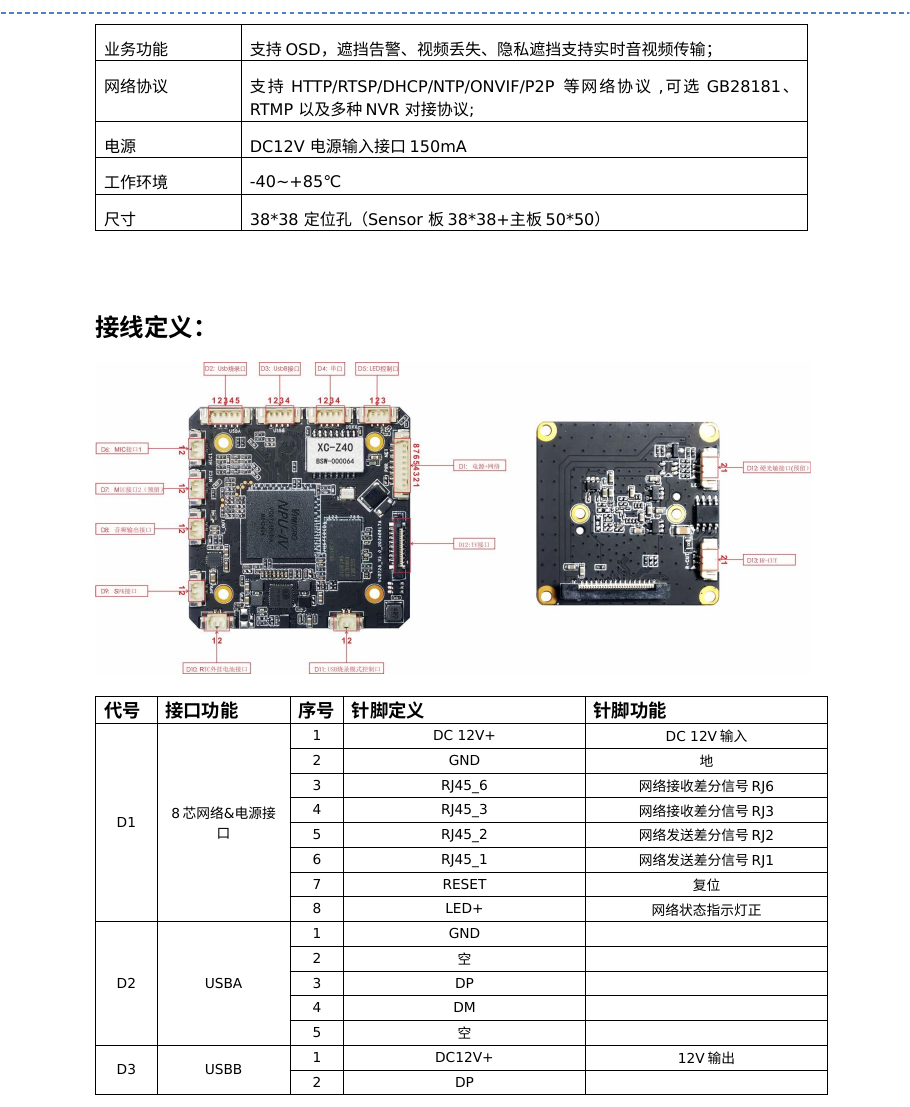

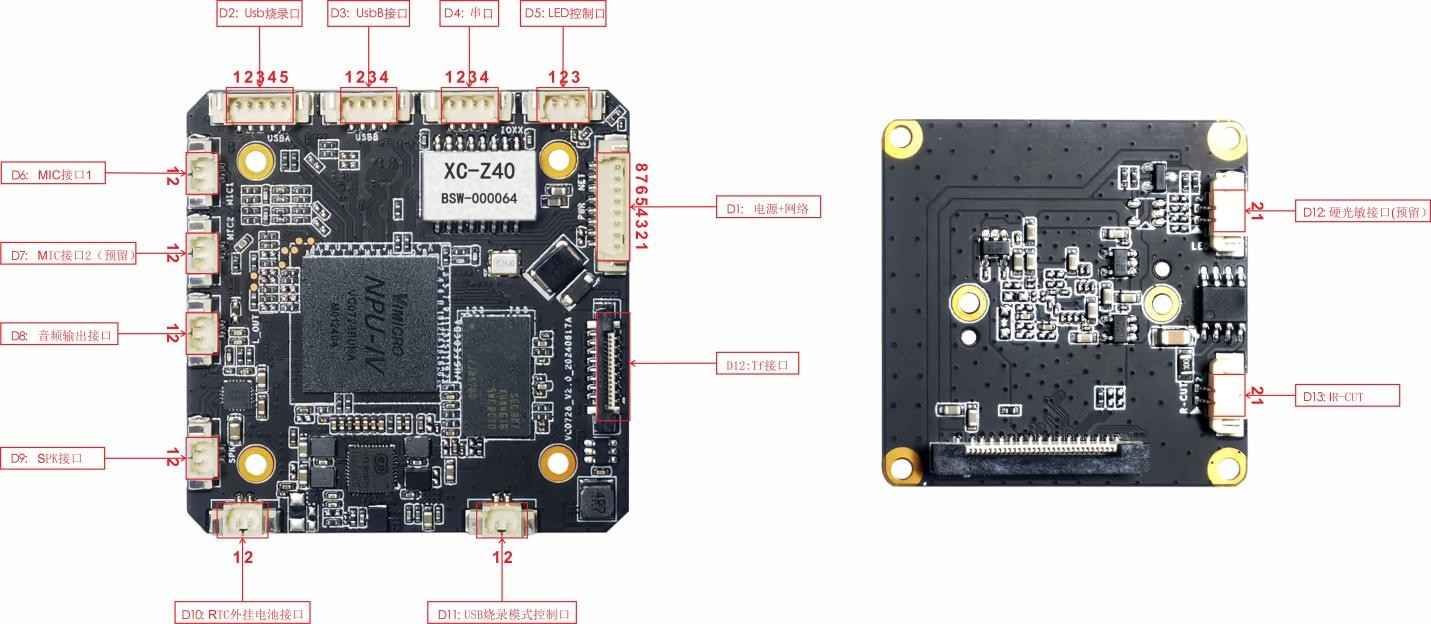

No. Pin definitionPin function
DC 12V+DC 12V input
GNDGround
RJ45_6Network receive differential signal RJ6
RJ45_3Network receive differential signal RJ3
RJ45_2Network transmit differential signal RJ2
RJ45_1Network transmit differential signal RJ1
RESETReset
LED+Network status indicator LED (positive)
1GND
3DP
4DM
DC12V+12V output
D3USBB
2DP
3DM
IO-EN(SPK)Control interface for SPK
2RX
D4Serial port
3TX
IRPWM interface (IR)
White lightPWM interface (white light)
MIC+Microphone +
D6Audio input
MIC-Microphone -
AUDIO_OUTAudio output
D8Audio output interface
AUDIO_GNDAudio ground
SPK+Speaker +
D9SPK interface
SPK-Speaker -
3.3V+Battery +
D10RTC external battery interface
GNDBattery -
1IO
USB flashing control portShort before power-on to enter USB flashing mode
2IO
616PIN FPC interface
IR-CUT control signalOutput
D13IR-CUT interface
CDS_INHardware light sensor interface (reserved)
D14CDS interface

Photos

  • front of ZX-Z60

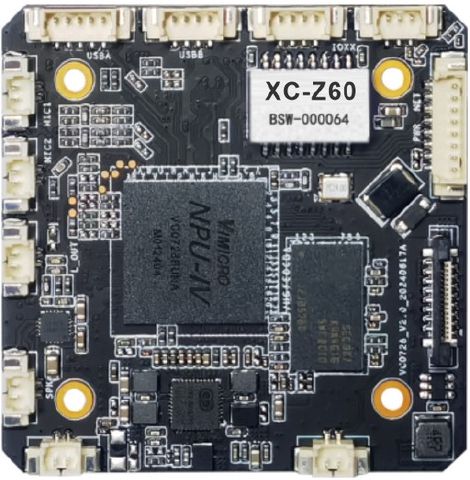

  • photo of ZX-Z60

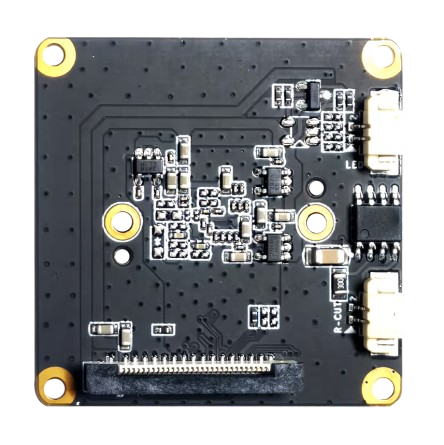

  • photo of ZX-Z60

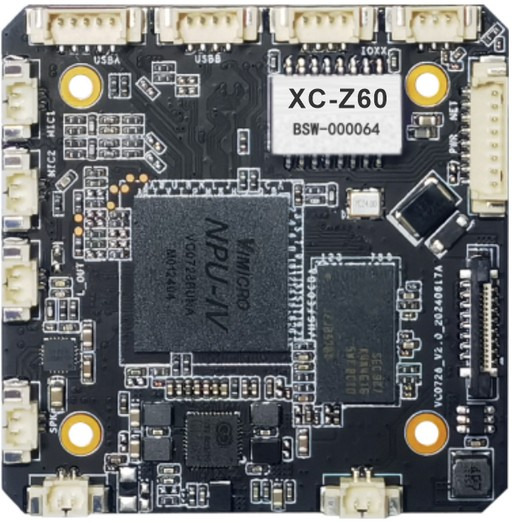

  • photo of ZX-Z60
