IPG-80H20PS-S

2.0M H.265 IP Camera Module · IP Camera Module

Maker:
Xiongmai
Sensor:
SC2235P
Device IDs:
00022520
Listed:
2018

cctvsp.ru

IP camera module IPG-80H20PS-S (Hi3516Cv300 + SC2235P)

2MP IP camera module. 1/2.9'' Smartsens SC2235P CMOS image Sensor, third-generation HiSilicon Hi3516Cv300 Professional HD IP Camera SoC with h265 support, resolution 1920x1080 at 25 fps.

Note: please be aware that this module uses a combined 8-pin connector; if your camera uses a different one, order the matching cable tail in addition.

Used in the main line of outdoor and indoor cameras; performs excellently when shooting daytime and night-time video.

The SC2235P sensor is developed by the Chinese company Smartsens and is positioned in the Starlights series. It makes it possible to get a colour picture at night. It is made to order for XM; unlike the SC2235 sensor, it has a resolution of 1920x1080, so the visible part of the die is reduced to 1/2.9'' (as opposed to 1936x1096 at 1/2.7'' for the SC2235). Its other characteristics, including sensitivity, are identical to the SC2235.

Specifications
Sensor1/2.9'' SmartSens SC2235P CMOS sensor
Resolution2Mp (1920x1080)
SensitivityDay 0.1 lux / night 0.01 lux (F1.2) / 0 lux with IR
SoCHiSilicon Hi3516Cv300 Professsional HD IP Camera SoC

Xiongmai

2.0M H.265 IP Camera Module

Features

  • 1080P HD resolution,clear and fine images
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support ONVIF;access third party
  • Support various mobile monitoring(iPhone,Android)
  • Provide web、CMS、center platform management software MYEYE,provide SDK development
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelIPG-80H20PS-S
System structureEmbedded RTOS,dual-core 32bit DSP( Hi3516CV300 ),pure hard compression ,watch dog
Sensor2.0M 1/2.9" CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2
Video compressionH.265++/H.265+/H.265/H.264 ,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image outputMain stream: 1920*1080@25fps,1280*720@25fps; sub-stream: 704*576@25fps;
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interfaceN/A
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/O1/0 (support alarm input and video link to background)
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisNo
Other functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W,
Dimension38mm*38mm
OtherSupport POE power supply (optional), not support any custom，The drive voltage of the light board is at 3.3V

Photos

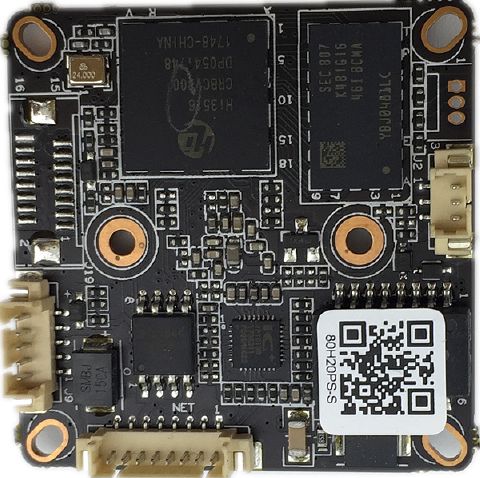

  • photo of IPG-80H20PS-S

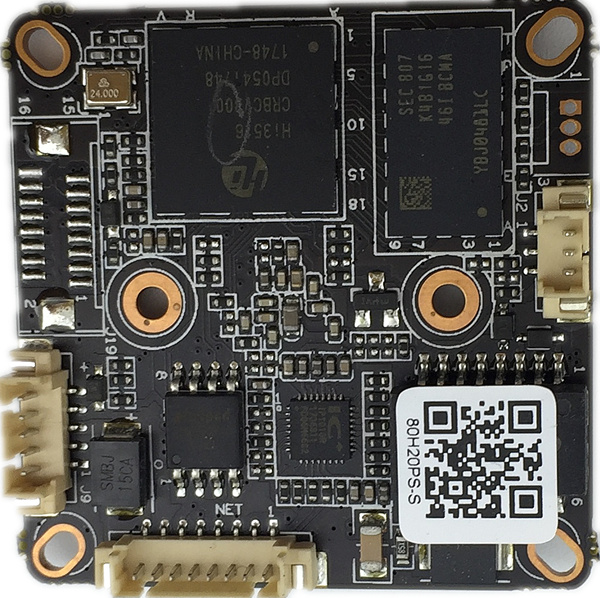

  • photo of IPG-80H20PS-S

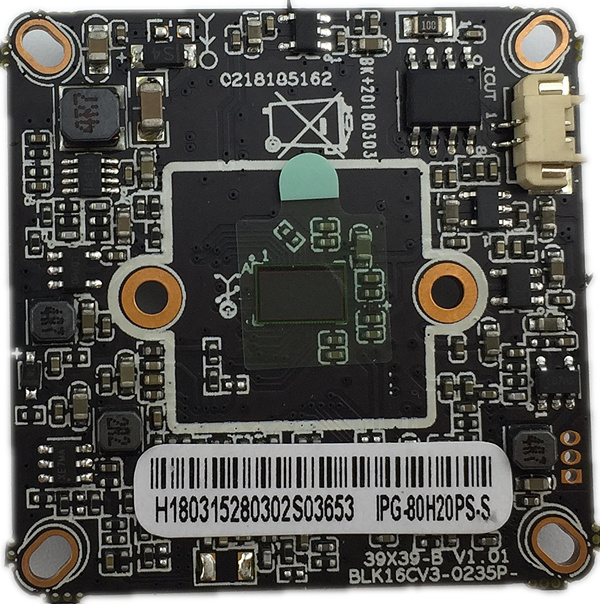

  • photo of IPG-80H20PS-S

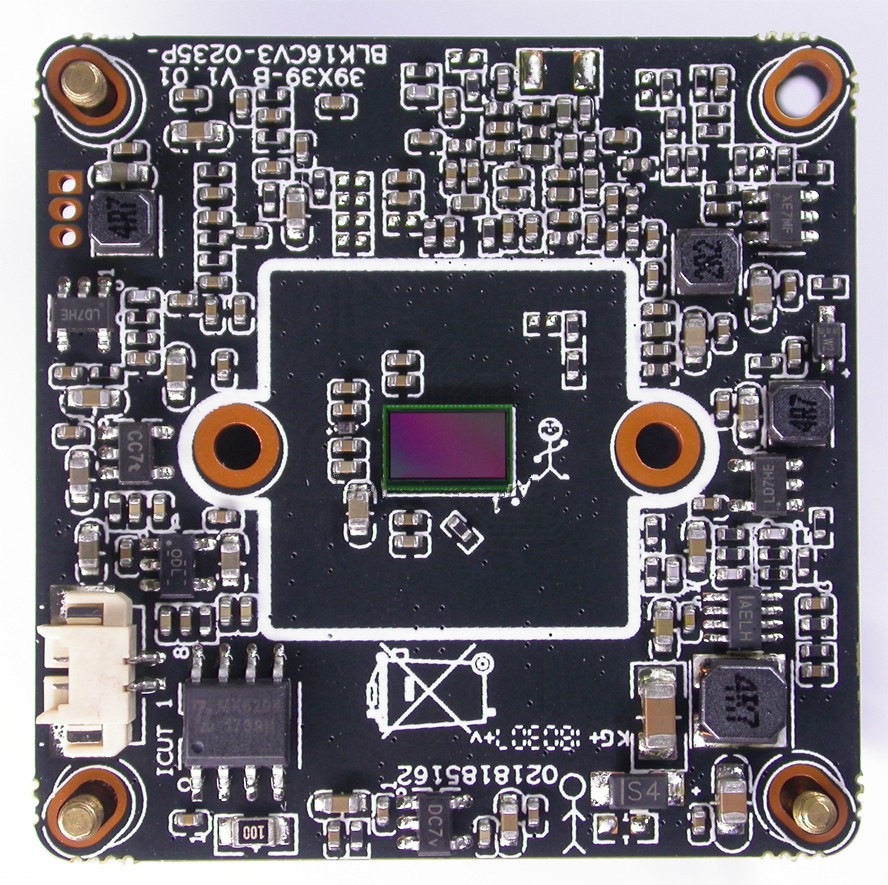

  • front of IPG-80H20PS-S
