IPG-80HE20PS-SL

2.0M Hi3516EV100 H.265 IP Camera Module · IP Camera Module

Maker:
Xiongmai
Sensor:
SC2235
Device IDs:
00035520
Listed:
2018

cctvsp.ru

IP camera module IPG-80HE20PS-SL (Hi3516Ev100 + SC2235)

2MP IP camera module. Sensor: 1/2.7'' SmartSens Tech. SC2235 third-generation CMOS sensor; the new HiSilicon Hi3516Ev100 HD IP Camera SoC with h265 support; resolution 1920x1080 at 20 frames per second (24fps with the secondary stream disabled). Used in outdoor and indoor mini cameras, baby monitors, video door phones and door peephole cameras. Performs excellently when shooting both daytime and night-time video. The SC2235 sensor is positioned in the StarLight category and has improved characteristics compared with the F22.

Unfortunately, this module has also been discontinued and is practically sold out at suppliers. No other modules of similar dimensions are being produced yet. An equivalent based on the Hi3516Ev200 SoC is expected.

Note: the module has an audio connector for two-way audio, meaning you can not only connect a microphone and listen, but also connect a speaker and play sounds from the camera.

Specifications
Sensor1/2.9'' SmartSens SC2235P CMOS sensor
Resolution2Mp (1920x1080)
SensitivityDay 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR
SoCHiSilicon Hi3516Ev100 V100 Professional HD IP Camera SoC

Xiongmai

2.0M Hi3516EV100 H.265 IP Camera Module

Features

  • 1080P HD resolution,clear and fine images,32mm*32mm
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support ONVIF;access third party
  • Support various mobile monitoring(iPhone,Android)
  • Provide web、CMS、center platform management software MYEYE,provide SDK development
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelIPG-80HE20PS-SL
System structureEmbedded RTOS,dual-core 32bit DSP(Hi3516EV100),pure hard compression ,watch dog
Sensor2.0M 1/2.9" CMOS sensor ,color 0.1Lux@F1.2,black/white 0.01Lux@F1.2
Video compressionH.265++/H.265+/H.265/H.264 ,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image outputMain stream: 1920*1080@20fps,1280*720@25fps; sub-stream: 704*576@25fps;
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interfaceN/A
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/ON/A
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisNo
Other functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W,
Dimension32mm*32mm
OtherSupport POE power supply (optional), not support any custom，The drive voltage of the light board is at 3.3V

Photos

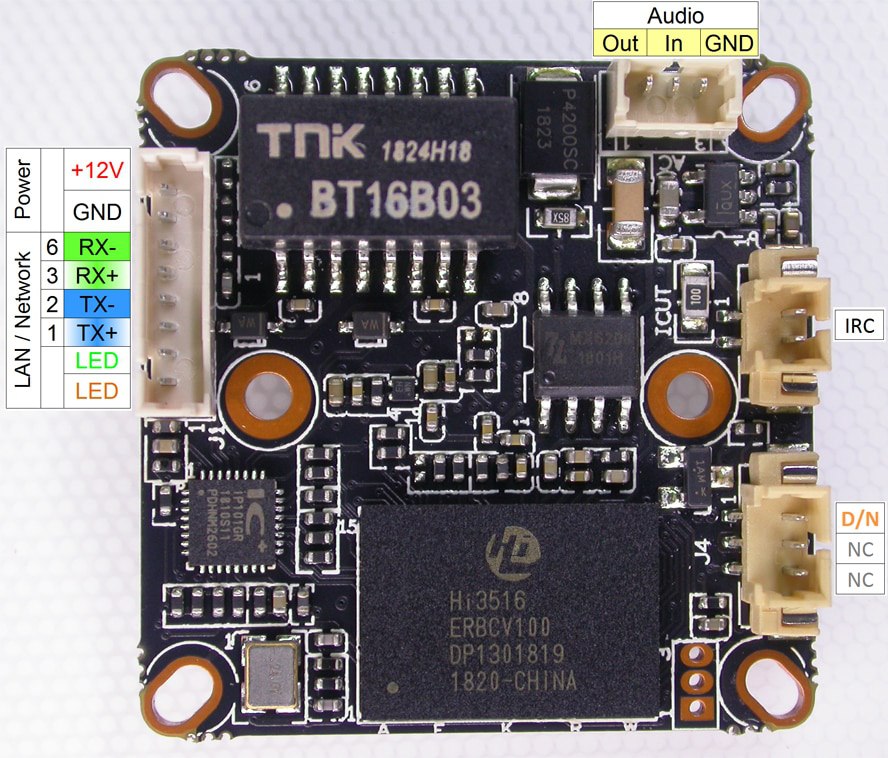

  • photo of IPG-80HE20PS-SL
  • front of IPG-80HE20PS-SL
