IPG-83HE20PY-S

2.0M Low illumination H.265 IP Camera Module · IP Camera Module

Maker:
Xiongmai
Sensor:
IMX323
Device IDs:
00035520
Listed:
2018

cctvsp.ru

IP camera module IPG-83HE20PY-S (Hi3516Ev100 + IMX323)

2MP IP camera module. Sensor: 1/2.9'' Sony IMX323 CMOS image sensor; SoC: HiSilicon Hi3516Ev100 HD IP Camera SoC with h265 support; resolution 1920x1080 at 20 frames per second (24fps with the secondary stream disabled).

Note: there is a similar module with WiFi and SD expansion support, the IPG-HP201NY-A, with the same sensor and SoC.

Used in outdoor and indoor cameras; performs excellently when shooting both daytime and night-time video.

The IMX323 is a budget sensor from the Japanese company Sony Semiconductor. In picture quality it is slightly inferior to its predecessor, the IMX322 (already a classic), but it still outperforms most Chinese sensors. In this module the manufacturer fixed the gain control algorithm and thereby rehabilitated the sensor, which showed better results than in modules based on the Hi3516Cv300 SoC.

The manufacturer states that the module supports two-way audio and an alarm input.

Specifications
Sensor1/2.9'' Sony IMX323 CMOS Sensor
Resolution2Mp (1920x1080)
SensitivityDay 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR
SoCHiSilicon Hi3516Ev100 V100 Professional HD IP Camera SoC

Xiongmai

2.0M Low illumination H.265 IP Camera Module

Features

  • 1080P HD low illumination resolution,clear and fine images
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support ONVIF;access third party
  • Support various mobile monitoring(iPhone,Android)
  • Provide web、CMS、center platform management software MYEYE,provide SDK development
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelIPG-83HE20PY-S
System structureEmbedded RTOS,dual-core 32bit DSP(Hi3516EV100),pure hard compression ,watch dog
Sensor2.0M 1/2.9" IMX323 low illumination CMOS sensor,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2
Video compressionH.265++/H.265+/H.265/H.264 ,support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image outputMain stream: 1920*1080@20fps,1280*720@25fps; sub-stream: 704*576@25fps;
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interfaceN/A
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/O1/0 (support alarm input and video link to background)
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisNo
Other functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W,
Dimension38mm*38mm
OtherSupport POE power supply (optional), not support any custom，The drive voltage of the light board is at 3.3V

Photos

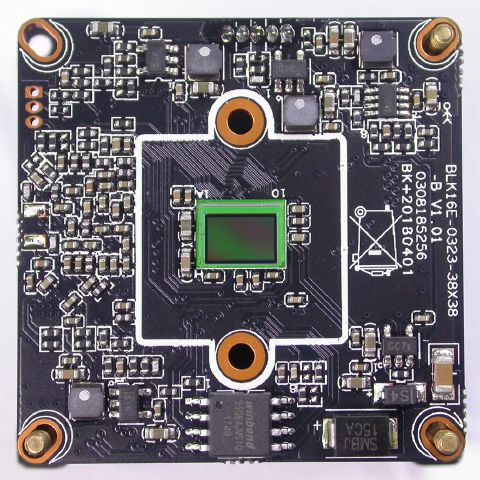

  • photo of IPG-83HE20PY-S

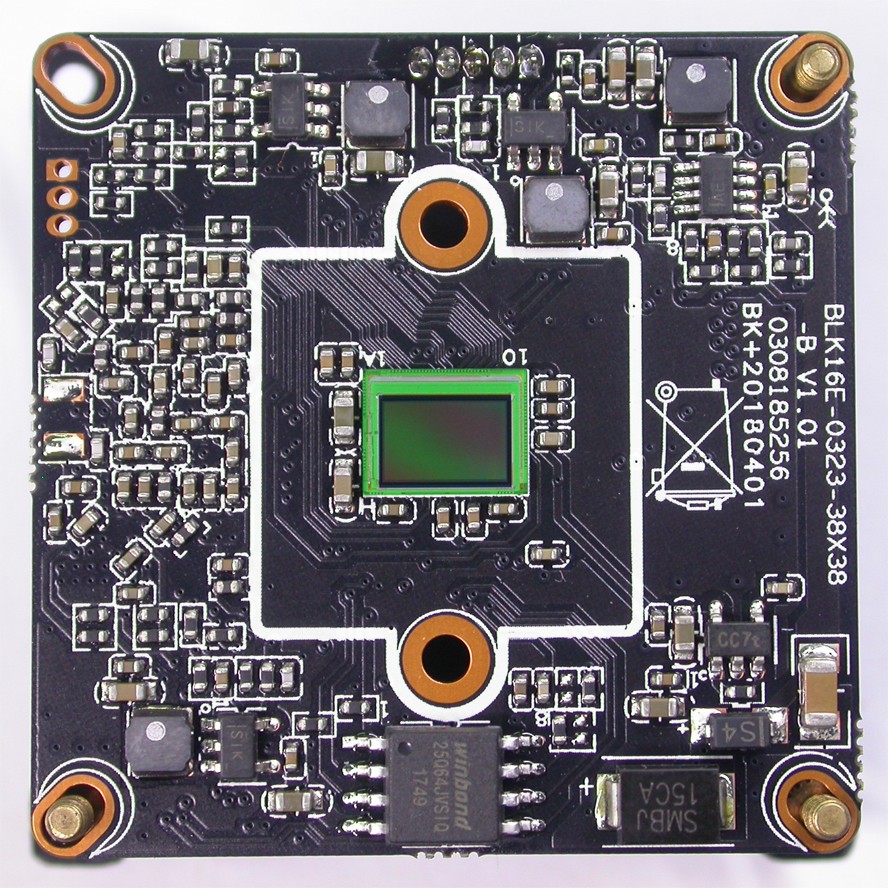

  • front of IPG-83HE20PY-S
