IPG-HP201NY-A

2.0M low illumination H.265 IP Module · IP Camera Module

Maker:
Xiongmai
Sensor:
IMX323
Device IDs:
00040520
Listed:
2018

cctvsp.ru

IP camera module IPG-HP201NY-A (Hi3516Ev100 + IMX323)

2MP IP camera module. Sensor: 1/2.9'' Sony IMX323 CMOS image sensor; SoC: HiSilicon Hi3516Ev100 HD IP Camera SoC with h265 support; resolution 1920x1080 at 20 frames per second (24fps with the secondary stream disabled).

The module has a twin, the IPG-83HE20PY-S, with the same SoC and sensor but in a single-board design and without expansion board support.

Used in outdoor and indoor cameras; performs excellently when shooting both daytime and night-time video.

The IMX323 is a budget sensor from the Japanese company Sony Semiconductor. In picture quality it is slightly inferior to its predecessor, the IMX322 (already a classic), but it still outperforms most Chinese sensors.

The manufacturer states that the module supports two-way audio, an alarm input, and an expansion board with a MicroSD card and WiFi module (this feature is currently absent from the firmware but is expected soon).

Specifications
Sensor1/2.9'' Sony IMX323 CMOS Sensor
Resolution2Mp (1920x1080)
SensitivityDay 0.1 lux / night 0.01 lux (F1.2) / 0 lux with IR
SoCHiSilicon Hi3516Ev100 V100 Professional HD IP Camera SoC

Xiongmai

2.0M low illumination H.265 IP Module

Features

  • 2.0M low illumination HD resolution,clear and fine images
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5
  • Support ONVIF ,access third party
  • Support various mobile monitoring(iPhone,Android)
  • Provide web、CMS、center platform management software MYEYE,provide SDK development
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelIPG-HP201NY-A
System structureEmbedded RTOS, dual-core 32-bit DSP (Hi3516EV100),pure hard compression ,watch dog
Sensor2.0M 1/2.9" IMX323 low illumination CMOS sensor,color 0.01Lux@F1.2,black/white 0.001Lux@F1.2
Video compressionH.265++/H.265+/H.265/H.264 support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image outputMain stream: 1920*1080@20fps,1280*720@25fps; sub-stream: 704*576@25fps;
Shutter1/50(1/60)s to 1/10,000s
LensN/A
Day and nightSupport IR-CUT
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc
Extension interface1*USB,support WIFI/3G,support SD；1ch Alarm output；reset key；1ch Alarm input or LED panel；RTC battery
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/O1/0 (support alarm input and video link to background)
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing
Intelligence analysisN/A
Other functionSupport OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK;
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W
Dimension38mm*38mm
OtherDoes not accept any custom.

Photos

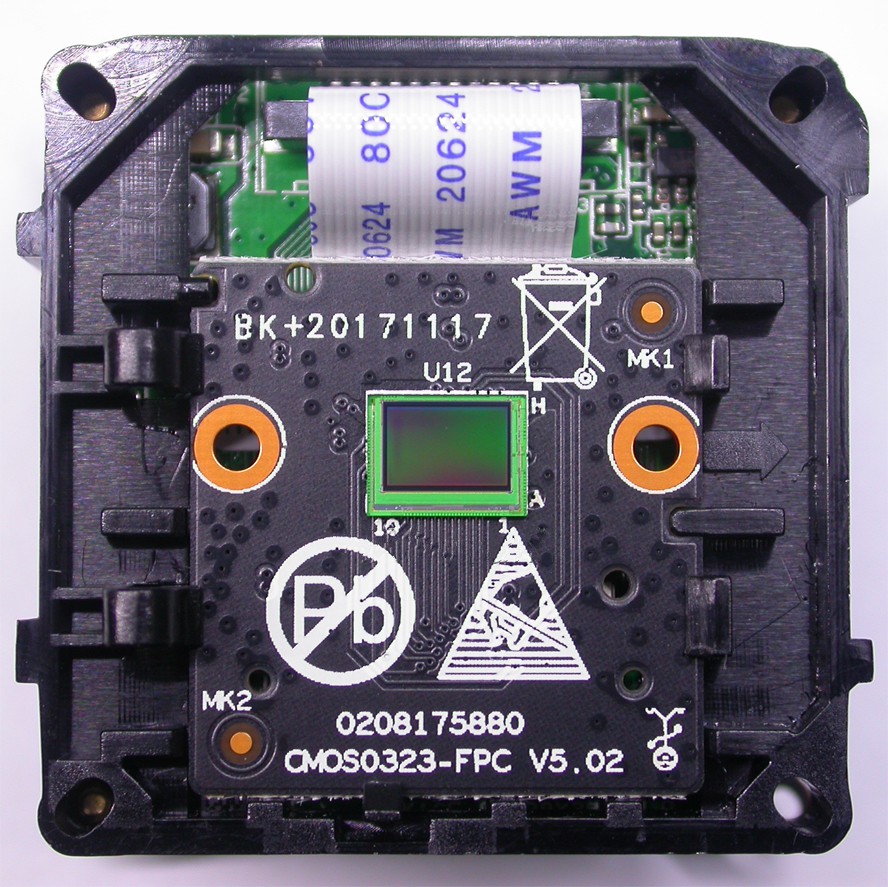

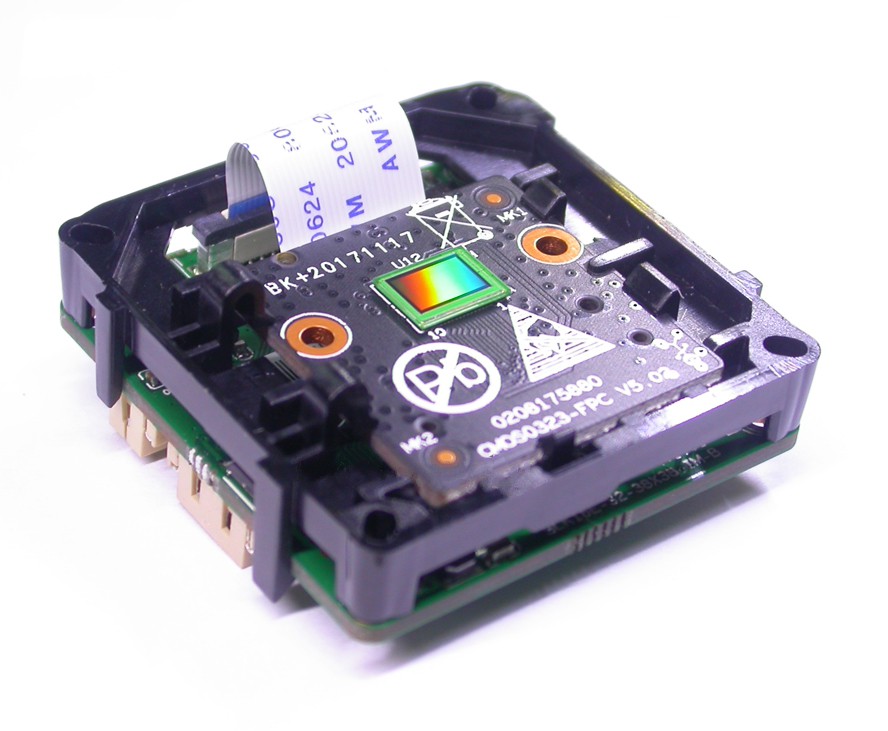

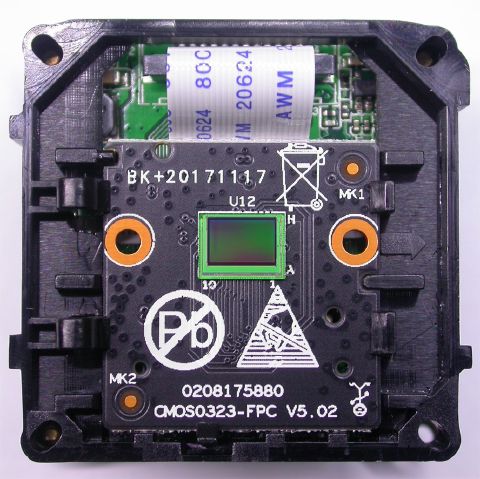

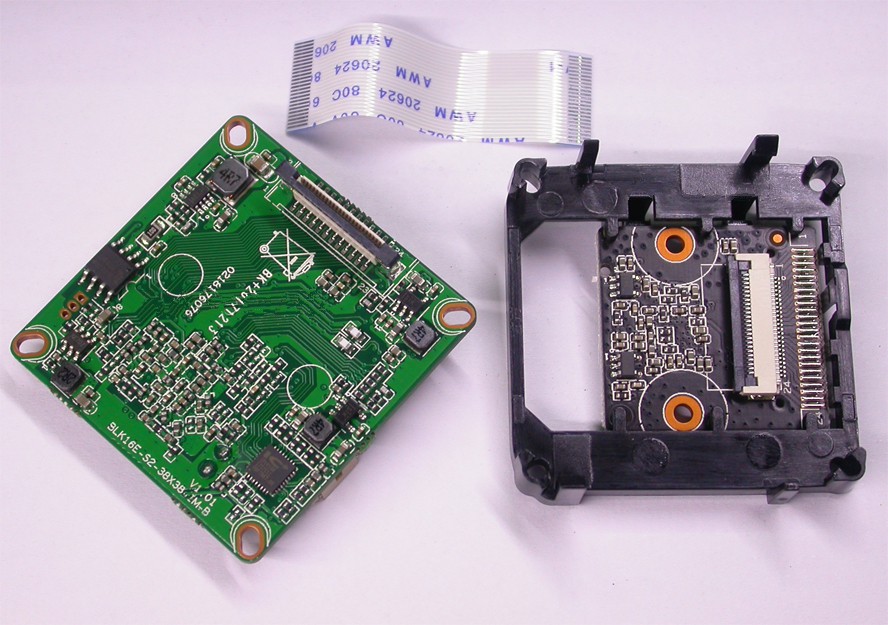

  • photo of IPG-HP201NY-A
  • photo of IPG-HP201NY-A
  • photo of IPG-HP201NY-A
  • front of IPG-HP201NY-A
