IVG-85HF20PYA-S

2.0M Black light illumination H.265 AI IP Camera Module · IP Camera Module

Maker:
Xiongmai
Sensor:
IMX307
Device IDs:
000559A7
Listed:
2019

cctvsp.ru

IP camera module IVG-85HF20PYA-S (Hi3516Ev200 + IMX307)

A 2MP IP camera module based on the 1/2.8'' Sony IMX307 sensor and a new SoC from Hisilicon, the Hi3516Ev200, with h265 support, at 1920x1080 25 frames per second (real-time FullHD). It is used in outdoor and indoor cameras and performs excellently for both day and night video. The Sony IMX307 sensor has proven itself very well and is now widely used in many Xiongmai products, and the Hi3516Ev200 SoC not only lowered the final cost of the product but also improved its performance by reaching 25fps (realtime) compared with its predecessor (20fps with the Hi3516Ev100).

Note: because of a shortage of "green" sensors, the manufacturer switched to a different revision of the sensor. The new module is called IVG-85HF20PY-S; it is built on the same SoC but has a different modification of the sensor, the Sony IMX307LQR (110 pin LGA).

The module replaced the IPG-85HE20PYA-S; it uses the same 2MP Sony IMX307 sensor, but the SoC was replaced with a more powerful one, the Hi3516Ev200, which made 25fps (realtime) possible.

Specifications
Sensor1/2.8'' Sony Starvis IMX307 Back-Illuminated CMOS image Sensor
Resolution2Mp (1920x1080)
SensitivityDay 0.01 lux / night 0.001 lux (F1.2) / 0 lux with IR
SoCHiSilicon Hi3516E V200 Economical HD IP Camera SoC

Xiongmai

2.0M Black light illumination H.265 AI IP Camera Module

Features

  • 1080P HD resolution,Black light illumination,clear and fine images
  • Support 2D/3D noise reduction,digital wide dynamic
  • Advanced H.265AI/H.265+ (Compatible with H.265/H.264) video compression,Super low rate,high definition quality of image
  • Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
  • Support ONVIF;access third party
  • Support various mobile monitoring(iPhone,Android)
  • Provide web、CMS、center platform management software MYEYE,provide SDK development
  • Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed
Specifications
ModelIVG-85HF20PYA-S
System structureEmbedded RTOS,dual-core 32bit DSP(Hi3516EV200),pure hard compression ,watch dog
Sensor2.0M 1/2.8" IMX307 Black light illumination CMOS sensor,color 0.0001Lux@F1.2,black/white 0.0001Lux@F1.2
Video compressionH.265AI/H.265+ (Compatible with H.265/H.264),support dual stream,AVI;0.1M~8Mpbs variable;1~30f/s variable
Image outputMain stream: 1920*1080@25fps,1280*720@25fps; sub-stream: 704*576@25fps
Shutter1/50(1/60)s to 1/10,000s
LensNo
Day and nightSupport IR-CUT，IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reductionSupport 2D/3D
Wide dynamicSupport digital
Auto irisN/A
Audio compressionG.711,support bidrectional talk,audio&video synchronization
Audio interface1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone
Network interface1*RJ45 10/100M adaptive Ethernet port;support RTSP/FTP/DHCP/NTP/UPnP etc
Extension interfaceN/A
Singal interfaceOne photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR
PTZN/A
Motor interfaceN/A
Alarm I/O1/0 (support alarm input and video link to background)
WIFI interfaceN/A
Reset interfaceN/A
SD CardN/A
ReliabilityComprehensive lightning protection, 7 * 24 hours-10℃～65℃ high temperature stable and reliable testing
Intelligence analysisSupporting human detection, face detection, and supports intelligent functions such as customized number statistics, etc.
Other functionSupport WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture；united remote client monitoring sofaware、MYEYE;perfect SDK
ONVIFSupport
Mobile monitoringSupport multiple mobile monitoring（iOS，Android）
PowerDC12V/2A input, power consumption:≤3W,
Dimension38mm*38mm
OtherSupport POE power supply (optional)，The drive voltage of the light board is at 3.3V

Photos

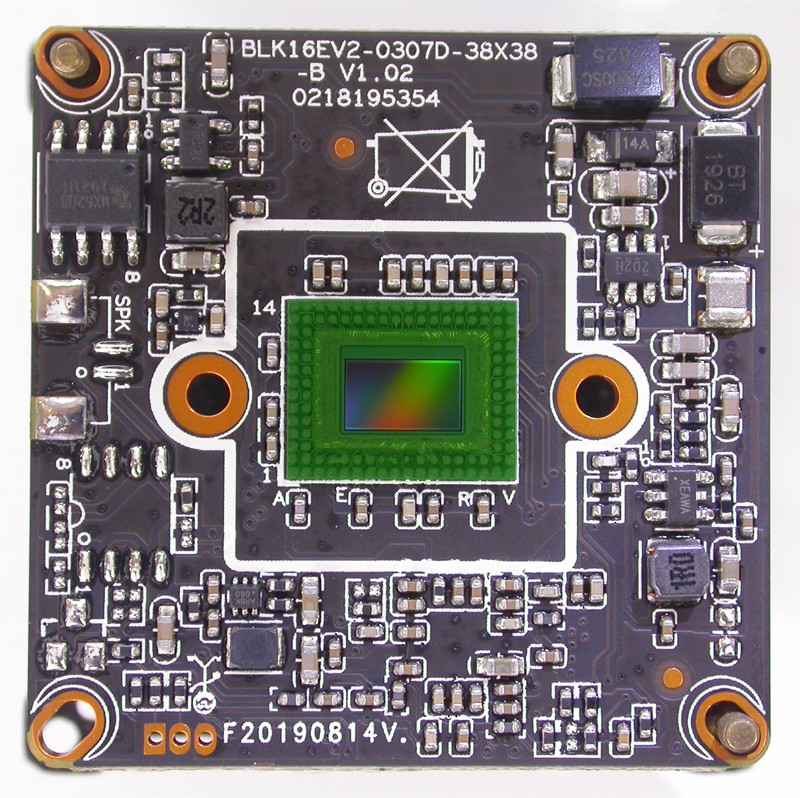

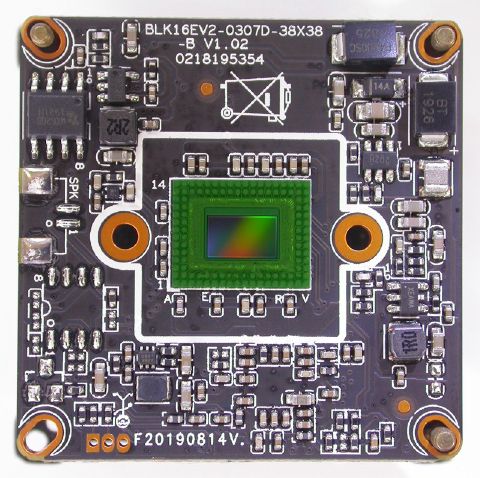

  • photo of IVG-85HF20PYA-S

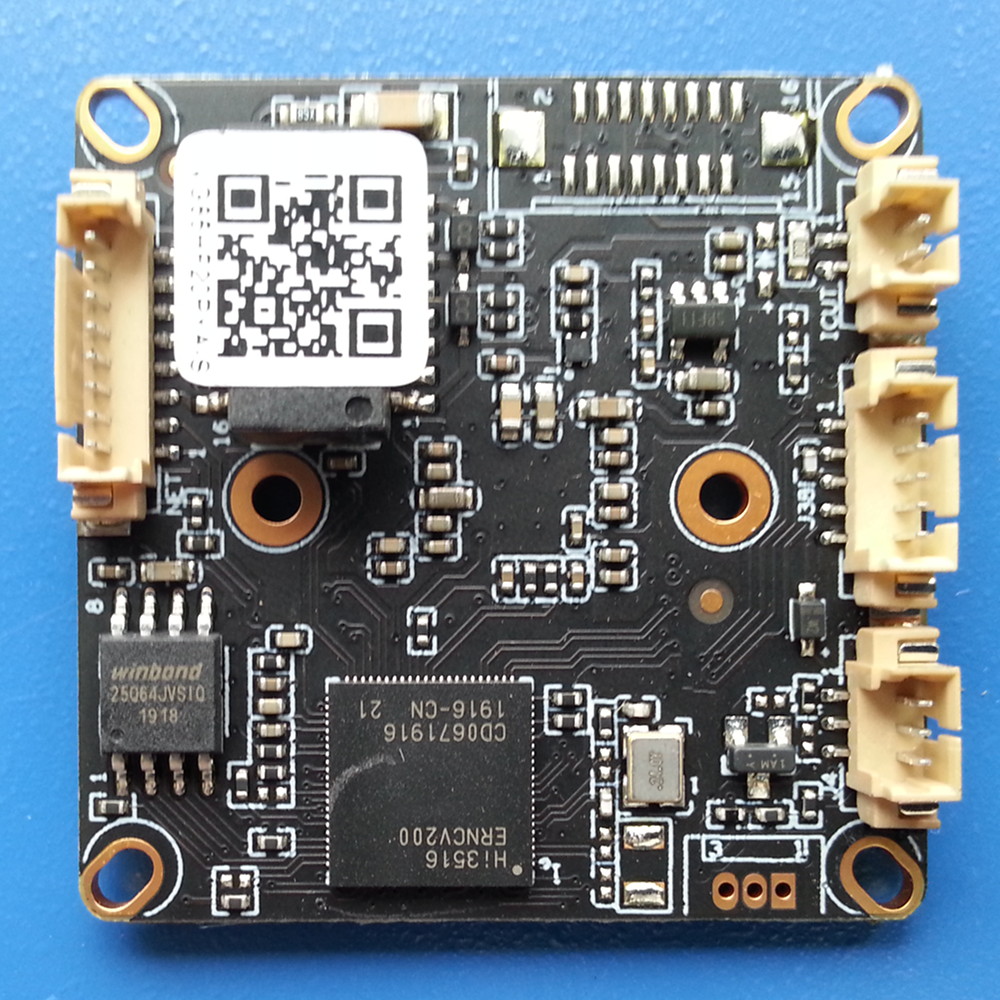

  • photo of IVG-85HF20PYA-S
  • photo of IVG-85HF20PYA-S

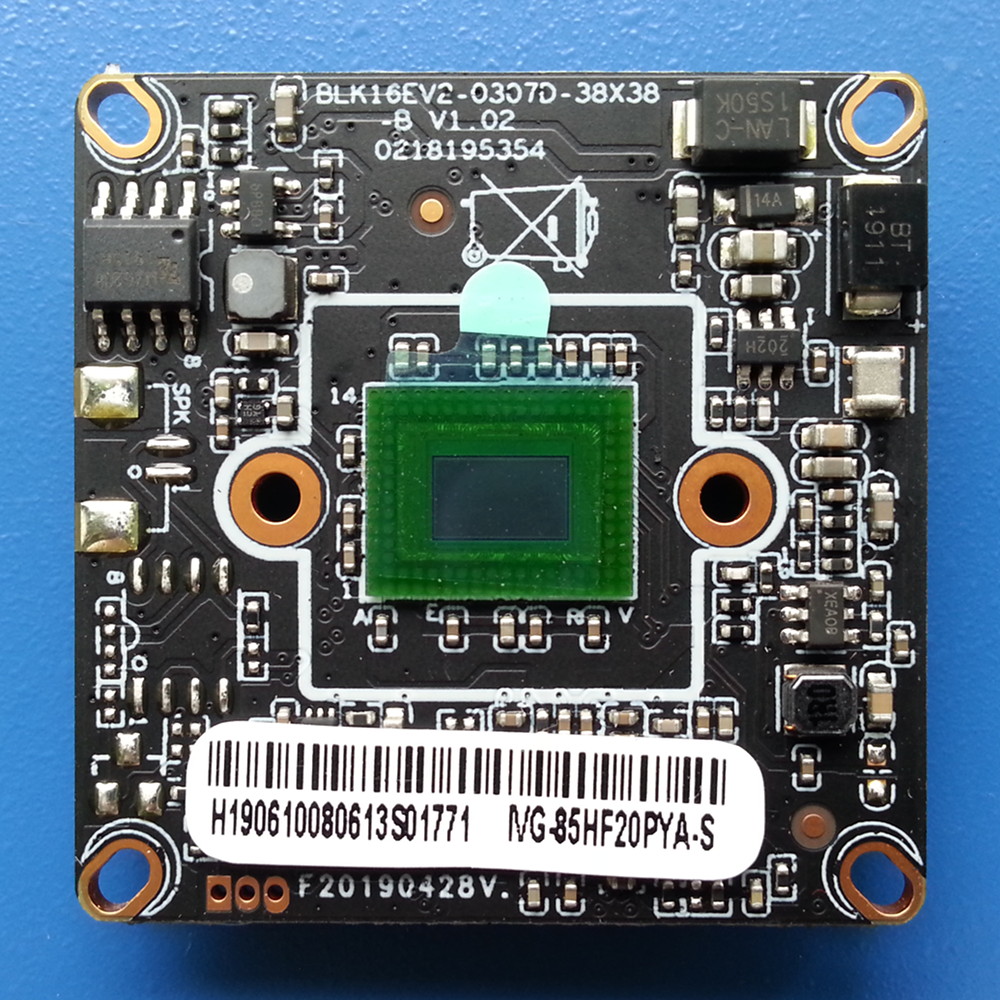

  • front of IVG-85HF20PYA-S
