IP camera module IPG-83H20PY-S (Hi3516Cv300 + IMX323)
2MP IP camera module. Sensor: 1/2.9'' Sony IMX323 CMOS image sensor; SoC: HiSilicon Hi3516Cv300, a third-generation Professional HD IP Camera SoC with support for h265 and video analytics; resolution 1920x1080 at 25 frames per second.
Note: this module replaced the 53H20PL-AE; there is also a cheaper alternative, the two-board IVG-HP200S-AE with the 2MP SC2235 sensor, or the single-board IPG-80H20PT-S with the F22 sensor. Both are built on the same Hi3516Cv300 SoC.
The module has a twin, the IPG-83HE20PY-S, with the same SoC and sensor but in a single-board design and without expansion board support.
Video analytics support means the camera reacts to specific events: an observed object crossing a virtual line (corridor mode), or an object entering or leaving a defined area (monitoring goods, detecting illegal parking, etc.).
Used in mid-range and premium outdoor and indoor cameras; performs excellently when shooting both daytime and night-time video.
The IMX323 is a budget sensor from the Japanese company Sony Semiconductor. In picture quality it is slightly inferior to its predecessor, the IMX322 (already a classic), but it still outperforms most Chinese sensors.
The manufacturer states that the module supports two-way audio, an alarm input, and an expansion board with a MicroSD card and WiFi module.
| Sensor | 1/2.9'' Sony IMX323 CMOS Sensor |
|---|---|
| Resolution | 2Mp (1920x1080) |
| Sensitivity | Day 0.1 lux / night 0.01 lux (F1.2) / 0 lux with IR |
| SoC | HiSilicon Hi3516Cv300 Professsional HD IP Camera SoC |

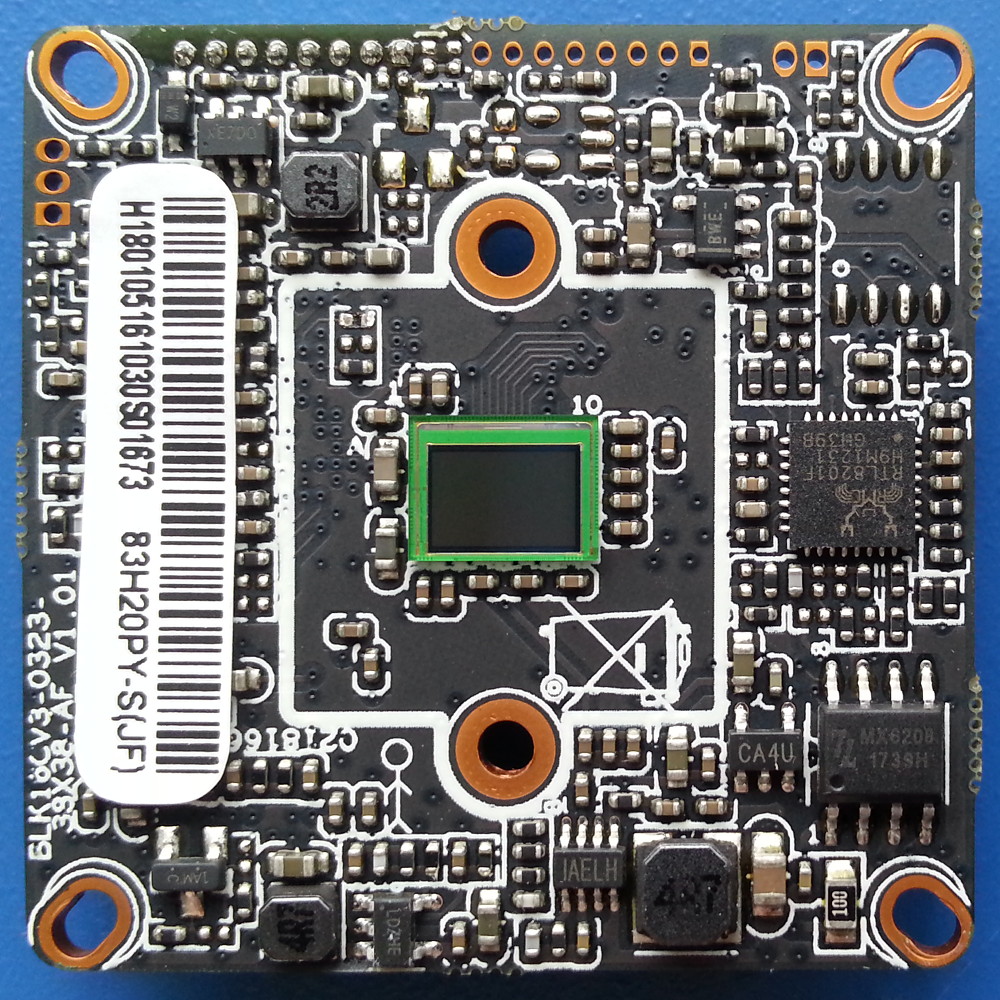

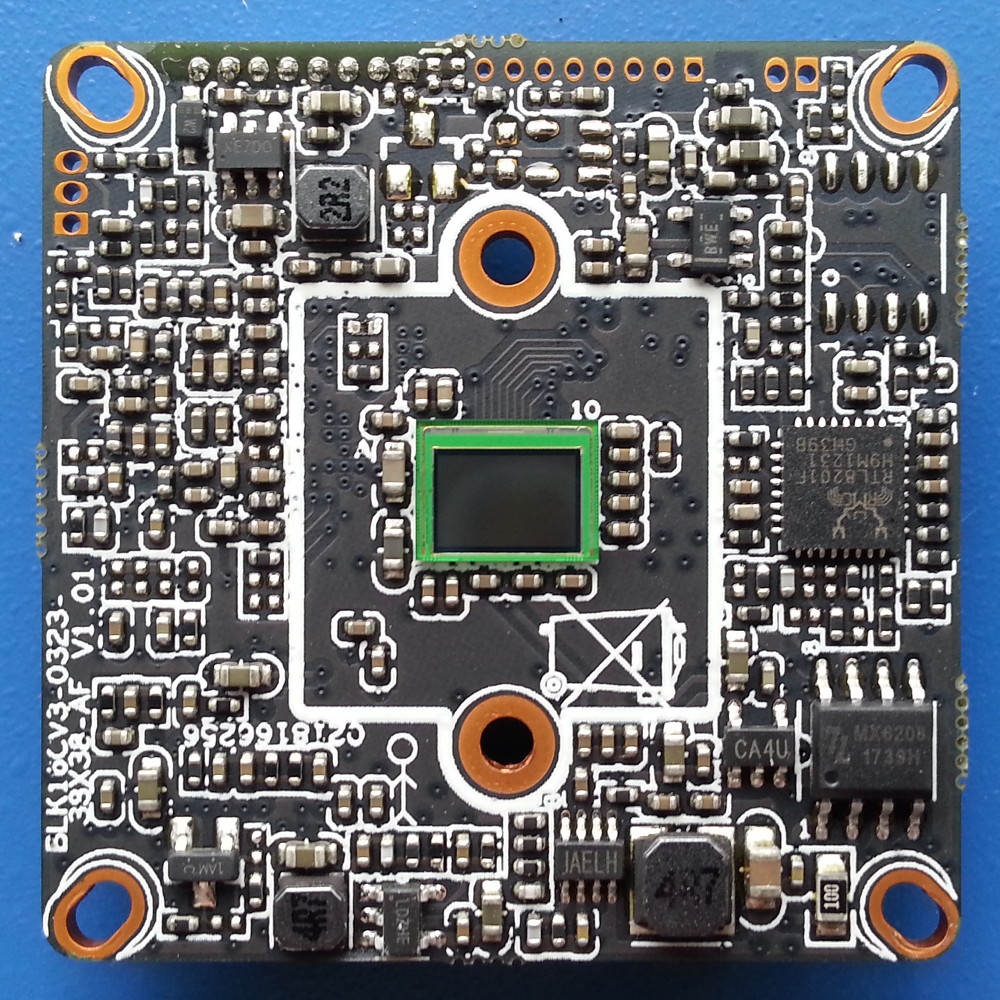

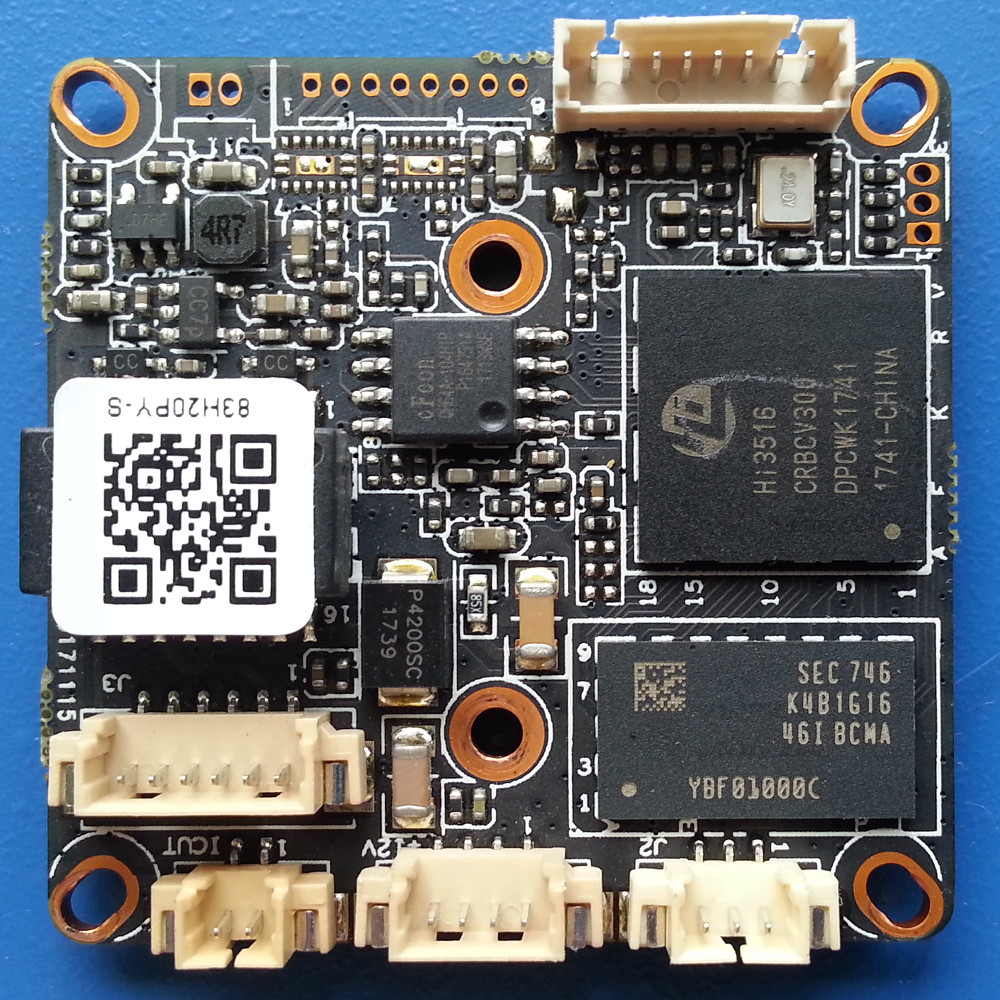

Photos
Files

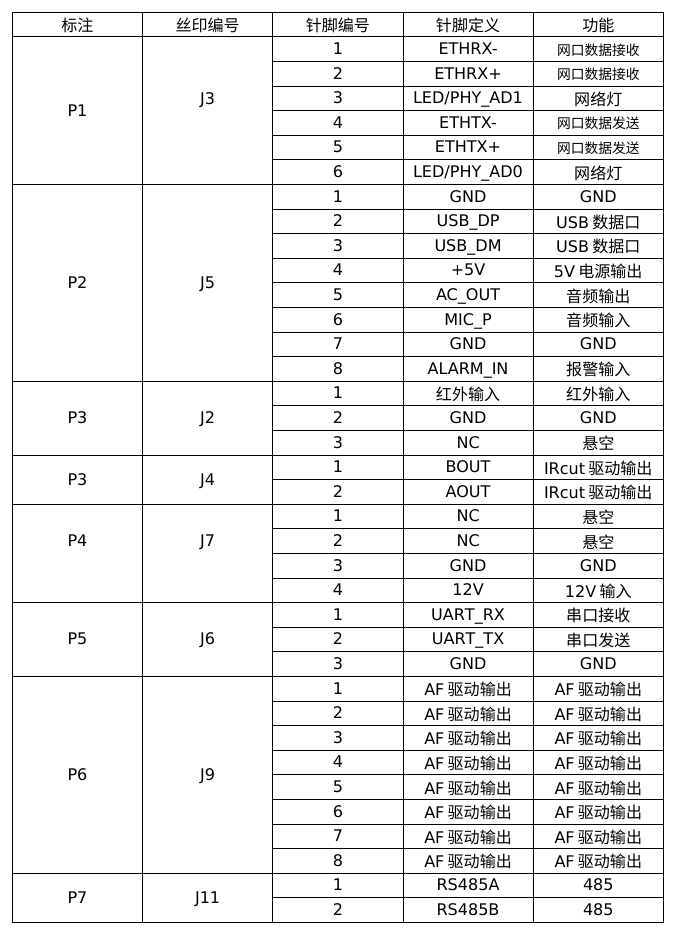

- IPG-83H20PY-S-pinout-1.png (pinout, 116 KB)
- IPG-83H20PY-S-interface-zh.docx (document, 162 KB)
- IPG-83H20PY-S-interface-zh.pdf (document, 173 KB)
